ST STM32H743I-EVAL - microSD Connector CN13

DocID030511 Rev 1 37/69
UM2198 Connectors
68
9.11 microSD connector CN13

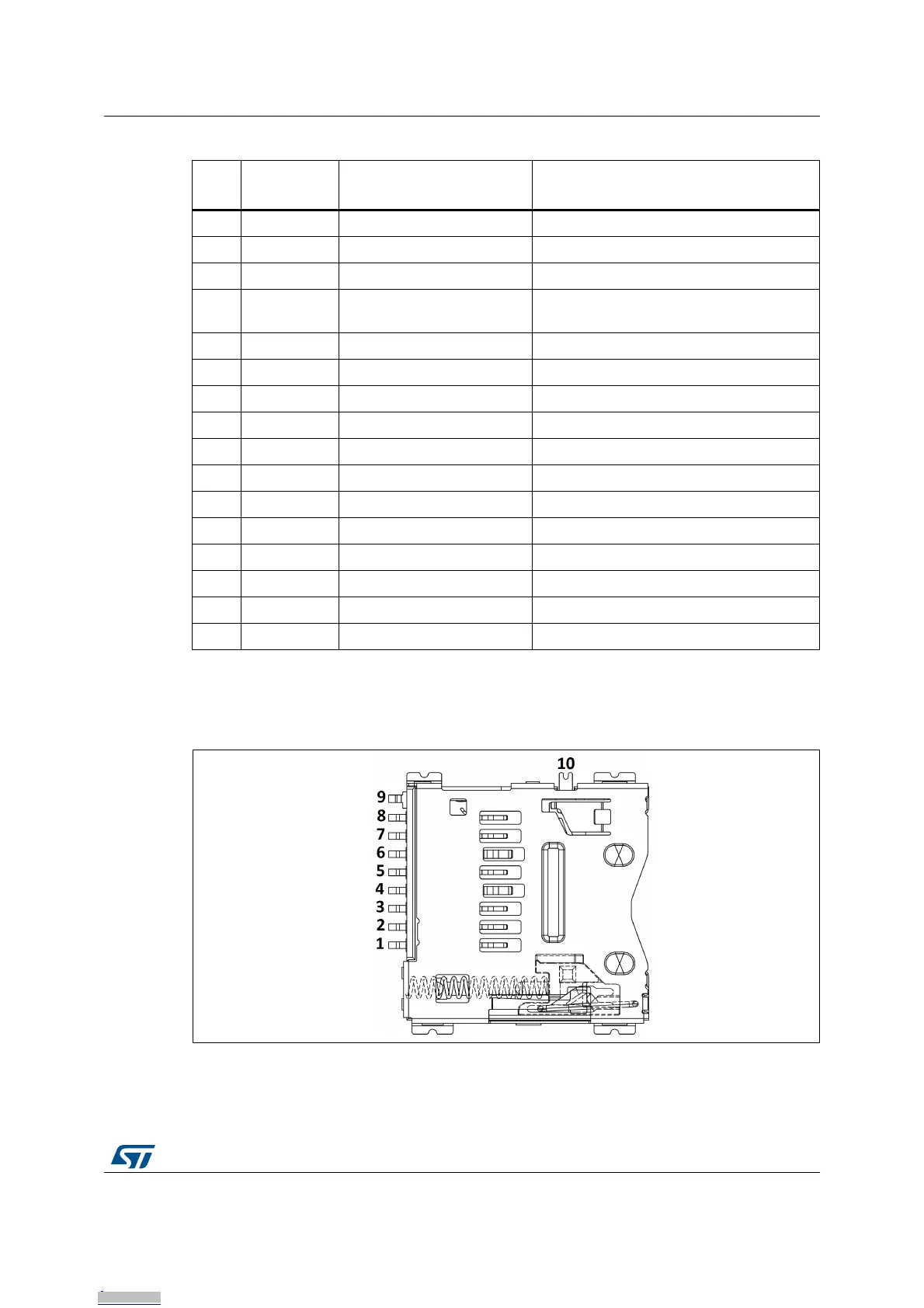

Figure 15. microSD connector (top view)
10 GND - -
12 PF1 A1 -
14 PF0 A0 -
16 PE2
A23/PDM1_CK1/
SAI1_MCLK_A /TRACECLK
Open SB11, SB15, SB57
18 PI7 D29 -
20 PI9 D30 -
22 PI6 D28 -
24 PD7 NE1 -
26 PD5 NWE -
28 PD4 NOE -
30 GND - -
32 PD1 D3 -
34 PI3 D27 -
36 PH15 D23 -
38 PH14 D22 -
40 +3.3V - -
Table 26. Memory connector CN12 (continued)
Pin Description Alternative function
How to disconnect with function block on
STM32H743I-EVAL board
