6.3.3 Internal pull-up and pull-down on JTAG pins
The devices embed internal pull-ups and pull-downs to guarantee a correct JTAG behavior.
The following pins are consequently not left floating during reset and they are configured as
follows until the user software takes control of them:
• NJTRST: internal pull-up.
• JTDI: internal pull-up.
• JTMS/SWDIO: internal pull-up.
• TCK/SWCLK: internal pull-down.
If these I/Os are externally connected to a different volt
age, leakage current will flow during
and after reset, until they are reconfigured by software. Special care must be taken with the
TCK/SWCLK pin, which is directly connected to the clock of some of these flip-flops, since it
should not toggle before JTAG I/O is released by the user software.”
6.3.4 SWJ debug port connection with standard JTAG connector
Figure 16 shows the connection between STM32H74xI/G and STM32H75xI/G devices and
a standard JTAG connector.

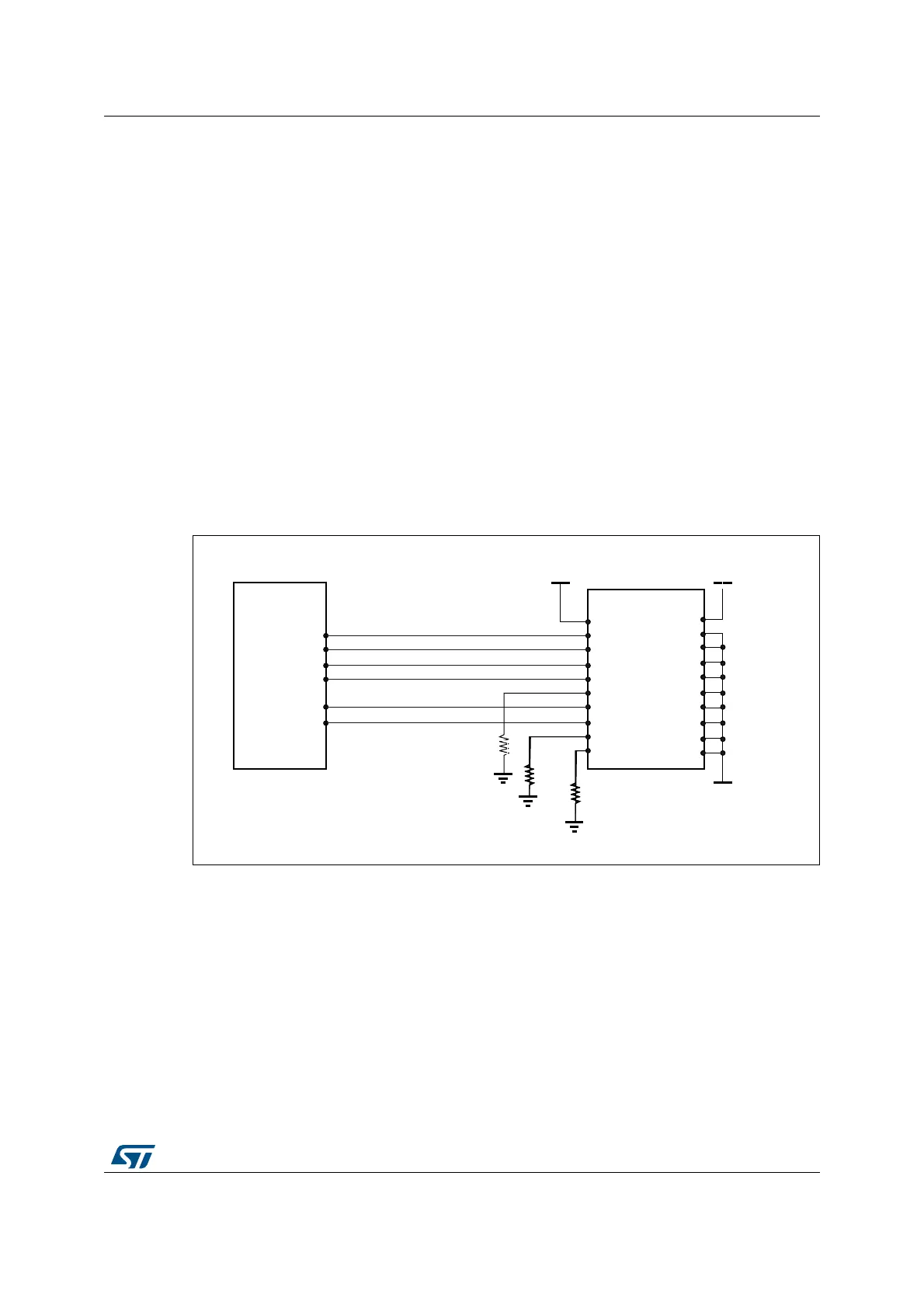

Figure 16. JTAG connector implementation
06Y9
9
''
670+
Q-7567
-7',
-6706:',2
-7&.6:&/.
-7'2
Q567,1
975()
Q7567
7',
706
7&.
57&.
7'2
Q6567
'%*54
'%*$&.
N
N
N
&RQQHFWRU[
-7$*FRQQHFWRU&1
