ST X-NUCLEO-53L8A1 Getting Started

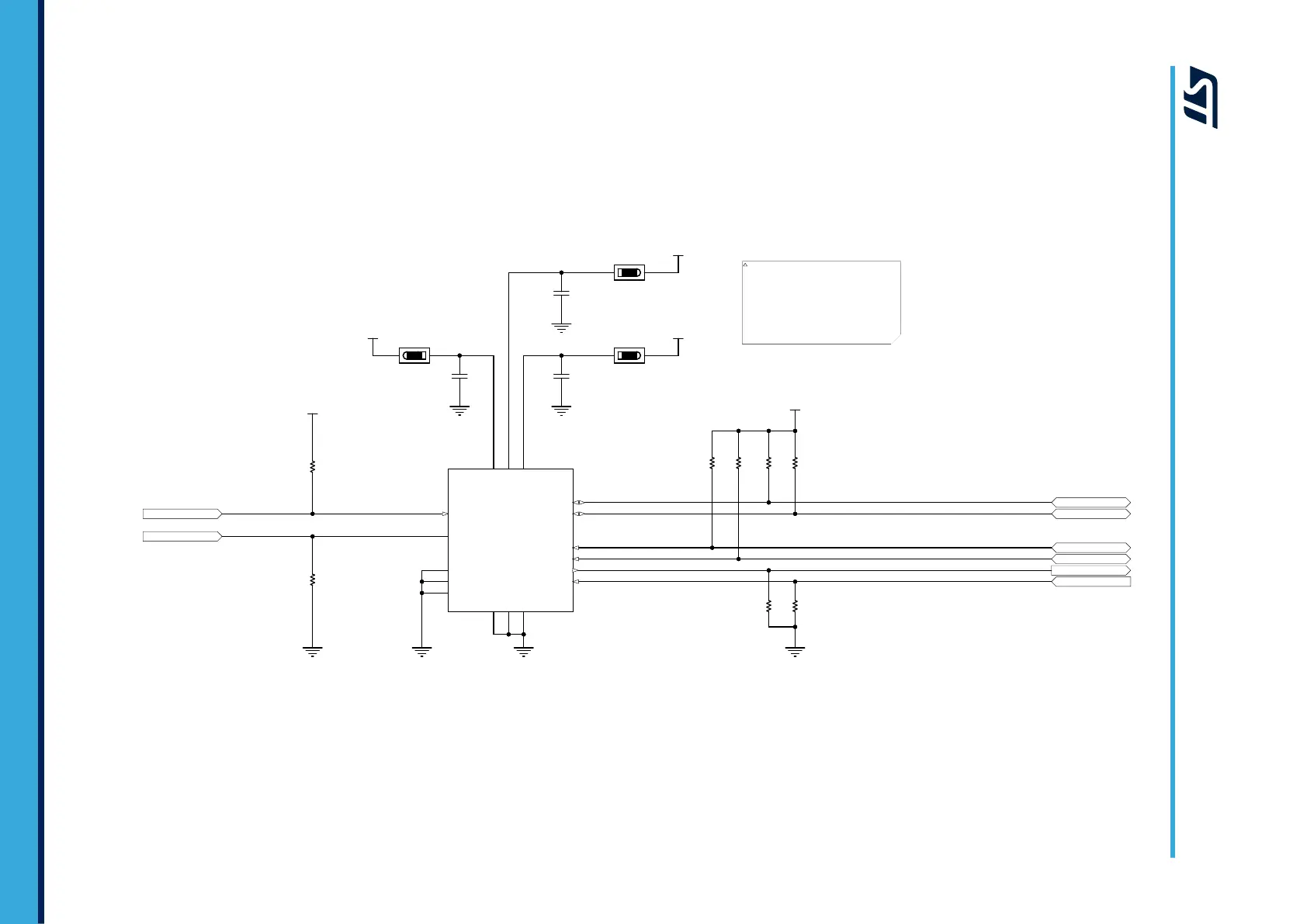

Figure 13. X-NUCLEO-53L8A1 circuit schematic (4 of 5)
AVDD
1%
R4
47k
1%
R5
47k
1%
R2
2.2k
1%
R3
2.2k
J3
J3[1-2]
J2
J2[1-2]
1%
R6
47k
IOVDD
1%
R14
47k
1%
R16
47k
1%
R17
47k
GPIO1
GPIO2
MCLK_SCL
MOSI_SDA
MISO
NCS
IOVDD
LPn
SPI_I2C_N
IOVDD
J1
J1[1-2]
SENSOR
CORE_1V8_S
IOVDD
IOVDD_SAVDD_S
10V
C7
4.7uF
50V
C21
100nF
50V
C8
100nF
SPI_I2C_N LOW: I2C MODE
SPI_I2C_N HIGH: SPI MODE
GPIO1: Open drain Interrupt Output
GPIO2: Open drain output/SYNC input
GND
C3
GND
C6
GND
A7
GND
A6
MOSI/SDA
A4
MISO
C5
GND
C7
AVDD
C4
CORE_1V8
B7
GPIO1
A1
GPIO2
B1
LPn
A2
IOVDD
A3
MCLK/SCL
A5
NCS
C2
SPI_I2C_N
C1
THERM
B4
U4
VL53L8CA
NOTE
AVDD = 3V3 +/- 5%
CORE_1V8 = 1V8 +/- 10%
IOVDD = 1V8 +/- 10%
UM3120 - Rev 1
page 12/23
UM3120
Schematic diagrams
