1 Getting started
1.1 Safety considerations
1.1.1 Electrostatic precautions
Warning: Take electrostatic precautions, including ground straps, when using the X-NUCLEO-53L8A1
expansion board. Failure to prevent electrostatic discharge could damage the device.

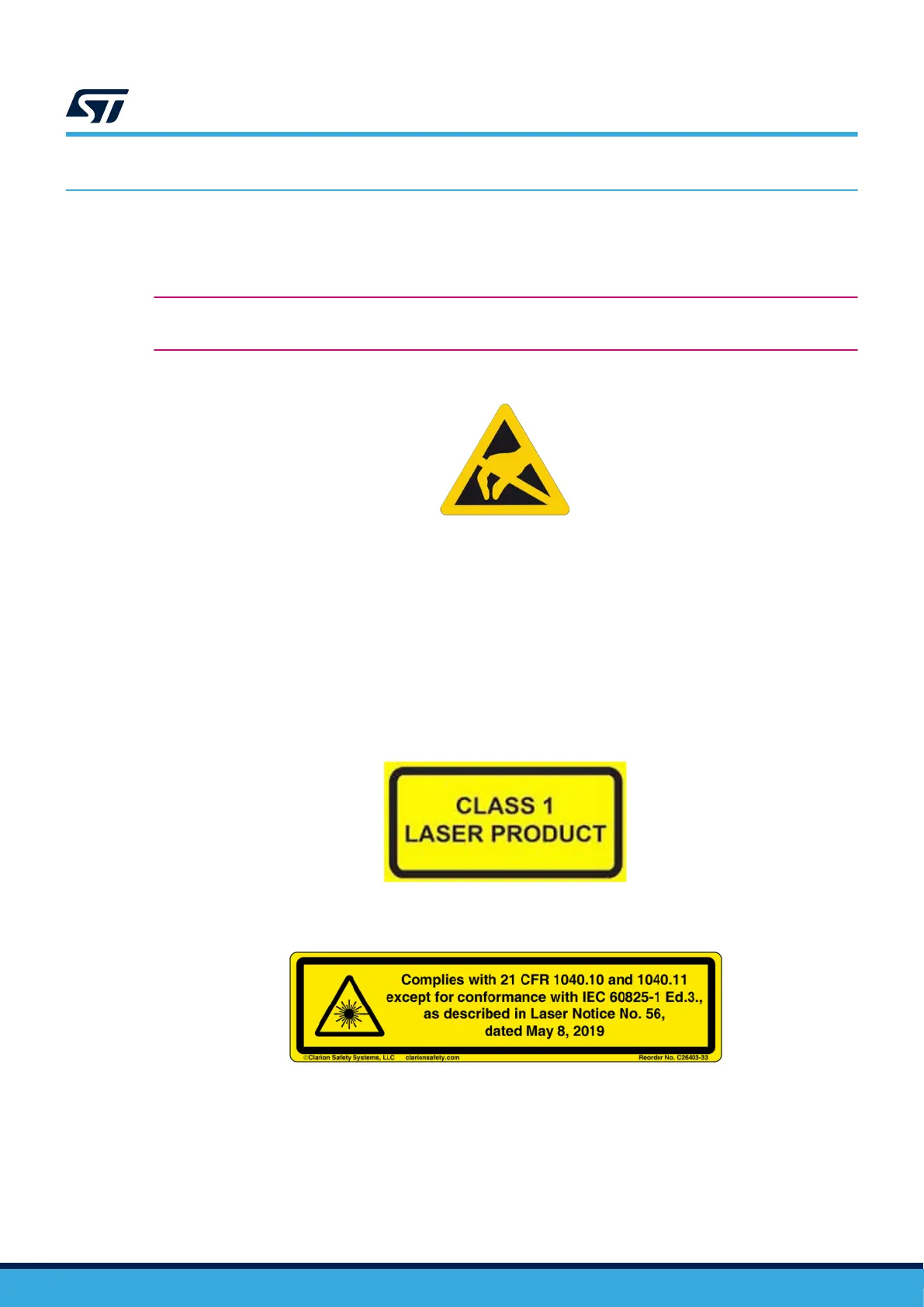

Figure 2. Electrostatic logo
1.1.2 Laser safety considerations
The VL53L8CX contains a laser emitter and the corresponding drive circuitry.
The laser output is designed to remain within Class 1 laser safety limits under all reasonable foreseeable
conditions, including single faults, in compliance with the IEC 60825-1:2014.
The laser output power must not be increased by any means and no optics should be used with the intention of
focusing the laser beam.
Caution: Use of controls or adjustments, or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
Figure 3. Class 1 laser product label
Figure 4. Laser notice 56: applies to IEC 60825-1:2014
1.2
Features
• VL53L8CX, low-power, high performance 8x8 multizone Time of-Flight sensor
• Hideable behind a dark cover window
• Accurate absolute ranging distance, independent of the reflectance of the target
• Up to 400 cm ranging
UM3120
Getting started
UM3120 - Rev 1
page 2/23
