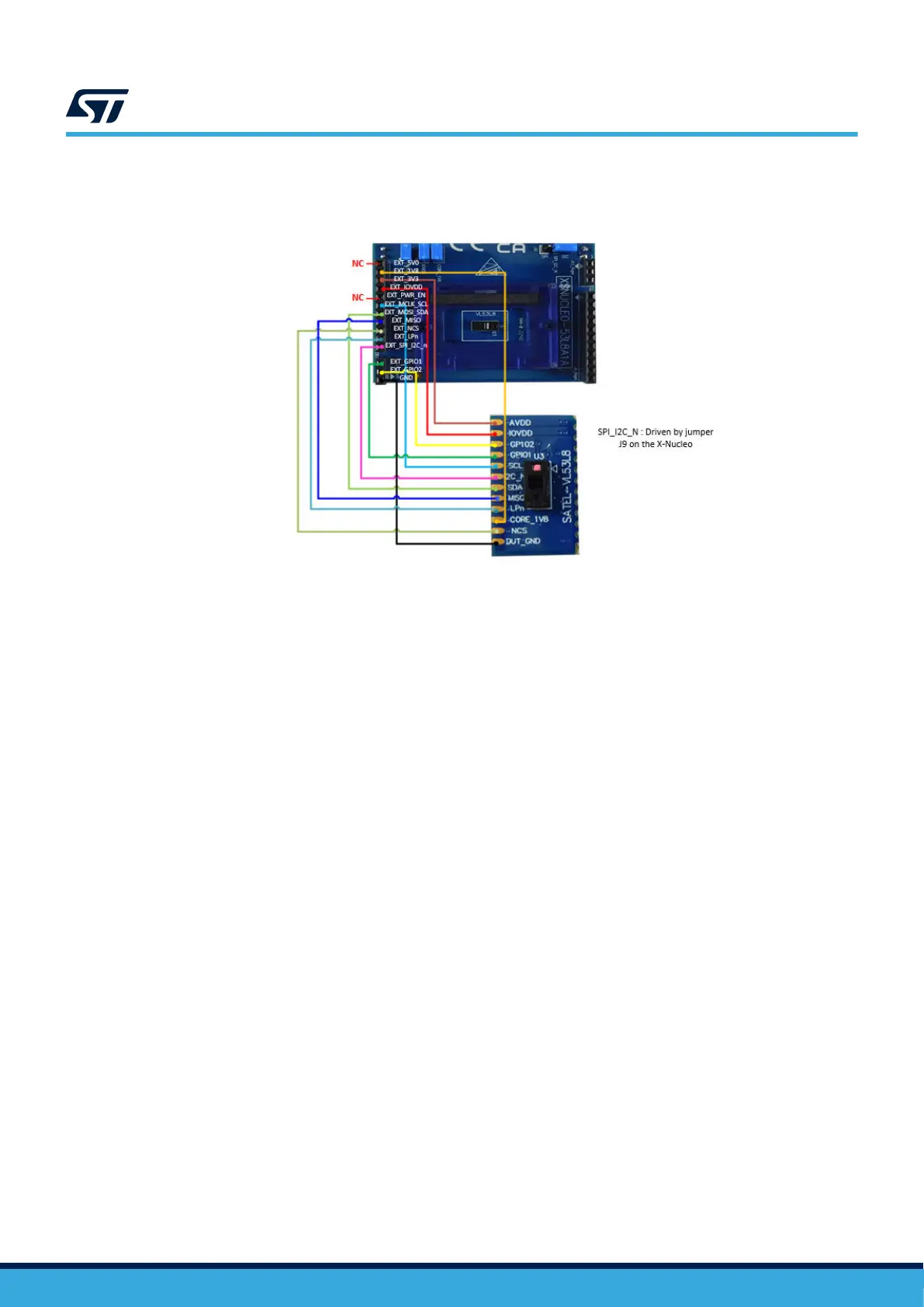

Figure 9. VL53L8 mini PCB flying wire connection to the X-NUCLEO-53L8A1 expansion in SPI mode. J9
jumper with pin 1 and 2 connected
UM3120
Breakout boards
UM3120 - Rev 1
page 7/23
