7.4 Power source from the 5 V pin of the Arduino Uno or Arduino
Nano connectors
A jumper should be inserted in the 'ARD' position of JP3 as shown in Figure 9: CN4 and
CN13 +5V pin assignment. The X-NUCLEO-LPM01A is supplied by a 5 V DC source from
either the Arduino Uno connector (CN4) or the Arduino Nano connector (CN13). See
Figure 3: X-NUCLEO-LPM01A layout top view for the CN4 and CN13 placements.

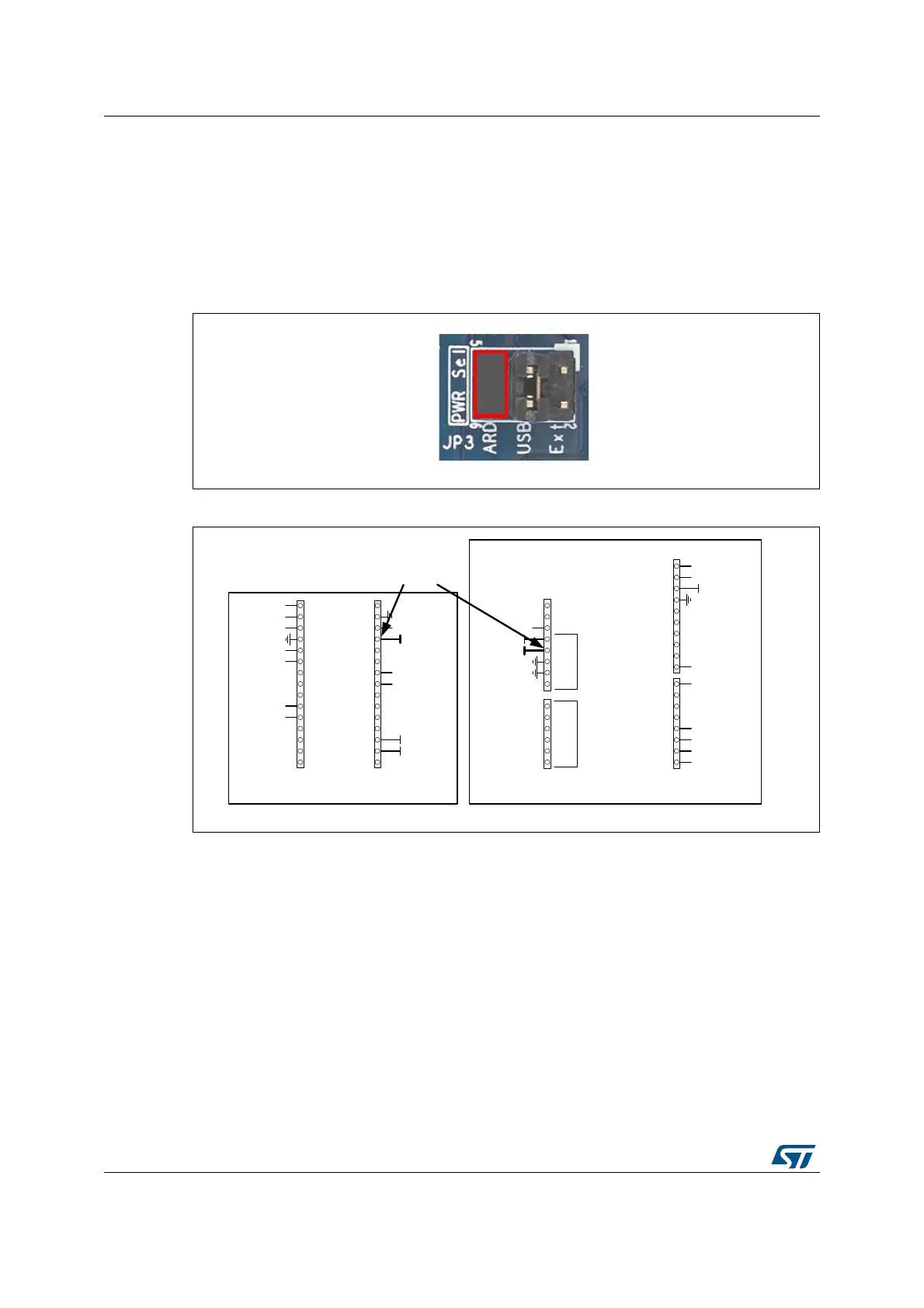

Figure 8. JP3 (power from Arduino setting)
06Y9
Z
Figure 9. CN4 and CN13 +5V pin assignment
06Y9
ϭ
Ϭ
EZ^d
'E
Ϯ
ϯ
ϰ
ϱ
ϲ
ϳ
ϴ
ϵ
ϭϬ
ϭϭ
ϭϮ
s/E
'E
EZ^d
нϱs
ϳ
ϲ
ϱ
ϰ
ϯ
Ϯ
ϭ
Ϭ
Z&
ϯsϯ
ϭϯ
EϭϮ
Eϭϯ
$UGXLQR1DQR
ϱsͺZ
Z&ͺZ
ϯsϯͺZ
ƌĞƐĞƌǀĞĚ
ƌĞƐĞƌǀĞĚ
ƌĞƐĞƌǀĞĚ
ZͺϮ
Zͺϯ
Zͺϳ
ƌĞƐĞƌǀĞĚ
ƌĞƐĞƌǀĞĚ
ƌĞƐĞƌǀĞĚ
ƌĞƐĞƌǀĞĚ
'E
^<ϭϯ
D/^KϭϮ
WtDDK^/ϭϭ
WtD^ϭϬ
WtDϵ
ϴ
ϳ
WtDϲ
WtDϱ
ϰ
WtDϯ
Ϯ
dyϭ
ZyϬ
Eϴ
^>ϭϱ
^ϭϰ
Z&
/KZ&
EZ^d
ϯsϯ
ϱs
'E
'E
s/E
Ϭ
ϭ
Ϯ
ϯ
ϰ
ϱ
Eϯ
Eϰ
Eϵ
$UGXLQR8QR
/E WKtZ
ϱsͺZ
Z&ͺZ
ϯsϯͺZ
ƌĞƐĞƌǀĞĚ
ƌĞƐĞƌǀĞĚ
ƌĞƐĞƌǀĞĚ
Zͺϳ
Zͺϯ
ZͺϮ
ƌĞƐĞƌǀĞĚ
ƌĞƐĞƌǀĞĚ
ƌĞƐĞƌǀĞĚ
EϰĂŶĚEϭϯ
ϱsƉŽǁĞƌŝŶƉƵƚƉŝŶ
7.5 X-NUCLEO-LPM01A power consumption
• 140 mA max (700 mW with 5 V power source); static or dynamic mode during
acquisition, no target board load.
• 340 mA max (1700 mW with 5 V power source); static measurement mode during
acqu
isition, target board at full load (200 mA)
• 190 mA max (950 mW with 5 V power source); static measurement mode during
acqu
isition, target board at full load (50 mA)
Note: Current consumptions are the same regardless power supply
input source (USB, Ext Pwr,
Arduino 5 V pin).
