UM2243 Rev 2 33/41
UM2243 Extension connector CN11
40
14 Extension connector CN11
Specific daughter boards can be connected to the I2C bus and pin D8 of the Arduino
connector sets of the X-NUCLEO-LPM01A using the extension connector CN11. By default,
CN11 is not connected to the Arduino I2C bus and D8 because this connector has a
reserved use which is not described here.
14.1 Extension connector used with Arduino Uno connectors
To use a specific daughterboard connected to CN11 controlled by a board plugged into the
Arduino Uno set of connectors CN3, CN4, CN8 and CN9, the solder bridges SB6, SB12,
SB17 must be closed.

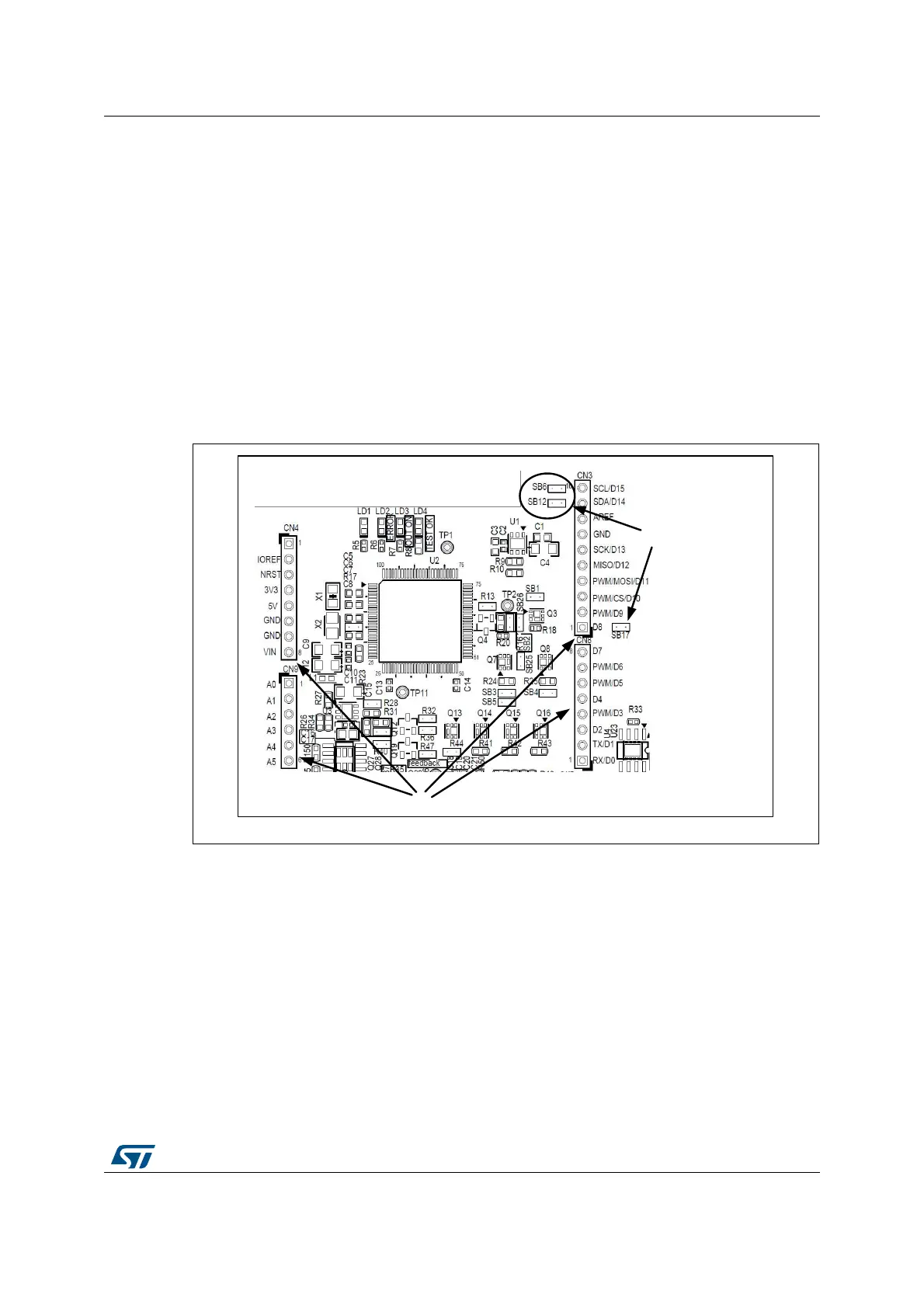

Figure 25. Extension connector CN11 with Arduino Uno
06Y9
^ŽůĚĞƌďƌŝĚŐĞ^ϲ^ϭϮ
^ϭϳ
ƌĚƵŝŶŽhŶŽĐŽŶŶĞĐƚŽƌƐEϯEϰEϴEϵ
