Extension connector CN11 UM2243
34/41 UM2243 Rev 2
14.2 Extension connector used with Arduino Nano connectors
To use a specific daughterboard connected to CN11 controlled by a board plugged into the
Arduino Nano set of connectors CN12 and CN13, the solder bridges SB15, SB18, SB19
must be closed.

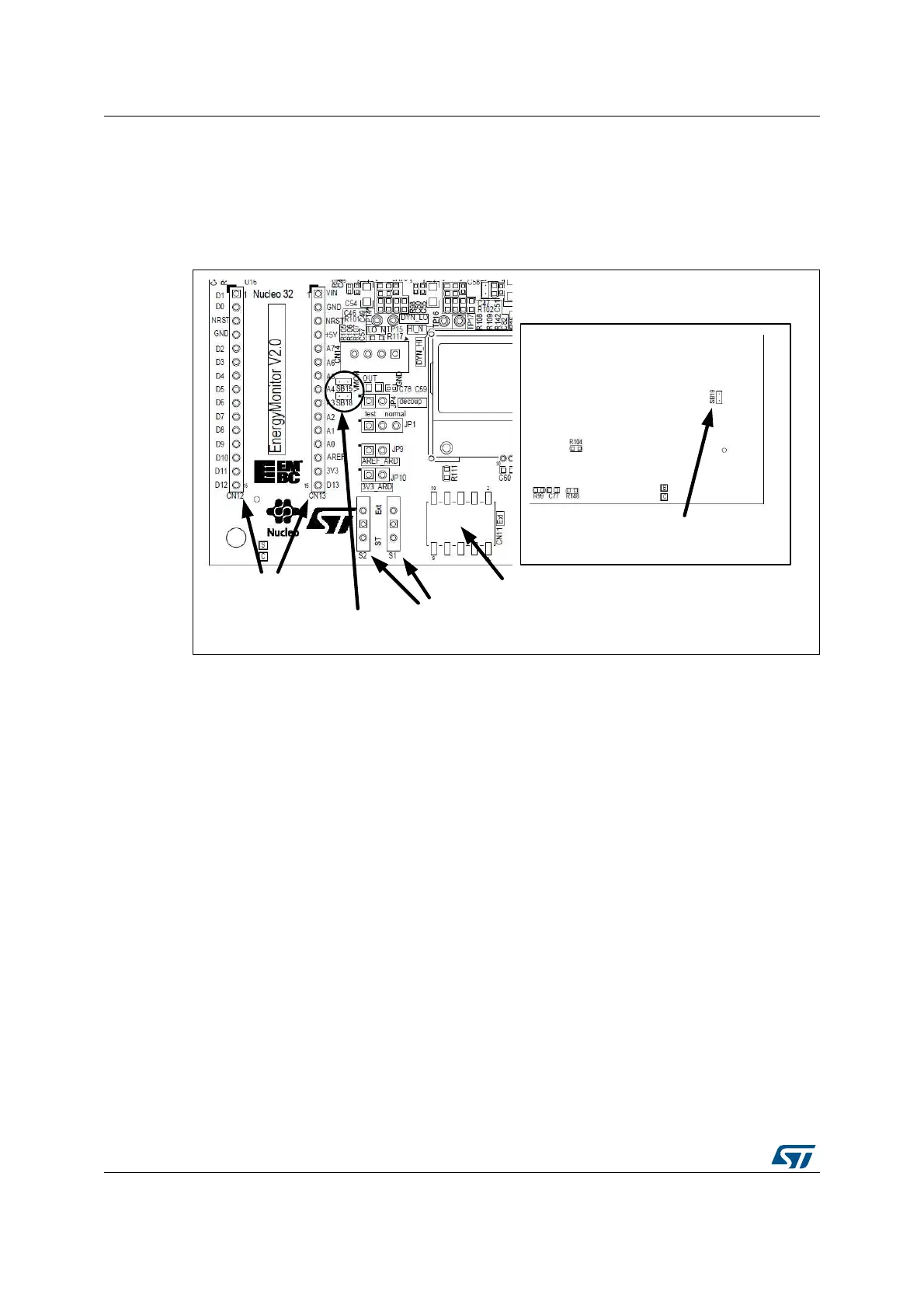

Figure 26. Extension connector CN11 with Arduino Nano
06Y9
ƌĚƵŝŶŽEĂŶŽEϭϮ
Eϭϯ
^ŽůĚĞƌďƌŝĚŐĞ^ϭϱ
^ϭϴ
^ůŝĚĞƌ^Ϯ^ϭ
džƚĞŶƐŝŽŶĐŽŶŶĞĐƚŽƌ
Eϭϭ
^ŽůĚĞƌďƌŝĚŐĞ^ϭϵ
ŽƚƚŽŵƐŝĚĞ
14.3 Switch to select the type of daughterboard
Two kinds of daughterboard can be used with CN11: ST or External. Move the slider of
switches S1 and S2 to select the right mode. The position is silkscreen printed on the PCB
between the two switches.
