10 Dynamic current measurement principle
The dynamic measurement mode allows measurement of fluctuating currents from 100 nA
to 50 mA with an accuracy in the range of 2%.
Measurement acquisitions are performed using three 12-bit ADCs
working in parallel at
3.2 Msamples/s each and with 100 kHz bandwidth on the analog circuit path. This high
sampling
rate allows fast current variations (transient current, peak current activities on
target board side) to be caught.
The dynamic current measurement principle is base
d on the shunt method as for the static
measurement. Nevertheless, a specific and complex architecture performs dynamic
measurement with a 100 kHz bandwidth covering the wide current measurement range of
a
bout 110 dB (from 100 nA to 50 mA) by keeping the output voltage stable.
The dynamic current circuitry has built-in overcur
rent protection that operates from 59 mA.
Therefore some transient current spikes of up to 75 mA and less than few milliseconds are
allowed.

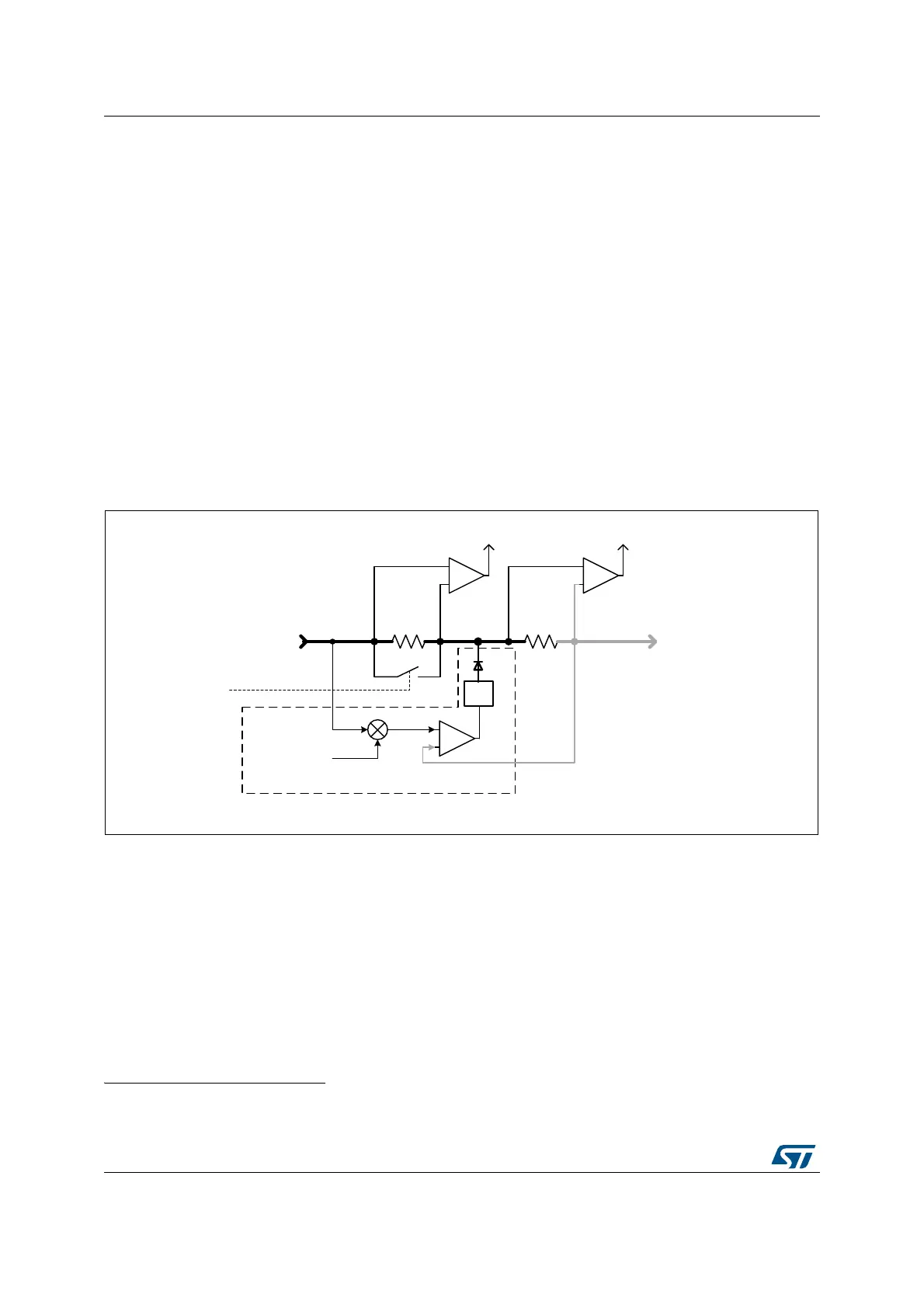

Figure 17. Dynamic current block diagram
(a)
06Y9
н
Ͳ
ϭϬϬϬŽŚŵƐ
s
WtZ
ĂŵƉůŝ
н
Ͳ
sKhd
KEͺ^,hEd
н
Ͳ
ƚŽůŽǁĐƵƌƌĞŶƚ
ƚŽŚŝŐŚĐƵƌƌĞŶƚ

ϭ
Ϯ
ϰ
н
Ͳ
&ƌŽŵϭϴsƚŽϯϯs
ƉƌŽŐƌĂŵŵĂďůĞƌĞŐƵůĂƚŽƌ
>KƐŚƵŶƚ

ϮŽŚŵƐ
,/ƐŚƵŶƚ
dŽƚĂƌŐĞƚďŽĂƌĚ
sͲsĚƌŽƉ
sĚƌŽƉ
ZĞĨǀŽůƚĂŐĞΕϯϬŵs
KƵƚƉƵƚǀŽůƚĂŐĞƐƚĂďŝůŝnjĂƚŝŽŶůŽŽƉ
a. Patent pending
