STA-RITE SUPERMAX VS - Replacement Parts; Illustrated Parts List

18
SUPERMAX
®
VS Variable Speed Pump Installation and User’s Guide

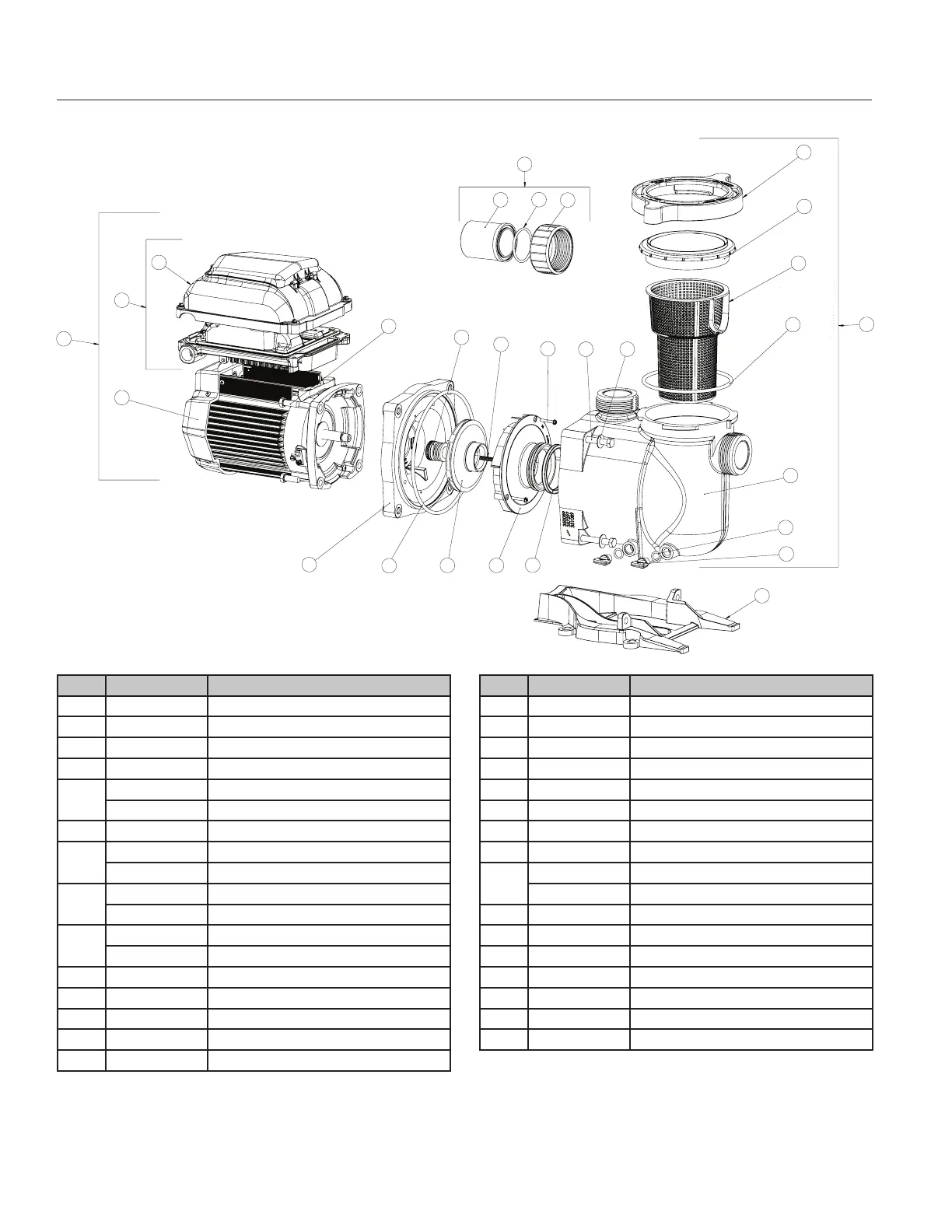

Illustrated Parts List
1
3
24
5
6
23
7
22
21
8
14
15
16
17
12
18
2
4
26 27 25
28
10
9
20
19
11
13
Item # Part # Description
1 353124 Drive Cover
2 353128 Drive/Cover Kit
3 353135S Motor
4 353133S Motor/Drive Assembly
5
355612 Sealplate (Mfg. before 6/17/19)
356072 Sealplate (Mfg. after 6/17/19)
6 355619 Sealplate Gasket
7
355074 Impeller (Mfg. before 6/17/19)
C105-238PDCA Impeller (Mfg. after 6/17/19)
8
355618 Diffuser (Mfg. before 6/17/19)
355949 Diffuser (Mfg. after 6/17/19)
9
355030 Diffuser Seal (Mfg. before 6/17/19)
355331 Diffuser Seal (Mfg. after 6/17/19)
10 351094 Base
11 357161 Drain Plug
12 192115 O-ring, Drain Plug
13 351089 Volute
14 357255 O-ring, Lid
Item # Part # Description
15 355667 Strainer Basket
16 350091 Lid
17 351090 Clamp, Lid
18 353110 Volute Assembly (includes items 11-17)
19 072184 Washer, 3/8” SS (Qty. 8)
20 355621 Screw, Hex, 3/8-16 x 2-1/4 (Qty. 4)
21 355334 Screw, Hex Washer, #8-32 (Qty. 3)
22 355389 Locking Screw, Impeller
23
354545S Mechanical Seal (Mfg. before 6/17/19)
17351-0101S Mechanical Seal (Mfg. after 6/17/19)
24 354290 Screw, Hex, 3/8-16 (Qty. 4)
25 270141 Union Nut (Qty. 2)
26 350093 Union Adapter (Qty. 2)
27 6020018 O-ring, Union Adapter (Qty. 2)
28 351157 Union Kit (includes items 25-27) (Qty. 2)
* 353129Z 25 ft. Digital Input Kit
* 357924Z Fan Guard Kit, TEFC/Super-Duty
(*) Not Shown
REPLACEMENT PARTS
