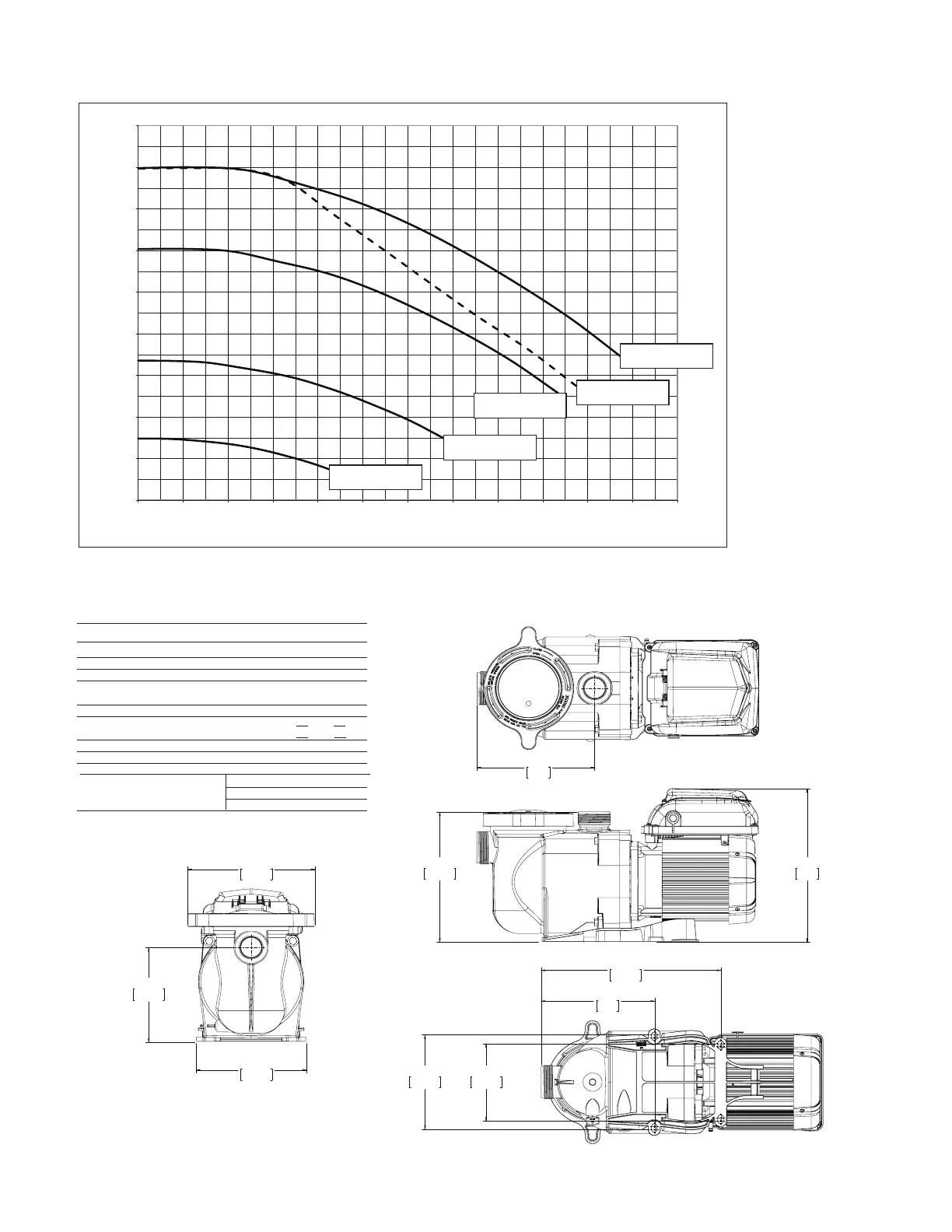

STA-RITE SUPERMAX VS - Pump Performance Curves; Pump Specifications; Pump Dimensions

19
SUPERMAX
®
VS Variable Speed Pump Installation and User’s Guide
10.62
269.7
12.52
318
9.33
237
7.74
196.6
6.32
160.5
8.98
228
14.24
361.6
10.07
255.7
8.71
221.3
7.71
195.9
Pump Specifications
Pump Dimensions
Overall Ratings
Input Voltage 115-230 Vrms nominal
Input Current 13.2/12.0-11.5 A
Input Frequency Single phase, 50 or 60 Hz
Control Terminals 18-30V AC (24V AC+/- 20%) or
9-30V DC (12/24V DC +/- 20%)
Maximum Continuous Load 2.2 THP
115-volt: WEF 7.3 THP 2.2
230-volt: WEF 6.6 THP 2.2
Speed Range 300 - 3450 RPM
Environmental Rating NEMA Type 3
Ambient Conditions
Storage -40ºC to +85ºC (-40ºF to +185°)
Operating 0ºC to +50ºC (+32°F to +122°F)
Humidity Relative 0 to 95 % non-condensing
Pump Performance Curves
0
10
20
30
40
50
60
70
80
90
0102030405060708090 100 110 120
Total Dynamic Head in Ft of H2O
Volumetric Flow Rate in GPM
Quick Clean / 3450 RPM
(230V Only)
Quick Clean / 3450 RPM
(115V Only)
Speed 1 / 3000 RPM
(115V / 230V)
Speed 3 / 2200 RPM
(115V / 230V)
Speed 2 / 1400 RPM
(115V / 230V)
