Main applications:
Unscrew the telescopic poles from the base unit.
Assemble the telescopic poles for a room height of up to
2.75 metres using the threaded sleeves.
Secure the instrument firmly between the floor and cei-
ling using the spring unit, securing plate and base unit.
Position the laser. To secure in position, turn the locking
lever until it is tight.
Opening the set.
Remove the parts.
Erect the tripod with the required height.
Position the laser.
B1
B2
B3
C1
C2
C3
Commissioning
The instrument is switched on with the on/off switch (4).
Vertical and horizontal lines will appear after switching on.
The laser will automatically level itself.
The laser will flash if the inclination is
too great.
I.
II.
III.
IV.
I.
II.
III.
IV.

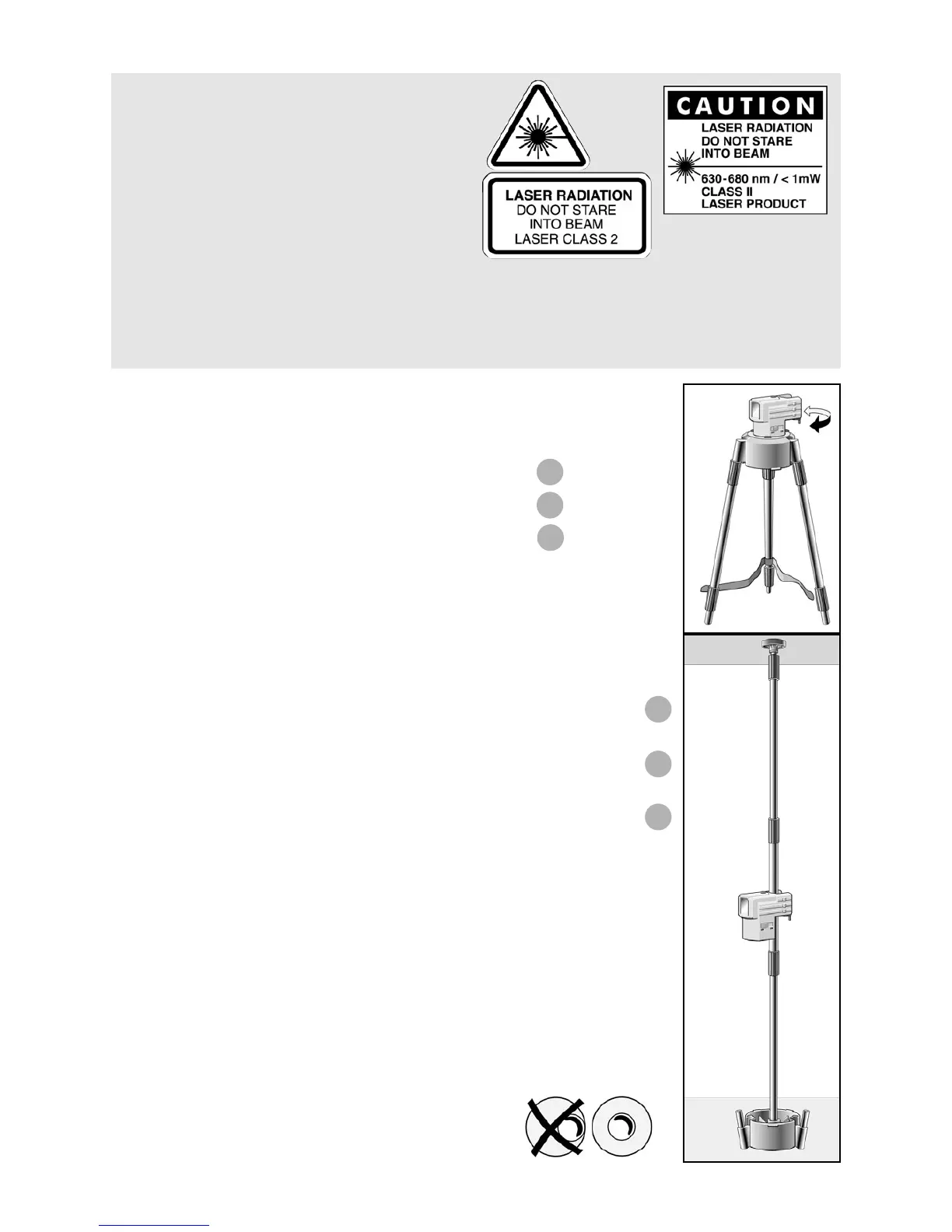

Levelling at variable heights up to 2.75 metres
Levelling with tripod function
NB:
In Class II laser equipment, your eyes
are protected from accidental, short-
term exposure to the laser beam by the
lid-closing reflex and/or the reflex reac-
tion to turn one's head. This equipment
can therefore be used without additio-
nal protective measures. Nevertheless,
you should not look directly into the
laser beam.
The laser goggles enclosed with these units
are not safety goggles. They are designed
to make the laser light easier to see.
Do not let the unit
fall into children's
hands!
EN 60825-1 : 03 10
