Page 49
PARTS REMOVAL AND REPLACEMENT
11. Complete the reassembly of the machine by performing steps 1- 4 in
reverse order.
CABLE ASSEMBLY
1. Remove the right side cover.
2. Remove the console and unplug the console cable and the Polar
®
heart

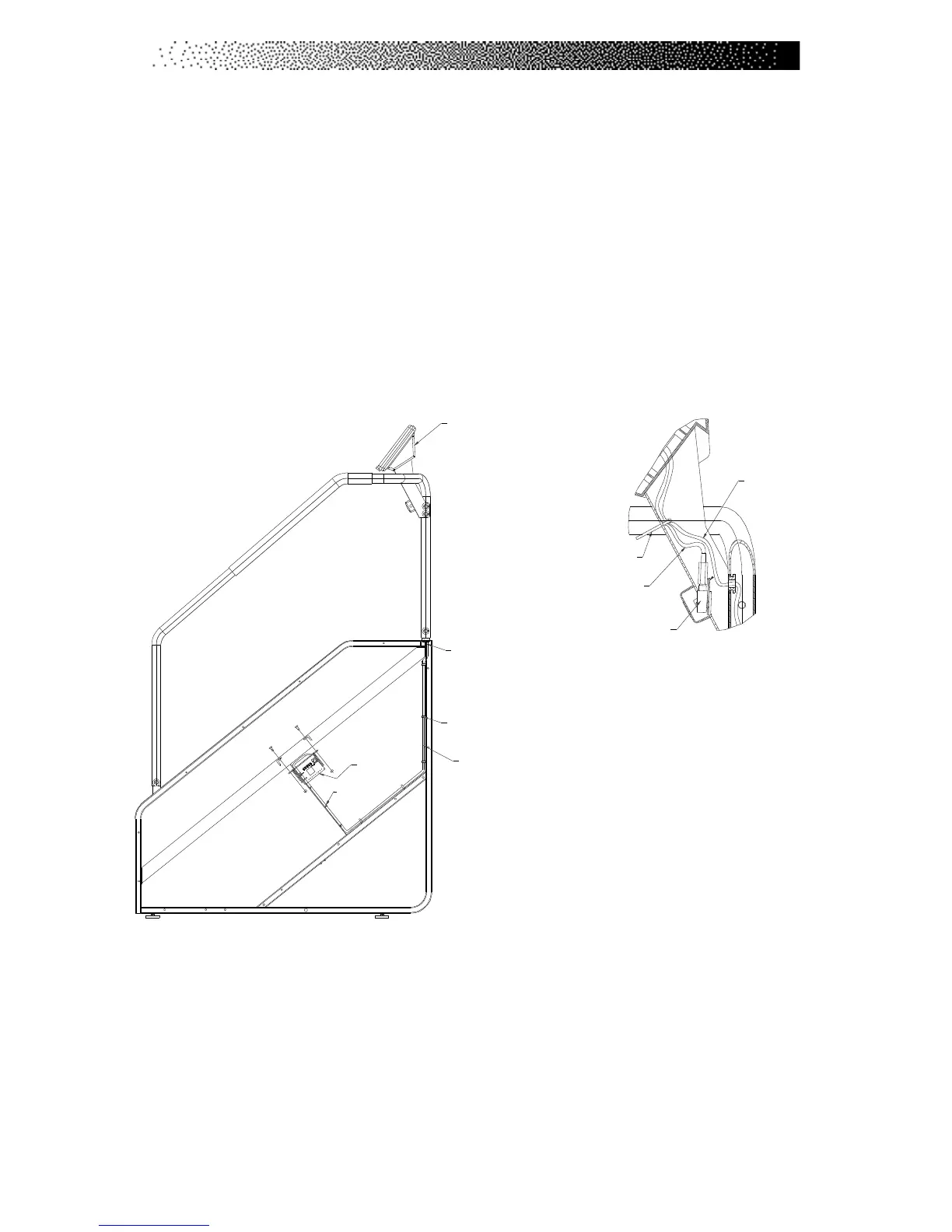

rate cable from the back of the console (See Drawing Below). Unplug the
plastic connectors at the console cable/main cable junction.
3. Hold the console connector and pull the console cable up and out of the
handrails.
4. Reinstall the console cable by pushing the white plastic connector end
down through the handrails. Do not connect the console, Polar heart rate,
and the main cables.
5. Remove the main cable from the wire saddles.
Console
Relay Board
4 X Tywrap
Main Cable
21769
5 X Wire Saddle
Console Cable
21416
Receiver, Polar
®
Plug-in
25165
Polar Cable Assy, 12”
26143
Tywrap
25233
Console Cable/
Main Cable Junction
To Next Page
