PARTS REMOVAL AND REPLACEMENT
11. Complete the reassembly of the machine by performing steps 1- 4 in
reverse order.
CABLE ASSEMBLY
1. Remove the right side cover.
2. Remove the console and unplug the console cable from the back of the

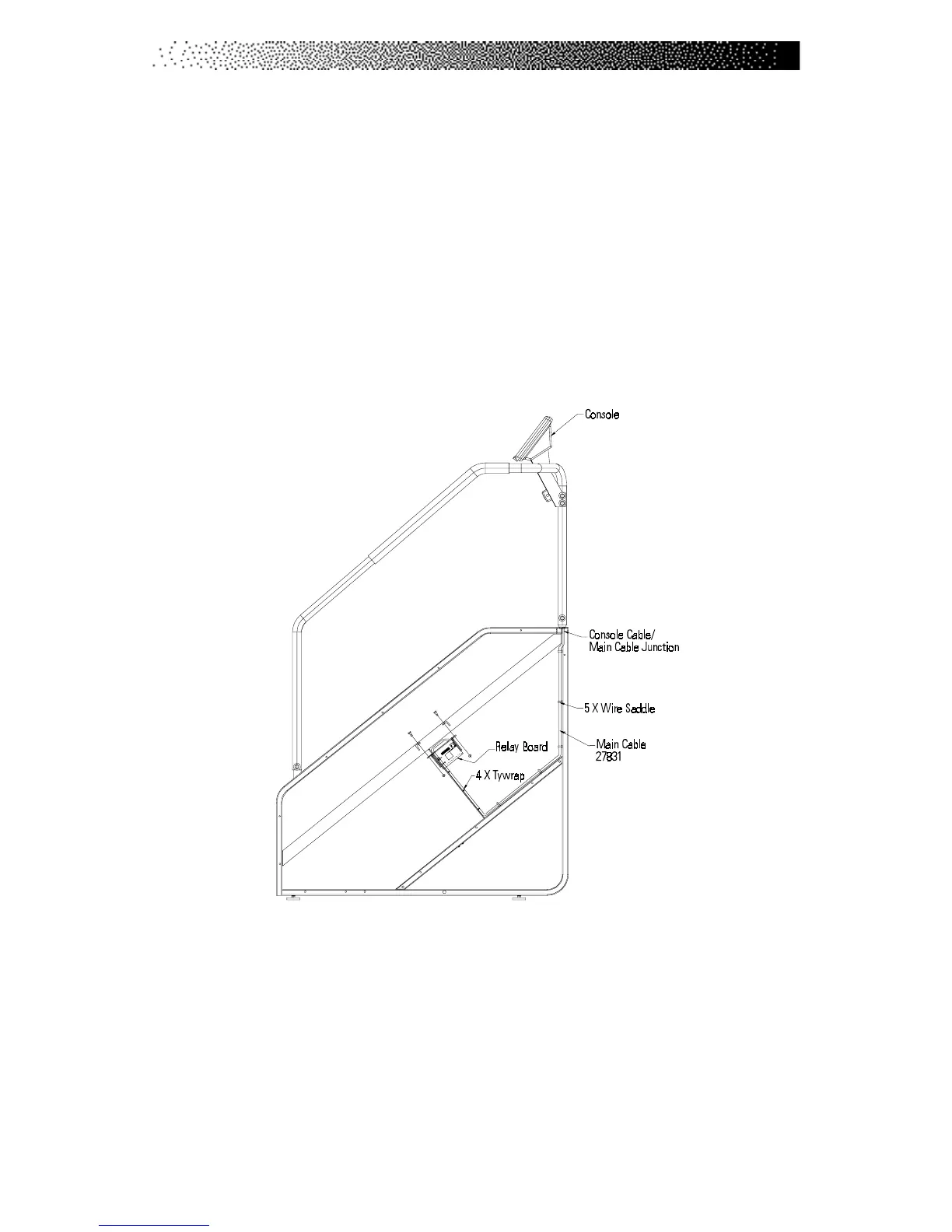

console (See Drawing Below). Unplug the plastic connectors at the console
cable/main cable junction.
3. Hold the console connector and pull the console cable up and out of the
handrails.
4. Reinstall the console cable by pushing the white plastic connector end
down through the handrails. Do not connect the console, and the main
cables.
5. Remove the main cable from the wire saddles.
