Stairmaster STEPMILL 7000 - Figure 8: Step Assembly

Page 69
FIGURES

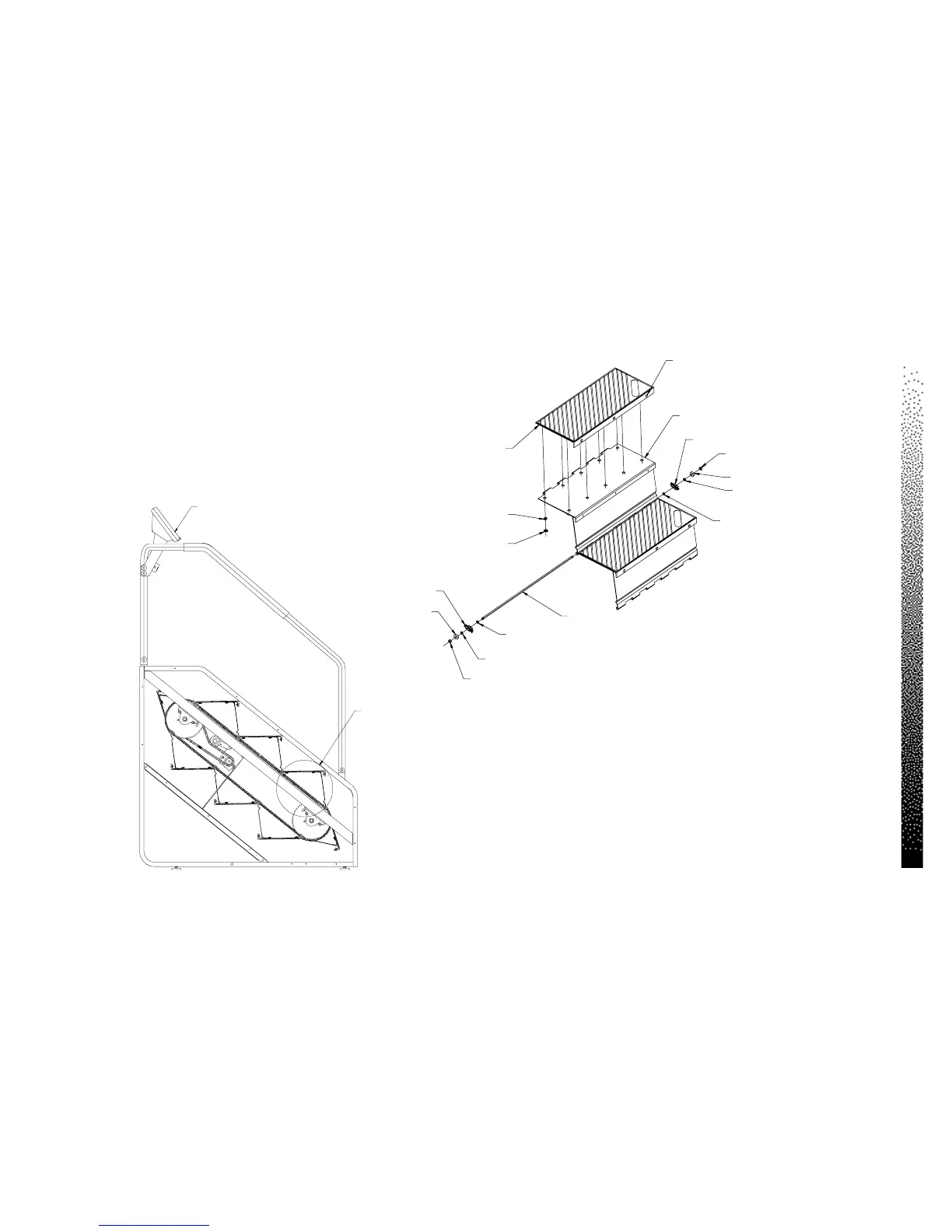

Figure 8: Step Assembly
Console
See Detail A
Step Tread
8 X 21398
80 X 20528
80 X 20508
Step Assembly (w/Tread)
8 X 21396
Modified Link
(22063)
(23082)
(22128)
(22128)
Step Shaft
8 X 20762
(22128)
32 X 22128
Modified Link
Step Shaft Bearing
16 X 23082
Step Shaft Nut
16 X 22063
Detail A
24 X 21363
