Page 61

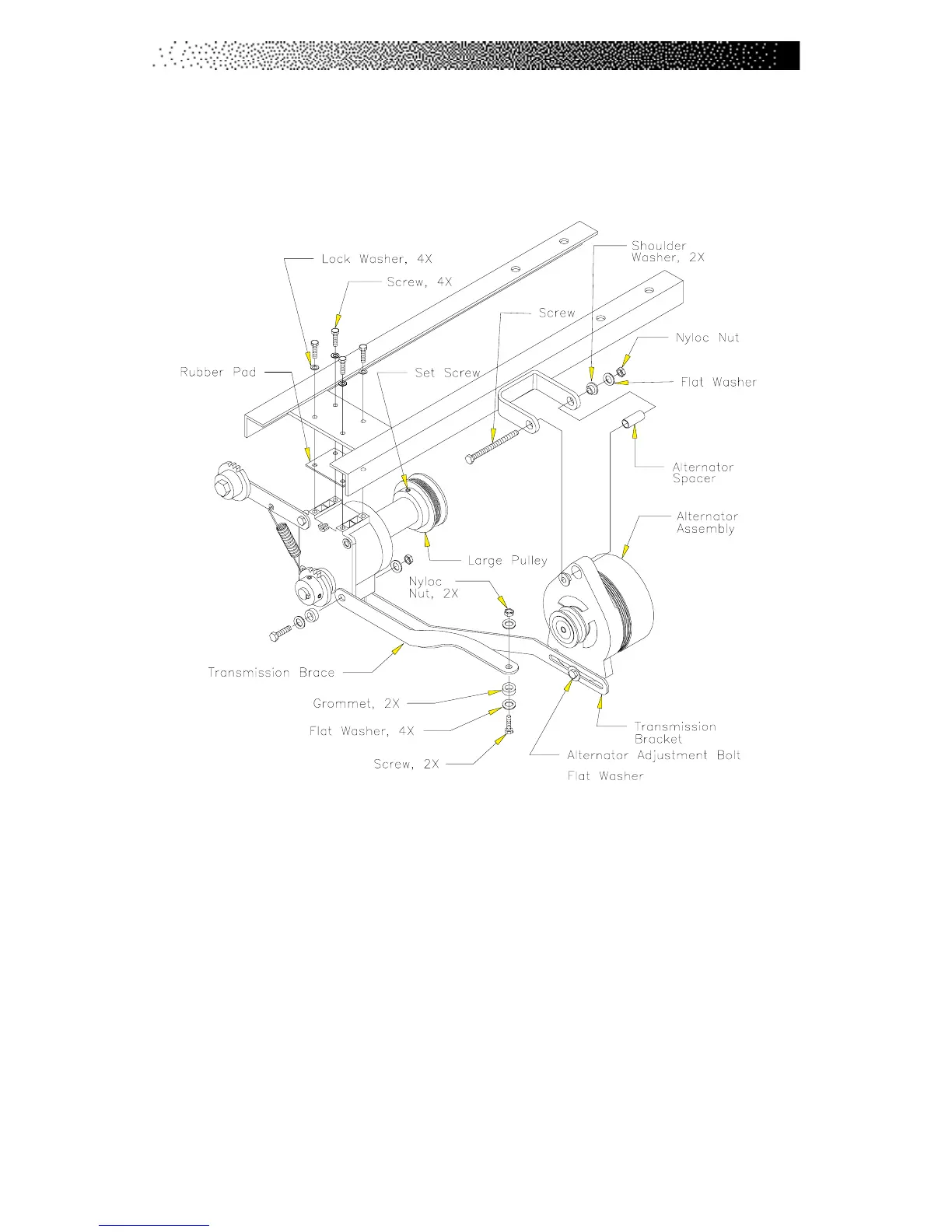

7. Support the transmission while loosening and removing the four
transmission mounting bolts. Remove the transmission and rubber pad
from the frame (See Drawing Below).
8. Reinstall the transmission by reversing the removal procedures.
9. Ensure the Poly-V belt is tensioned according to the procedures outlined in
the “Poly-V Belt” section of this Manual.
ALTERNATOR ASSEMBLY
1. Remove the right and left side covers.
2. Remove the step positioned in the middle of the staircase.
3. Remove the wiring from the alternator terminals, noting the origin and color
of the wires removed from each terminal.
PARTS REMOVAL AND REPLACEMENT
