Page 5
Assemble your machine before use. Machines shipped outside the United States
need to be uncrated before they can be assembled; refer to the “Uncrating
Instructions” included with your machine for the details.
1. Remove all shipping material and the battery charger from the
console.
2. Make sure the machine is level before you use it for the first time. The
four rubber end caps (see Figure 3) are designed to compensate for
slightly uneven floors. Each face of the caps is a different thickness.
Twist the caps to stabilize the machine.

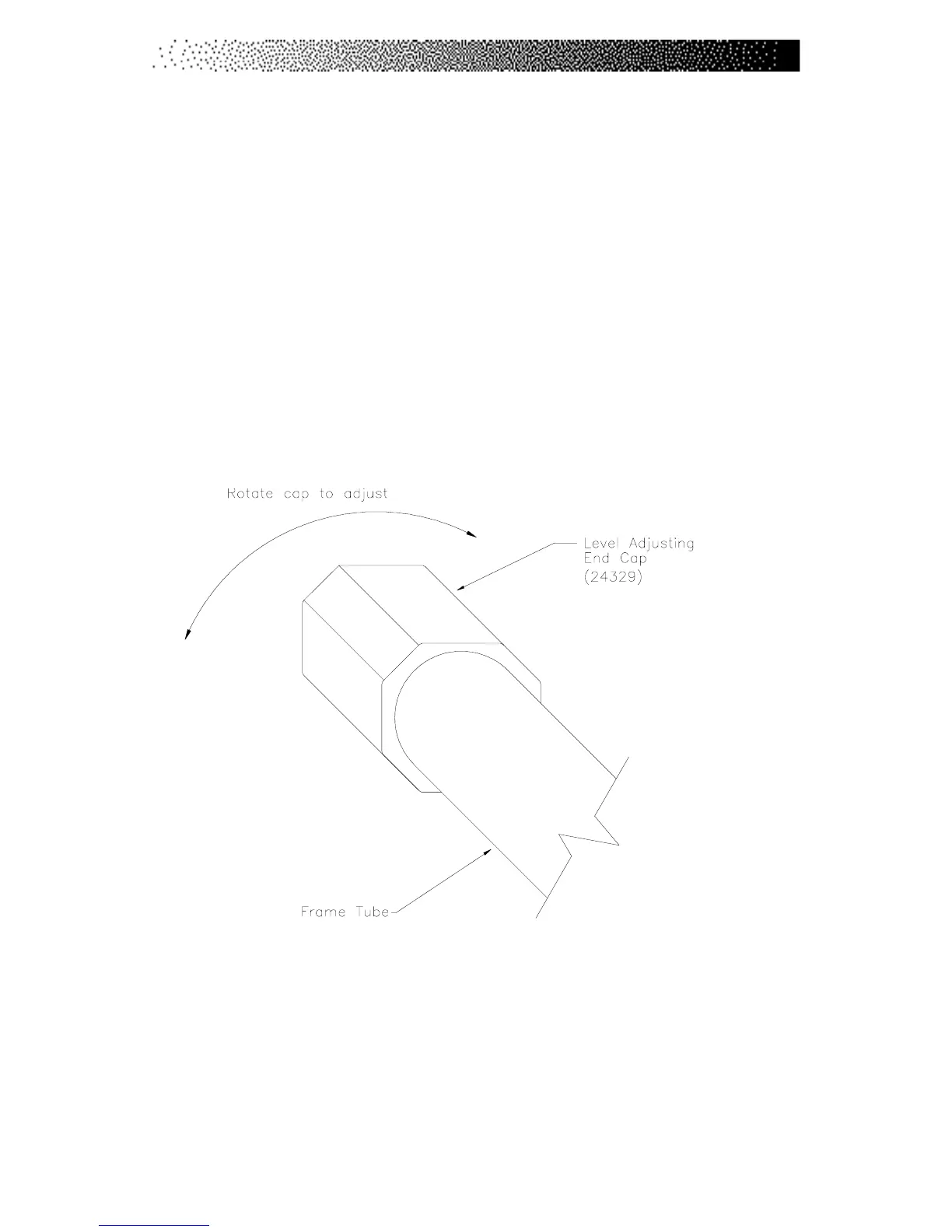

Figure 3: End Caps
3. Pedal the cycle to turn on the console. The console should produce an
audible sound and display a simulated EKG signal in the display area.
If it does not, contact our Customer Service Department. Refer to the
Appendix for the appropriate phone number.
INSTALLATION INSTRUCTIONS
