ASSEMBLY INSTRUCTIONS
6
Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all
packing materials from your area and place them back into the box. Do not dispose of the packing materials
until assembly is completed. Read each step carefully before beginning. If you are missing a part please
call our toll-free number for assistance 1 (800) 375-7520 or e-mail us at: parts@staminaproducts.com
1.
2.
Cushion Assembly
REAR
FRONT
STEP 1

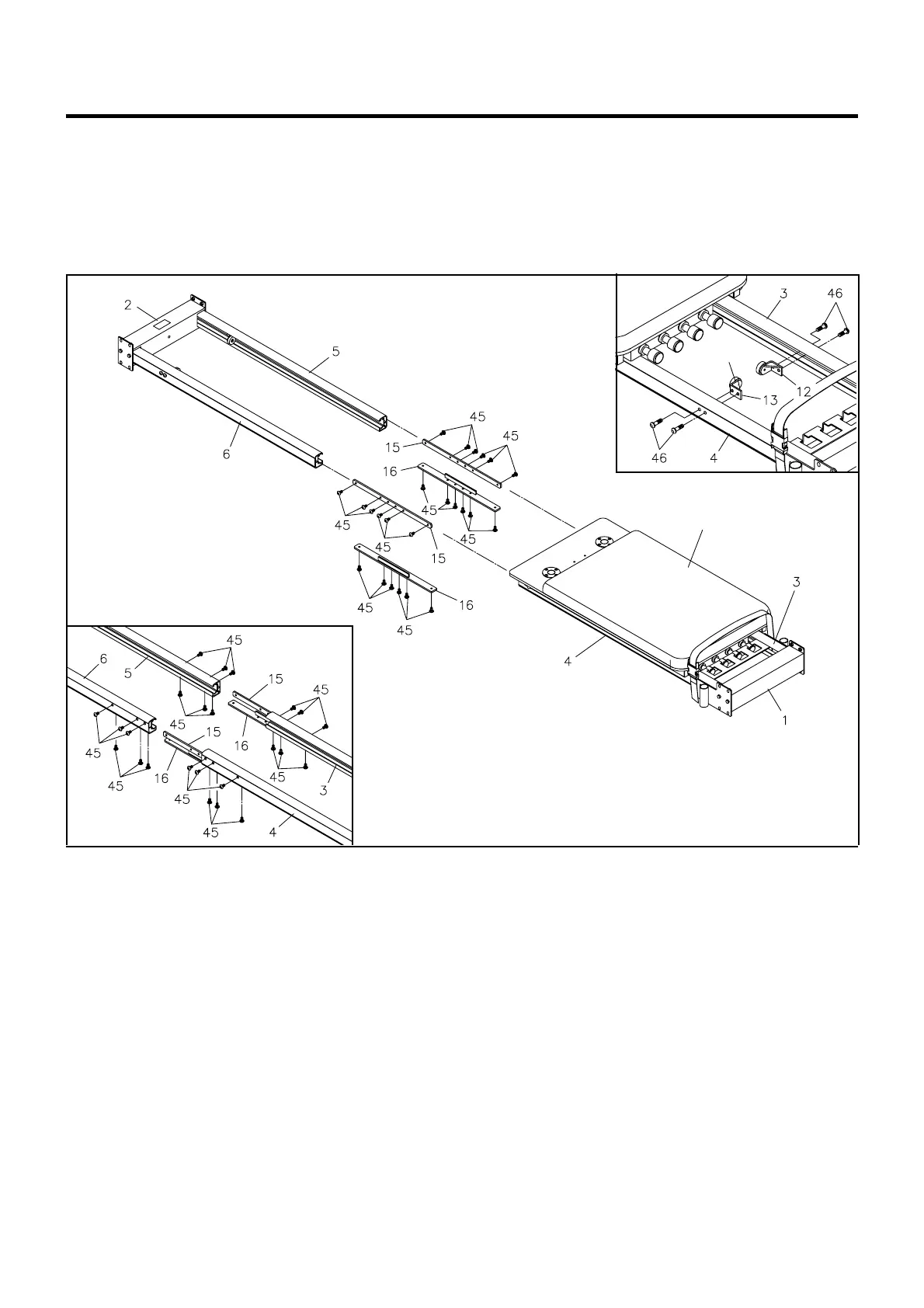

To connect the RAILS: Insert the CONNECTING PLATE(15) and the CONNECTING BRACKET(16)
into the FRONT LEFT RAIL(3) and FRONT RIGHT RAIL(4) and secure with BOLTS(M8 x 15mm)(45).
Do not tighten the bolts. Refer to illustration 1.
STEP 2
Insert the REAR LEFT RAIL(5) and REAR RIGHT RAIL(6) onto the CONNECTING PLATE(15) and
CONNECTING BRACKET(16) and secure with BOLTS(M8 x 15mm)(45). Tighten all of the bolts.
STEP 3
There is a "R" decal on the RIGHT STOP PLATE(13) and the FRONT RIGHT RAIL(4). Move the
CUSHION ASSEMBLY. Attach the RIGHT STOP PLATE(13) onto the FRONT RIGHT RAIL(4) with
BOLTS(M8 x 25mm)(46). Do the same to attach the LEFT STOP PLATE(12) onto the FRONT LEFT
RAIL(3). Refer to illustration 2.
Mark "R"
To Next Page
