ASSEMBLY INSTRUCTIONS

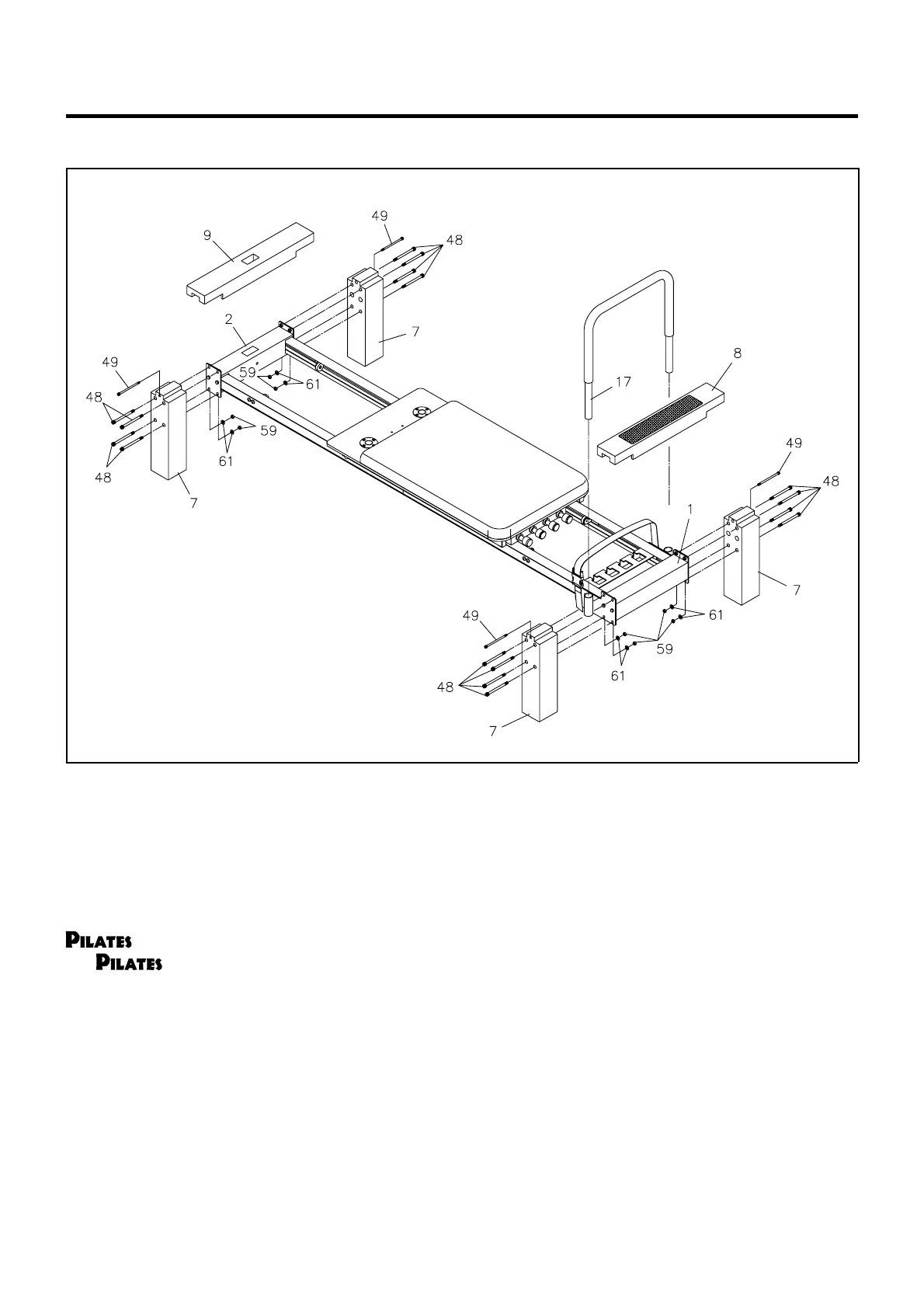

STEP 4
Attach the four WOODEN LEGS(7) onto the FRONT BRACE(1) and the REAR BRACE(2) with BOLTS
(M8 x 100mm)(48), NYLOCK NUTS(M8)(59), and WASHERS(M8)(61).
STEP 5
Place the FRONT WOODEN BEAM(8) between the WOODEN LEGS(7) on the front end of the
. Place the REAR WOODEN BEAM(9) between the WOODEN LEGS(7) on the back end of
the
. Secure the FRONT and REAR WOODEN BEAMS(8, 9) with BOLTS(M6 x 104mm)(49).
STEP 6
Insert the FOOT REST(17) into the holes on the FRONT BRACE(1).
7
