ASSEMBLY INSTRUCTIONS
8

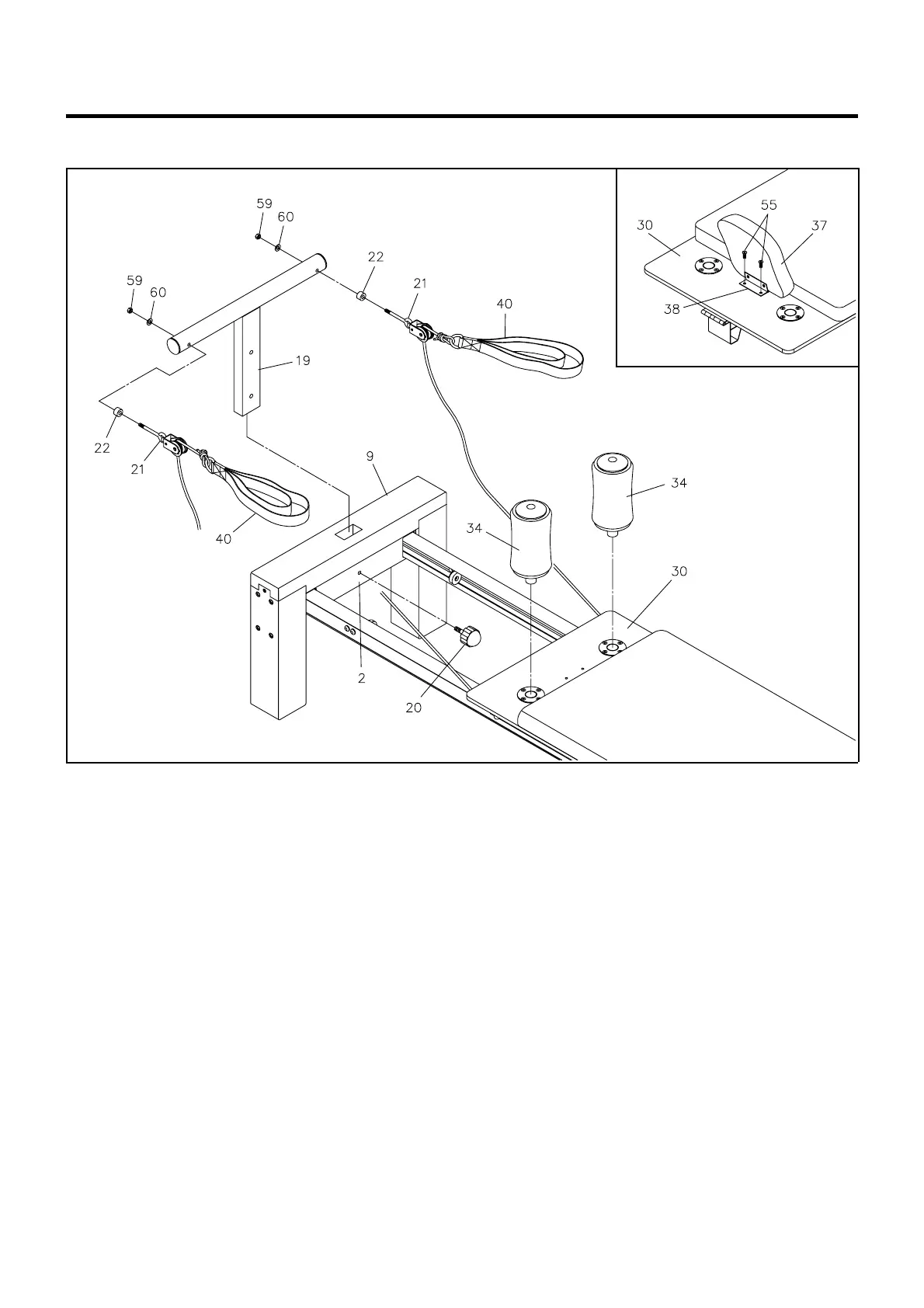

STEP 7
Attach the HEAD REST(37) onto the CARRIAGE BOARD(30) with the FLAT HEAD SCREWS
(M6 x 10mm)(55).
STEP 8
Insert the PULLEY POST(19) into the REAR WOODEN BEAM(9) and REAR BRACE(2). Secure
the
PULLEY POST(19) with the LOCKING KNOB(20). Make the PULLEY SETS(21) go through the
PULLEY SPACERS(22) and the PULLEY POST(19). Then secure the PULLEY SETS(21) with
NYLOCK NUTS(M8)(59) and ARC WASHERS(M8)(60).
STEP 9
Screw the two FOAM PADS(34) into the CARRIAGE BOARD(30).
