14 ► BR45 User Manual
GAUGE
CHUCK
TESTER CHARGING
VALVE
CW
ACCUMULATOR TESTER(P/N 02835 )

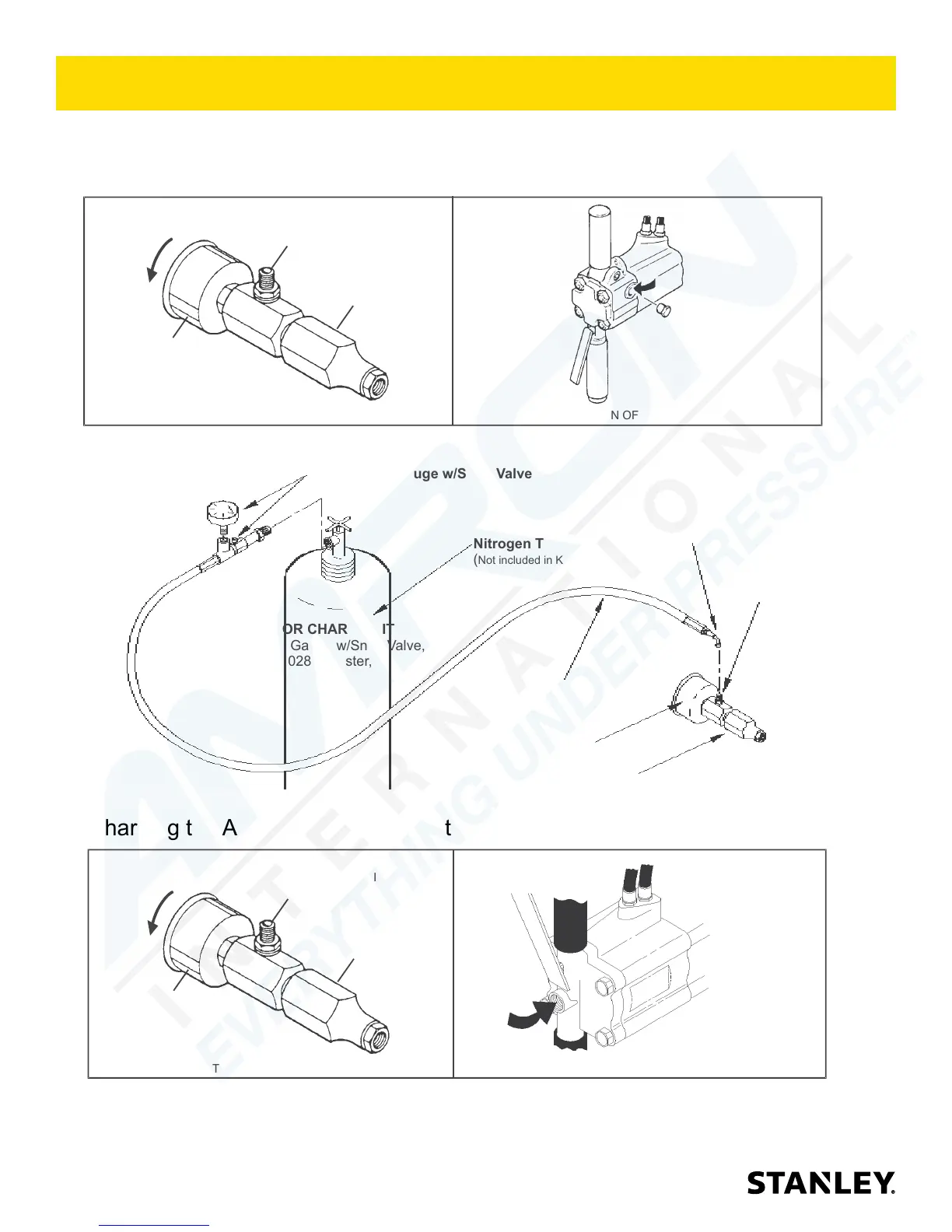

Figure 2
LOCATION OF CHARGING VALVE
GAUGE
CHUCK
TESTER CHARGING
VALVE
CW
ACCUMULATOR TESTER(P/N 02835 )
Figure 2
LOCATION OF CHARGING VALVE
LiquidFilled Gauge w/Snub Valve
NitrogenTank
()
Not included in Kit
Gauge
Hose
Chuck
ChargeFitting
ChargingValve
31254 ACCUMULATOR CHARGE KIT
Includes: Liquid Filled Gauge w/Snub Valve,
Hose, Charge Fitting, 02835 Tester, and Box
(not pictured)
02835 TESTER
Charging the Accumulator (45 with Anti-Vibration Handles)BR
Charging the Accumulator (45 with T-Handles)BR
Figure 2. Charging the Accumulator
CHARGING THE ACCUMULATOR
