Stanley BR45 - Breaker Foot Assembly 08856

28 ► BR45 User Manual
BREAKER FOOT ASSEMBLY 08856
ITEM PART # QTY DESCRIPTION
1 02022 1 O-RING
2 04374 1 HEX NUT
3 04386 1 CUP SEAL
4 04387 1 ROD WIPER
5 04392 1 SPRING
6 04393 1 DETENT
7 04394 1 LATCH
8 04715 2 TAPER SLEEVE
ITEM PART # QTY DESCRIPTION
9 04716 2 SPRING WASHER
10 04717 1 LATCH BOLT
11 04780 1 BACK UP WASHER
12 08856 1 HEX BUSHING 1" -
IF ORDERING HEX
BUSHING YOU MUST
ORDER COMPLETE
FOOT ASSY 08856
13 08856 1 BREAKER FOOT
U/W - IF ORDERING
BREAKER FOOT
YOU MUST ORDER
COMPLETE FOOT
ASSY 08856

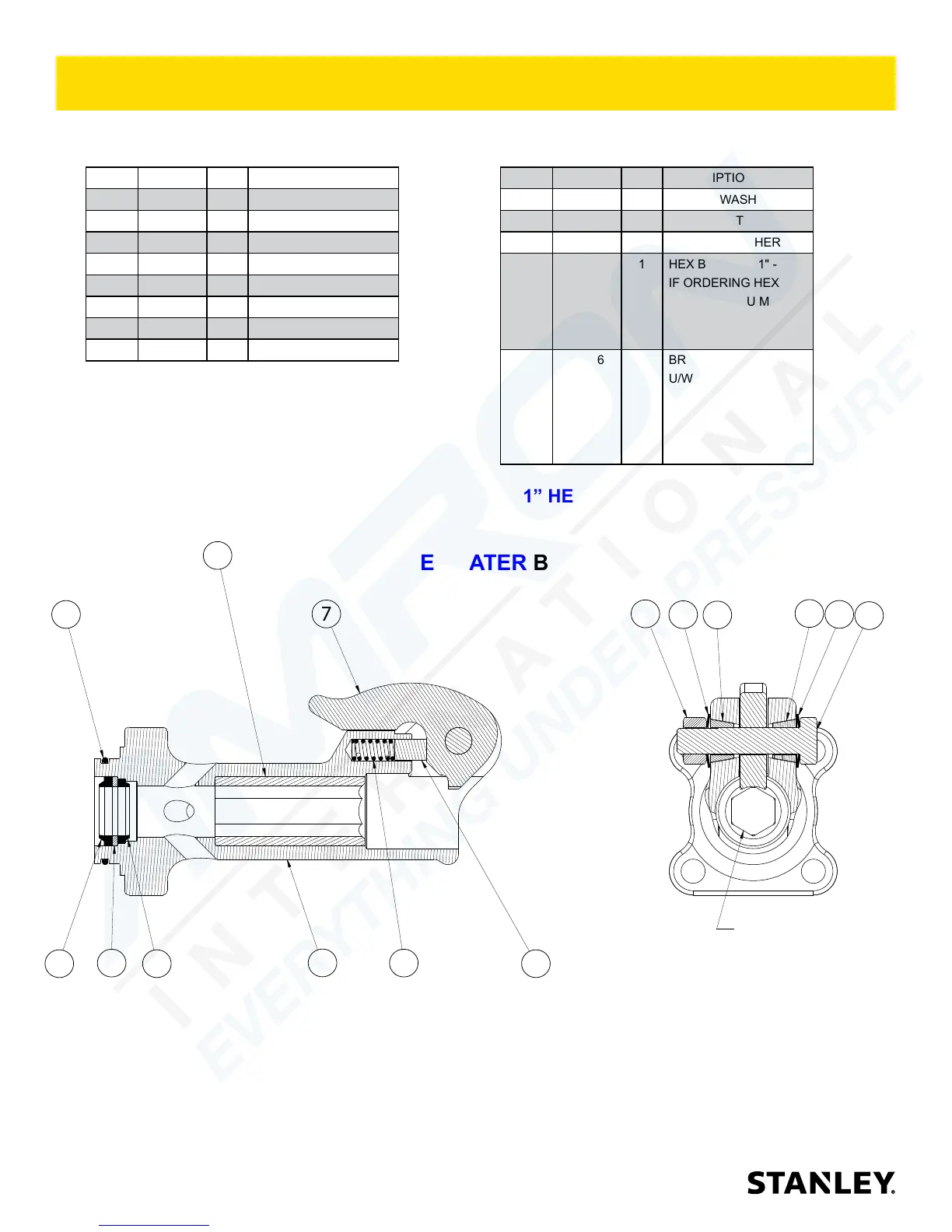

BREAKER FOOT ASSEMBLY (UNDERWATER) P/N-08856 (MODELS BR45350)
08856 Assembly Includes Items 1 through 13 Below.
1” HEX
ALIGN HEX AS SHOWN
6
8
3
7
9
10
12
13
11
2
1
5
4
9
8
UNDERWATER BREAKER
FOOT ASSY
NOTE: IF YOU ARE REPLACING THE INSERT,
BREAKER FOOT OR HEX BUSHING YOU MUST
PURCHASE A COMPLETE BREAKER FOOT
ASSEMBLY P/N-72931
