Stanley BR45 - Breaker Foot Assembly 07899

BR45 User Manual ◄ 25
7/8” HEX
ITEM PART # QTY DESCRIPTION
1 07899 1 HEX BUSHING - IF OR-
DERING HEX BUSH-
ING YOU MUST ORDER
COMPLETE FOOT ASSY
07899
2 02022 1 O-RING
3 04374 1 HEX NUT
4 04386 1 CUP SEAL
5 04387 1 ROD WIPER
6 04392 1 SPRING
ITEM PART # QTY DESCRIPTION
7 04393 1 DETENT
8 04394 1 LATCH
9 04715 2 TAPER SLEEVE
10 04716 2 SPRING WASHER
11 04717 1 LATCH BOLT
12 04780 1 BACK UP WASHER
13 07899 1 BREAKER FOOT - IF
ORDERING BREAKER
FOOT YOU MUST OR-
DER COMPLETE FOOT
ASSY 07899

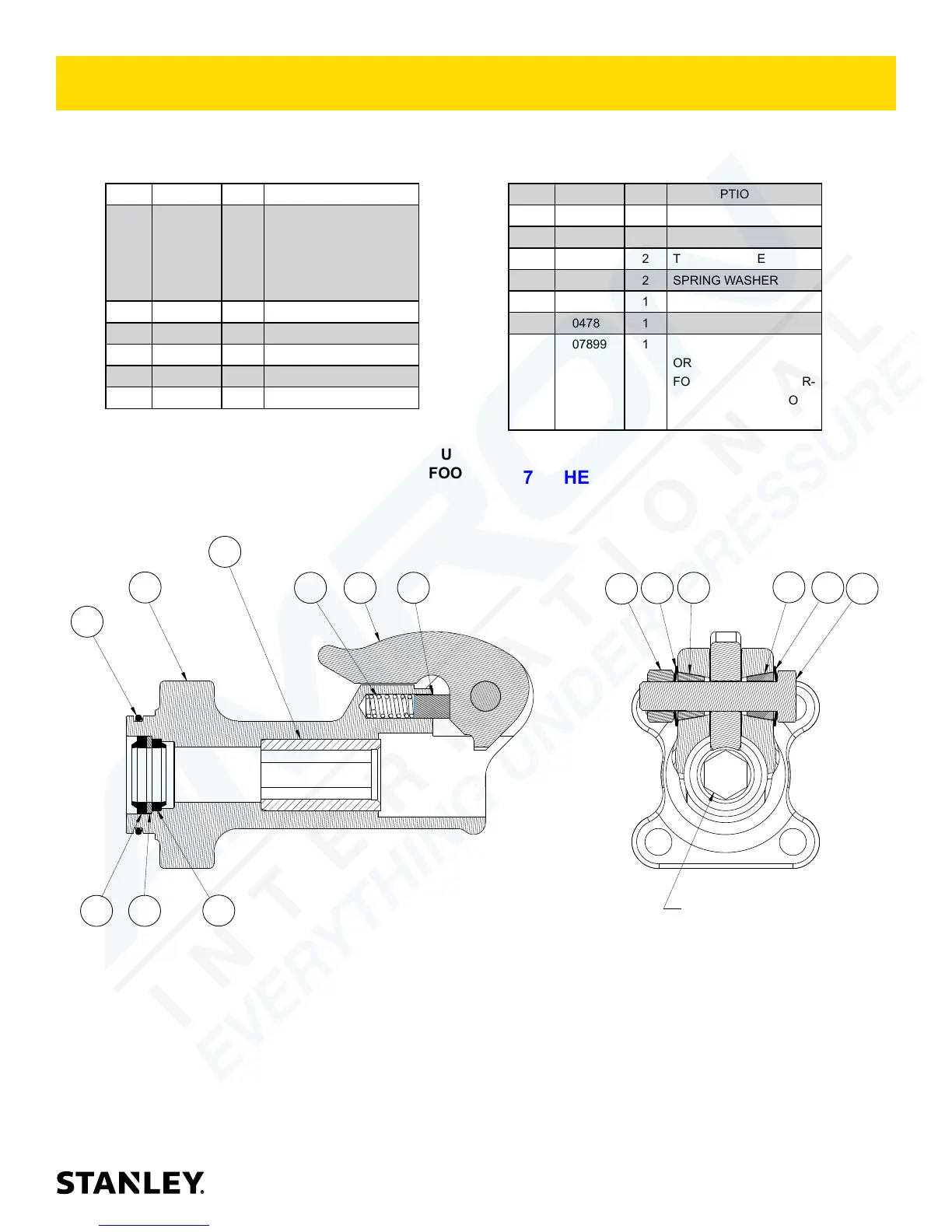

BREAKER FOOT ASSEMBLY (STANDARD) P/N-07899 (MODEL BR45110)
07899 Assembly Includes Items 1 through 13 Below.
BREAKER FOOT ASSEMBLY 07899
9
ALIGN HEX AS SHOWN
6
8
3
7
9
10
10
12
13
11
2
1
5
4
NOTE: IF YOU ARE REPLACING THE INSERT,
BREAKER FOOT OR HEX BUSHING YOU MUST
PURCHASE A COMPLETE BREAKER FOOT
ASSEMBLY P/N-72931
