Stanley BR45 - Breaker Foot Assembly 72931

30 ► BR45 User Manual
BREAKER FOOT ASSEMBLY 72931
1-1/4” HEX
ITEM PART # QTY DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 SPRING
3 01837 1 LATCH
4 02022 1 O-RING
5 04386 1 CUP SEAL
6 04387 1 ROD WIPER
7 72931 1 HEX BUSHING 1-1/4" - IF
ORDERING HEX BUSHING
YOU MUST ORDER COM-
PLETE FOOT ASSY 72931
ITEM PART # QTY DESCRIPTION
8 04780 1 BACK UP WASHER
9 04983 1 FOOT LATCH BOLT
10 04984 1 NYLOCK NUT
11 04985 2 SPRING WASHER
12 72931 1 INSERT - IF ORDERING THE
INSERT YOU MUST ORDER
COMPLETE FOOT ASSY
72931
13 08411 1 DETENT
14 72931 1 BREAKER FOOT - IF OR-
DERING BREAKER FOOT
YOU MUST ORDER COM-
PLETE FOOT ASSY 72931

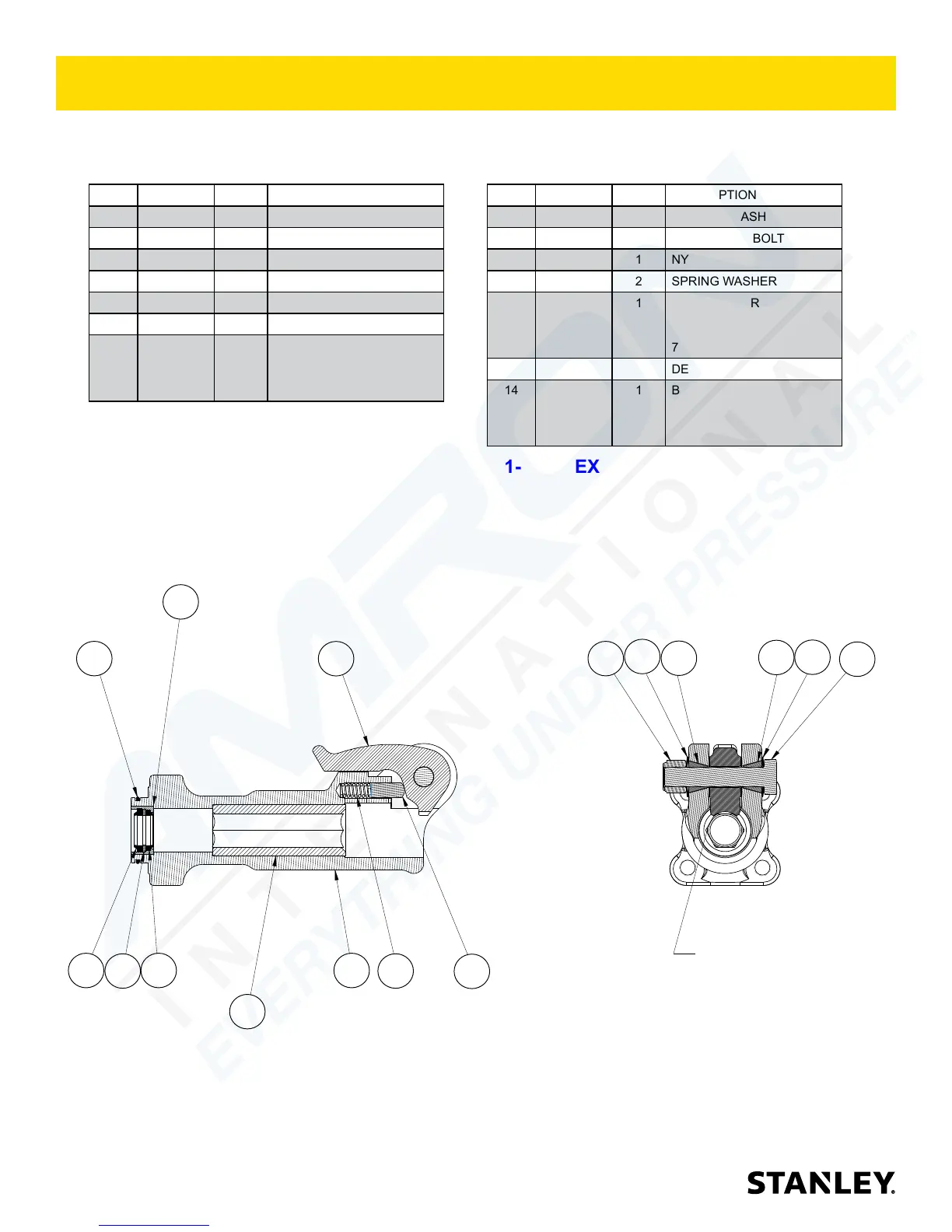

BREAKER FOOT ASSEMBLY (STANDARD) P/N-72931 (MODEL BR45130)
72931 Assembly Includes Items 1 through 14 Below.
NOTE: IF YOU ARE REPLACING THE INSERT, BREAKER
FOOT OR HEX BUSHING YOU MUST PURCHASE A COM-
PLETE BREAKER FOOT ASSEMBLY P/N-72931
ALIGN HEX AS SHOWN
6
3
7
9
10
12
13
11
2
1
5
4
8
1
14
11
