Stanley BR45 - Breaker Foot Assembly 62334

BR45 User Manual ◄ 29
BREAKER FOOT ASSEMBLY 62334
ITEM PART # QTY DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 SPRING
3 01837 1 LATCH
4 02022 1 O-RING
5 62334 1 HEX BUSHING 1-1/8"
- IF ORDERING HEX
BUSHING YOU MUST
ORDER COMPLETE
FOOT ASSY 62334
6 04386 1 CUP SEAL
7 04387 1 ROD WIPER
8 04780 1 BACK UP WASHER
ITEM PART # QTY DESCRIPTION
9 04983 1 FOOT LATCH BOLT
10 04984 1 NYLOCK NUT
11 04985 2 SPRING WASHER
12 62334 1 INSERT - IF ORDER-
ING THE INSERT
YOU MUST ORDER
COMPLETE FOOT
ASSY 62334
13 08411 1 DETENT
14 62334 1 BREAKER FOOT - IF
ORDERING BREAK-
ER FOOT YOU MUST
ORDER COMPLETE
FOOT ASSY 62334

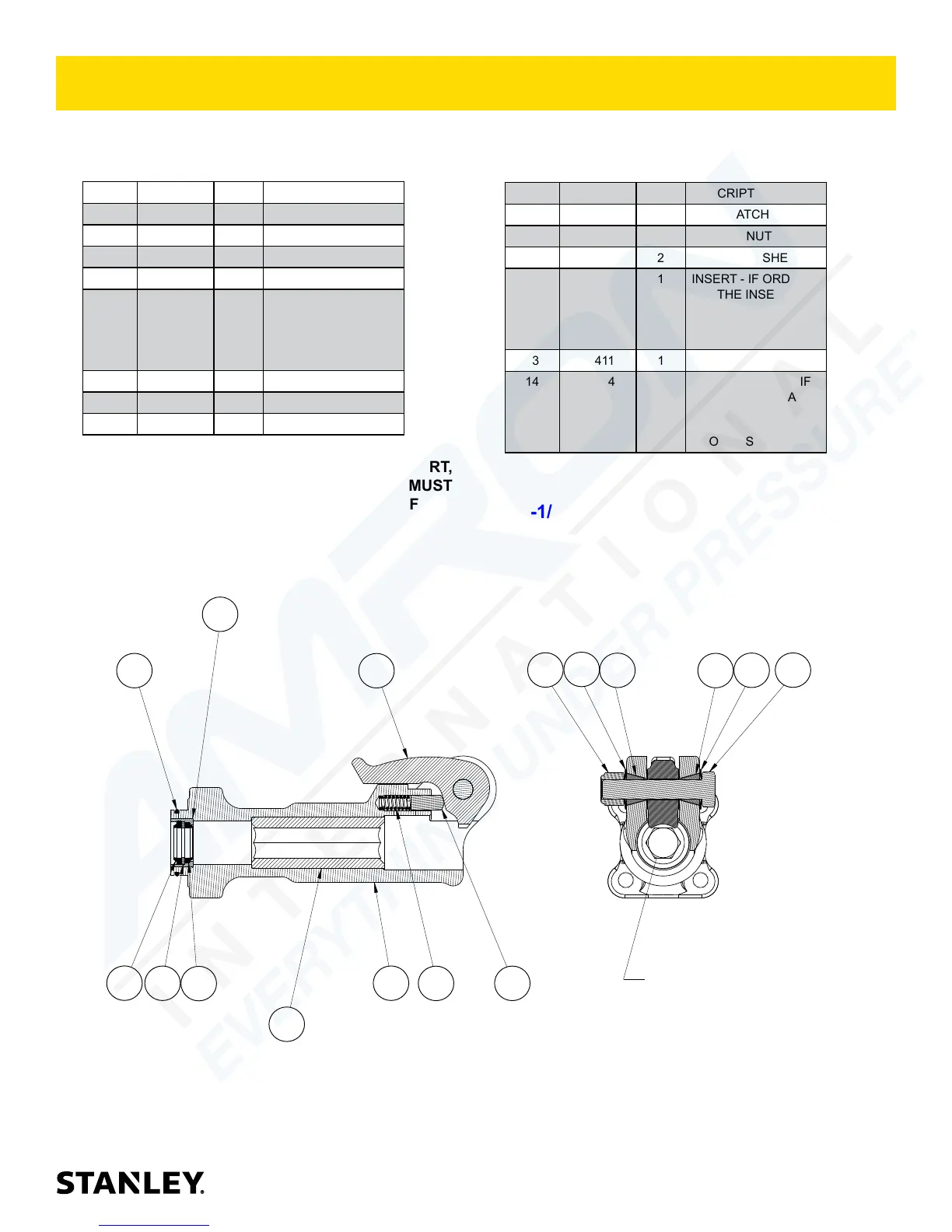

BREAKER FOOT ASSEMBLY (STANDARD) P/N-62334 (MODELS BR45120 and BR45120D)
62334 Assembly Includes Items 1 through 14 Below.
1-1/8” HEX
ALIGN HEX AS SHOWN
6
3
7
9
10
12
13
11
2
1
5
4
8
1
14
11
NOTE: IF YOU ARE REPLACING THE INSERT,
BREAKER FOOT OR HEX BUSHING YOU MUST
PURCHASE A COMPLETE BREAKER FOOT
ASSEMBLY P/N-72931
