BR45 User Manual ◄ 27

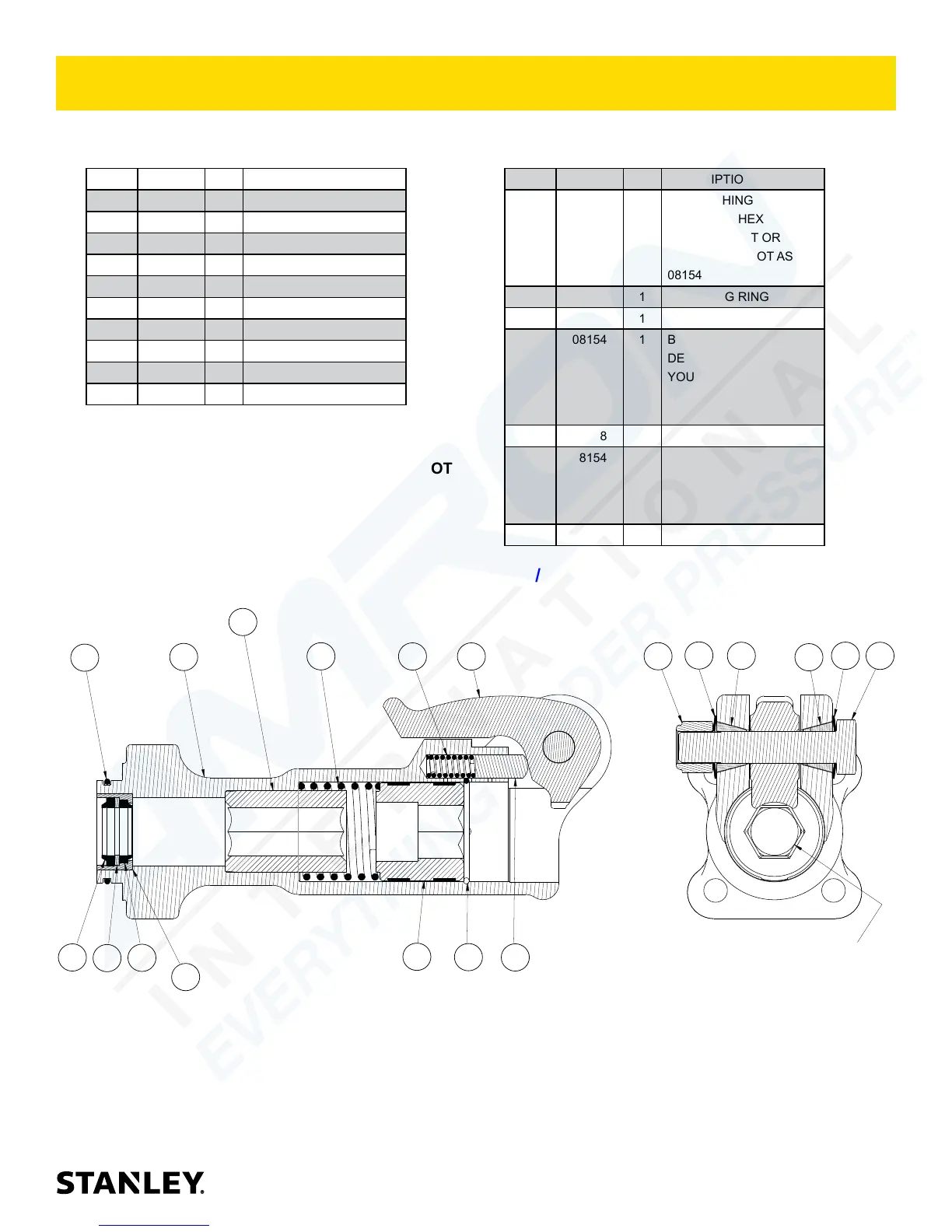

BREAKER FOOT ASSEMBLY 08154
ITEM PART # QTY DESCRIPTION
1 01269 2 TAPER SLEEVE
2 01744 1 SPRING
3 01837 1 LATCH
4 02022 1 O-RING
5 04386 1 CUP SEAL
6 04387 1 ROD WIPER
7 04780 1 BACK UP WASHER
8 04983 1 FOOT LATCH BOLT
9 04984 1 NYLOCK NUT
10 04985 2 SPRING WASHER
BREAKER FOOT ASSEMBLY (EASY-RIDE) P/N-08154 (MODELS BR45120E and BR45125S)
08154 Assembly Includes Items 1 through 17 Below.
ITEM PART # QTY DESCRIPTION
11 08154 1 HEX BUSHING 1-1/8" - IF
ORDERING HEX BUSH-
ING YOU MUST ORDER
COMPLETE FOOT ASSY
08154
12 07522 1 RETAINING RING
13 08115 1 COLLAR SUPPORT ASSY.
14 08154 1 BREAKER FOOT - IF OR-
DERING BREAKER FOOT
YOU MUST ORDER
COMPLETE FOOT ASSY
08154
15 08158 1 SPRING
16 08154 1 INSERT - IF ORDERING
THE INSERT YOU MUST
ORDER COMPLETE
FOOT ASSY 08154
17 08411 1 DETENT
1-1/8” HEX
17
9
ALIGN HEX AS SHOWN
6
3
7
1
10
10
14
13
11
2
1
5
4
8
16
12
15
NOTE: IF YOU ARE REPLACING THE INSERT,
BREAKER FOOT OR HEX BUSHING YOU MUST
PURCHASE A COMPLETE BREAKER FOOT
ASSEMBLY P/N-72931
