Compulevel
TM
Measurement system • 4
COMPULEVEL
TM
Basics continued
To use COMPULEVEL
TM
:
1) Secure the base unit on its back at any convenient location and pull
from the reel ample cord to cover the area to be measured. The cord
will communicate elevation information from the base unit to the
measurement module.
2) If desired, attach the unipod to the measurement module to avoid
bending to measure. The unipod is not required for operation.
3) Turn on the unit and zero with the ZERO button at any site reference or
benchmark within COMPULEVEL’s 200’ horizontal, and + 20’ vertical
range. Although it is not necessary for the base unit to be level, it must
be secure.
Note: If the base unit moves, you must re-zero the measurement module
at the bench mark before continuing.

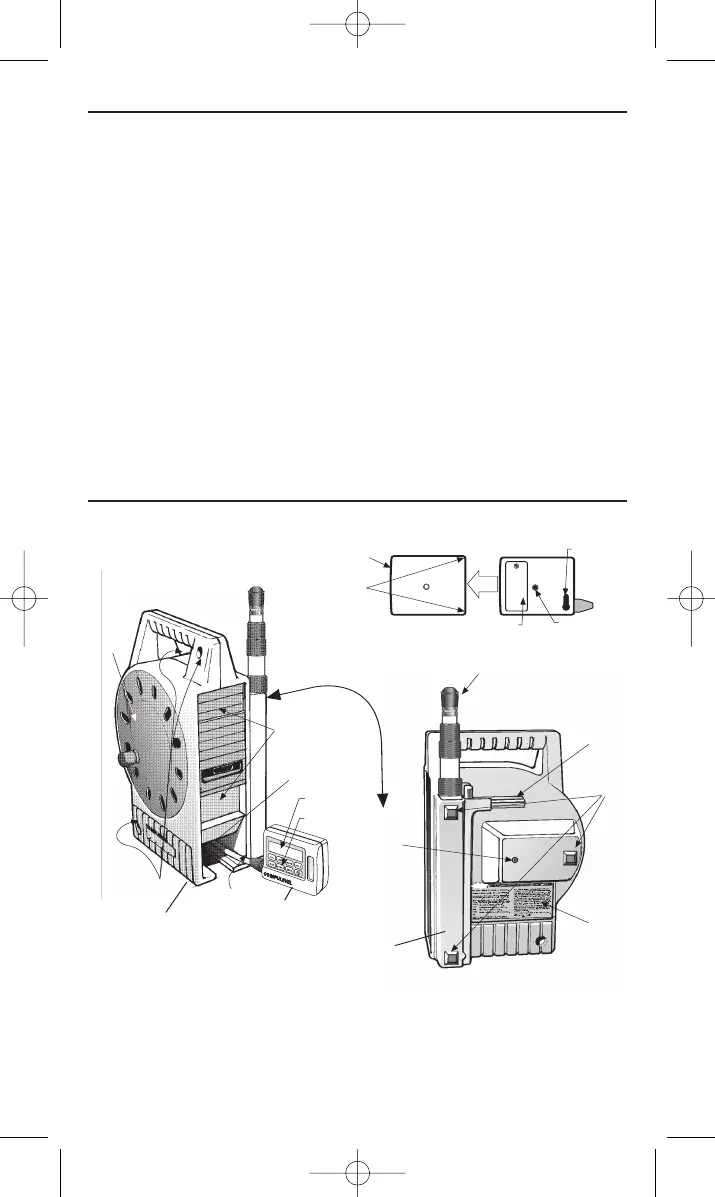

Parts of the COMPULEVEL
TM
Serial Port
Uni-Pod port
Battery
Boot
To remove the boot:
1. Place against chest
2. Pull back 1” with 4 fingernails each side.
3. Grip measurement module and boot and pull off.
Cord
Reel
Storage
Measur
ement module
docking ar
ea
Display
Keypad
Staking
locations*
Cord
Reel
retaining
scr
ew
Uni-pod
T
wo
stakes
Three
feet
Quick
r
efer
ence
guide
BASE UNIT
REAR VIEW
MEASUREMENT
MODULE
BASE UNIT
(THIS IS EASIER WHEN WARMED)
*Stake through handle area if unipod
remains in base unit
T
ypically on back
side during use
