Stanley EX5500 - EX5500 Controller Connector Panel

EX5500 Controller Installation & Configuration Guide
8
EX5500 Controller Connector Panel
The EX5500 Controller has five connectors and two relay switches on the connector
panel.

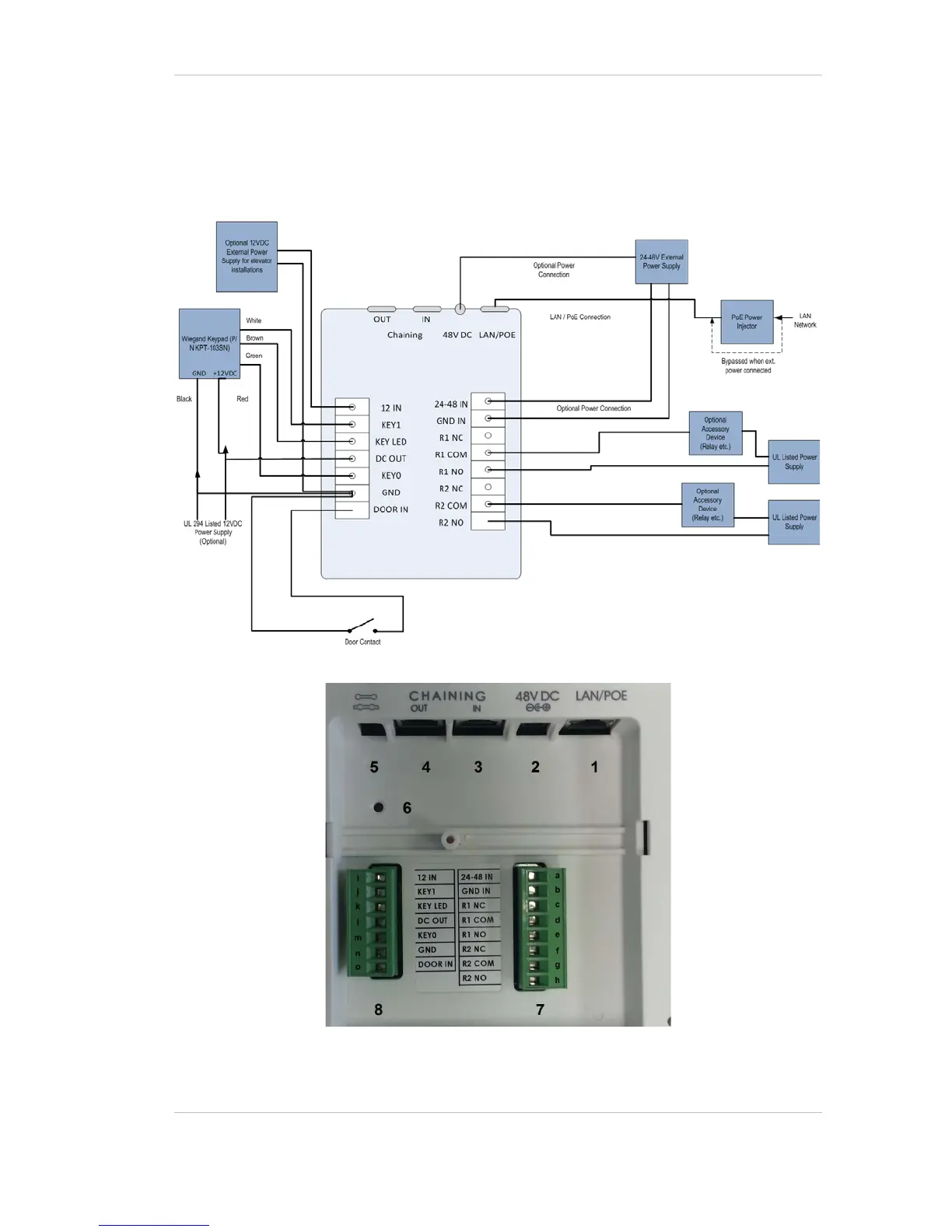

Figure 4: Stanley Healthcare EX5500 Connector Wiring
Figure 5: Stanley Healthcare EX5500 Connectors
