EX5500 Controller Installation & Configuration Guide
24
Mounting the Controller and External LF
Antenna
Fixing the Controller to a Floating Ceiling:
• Attach the device to the false ceiling using the ceiling mounts located on
the bottom casing of the device.

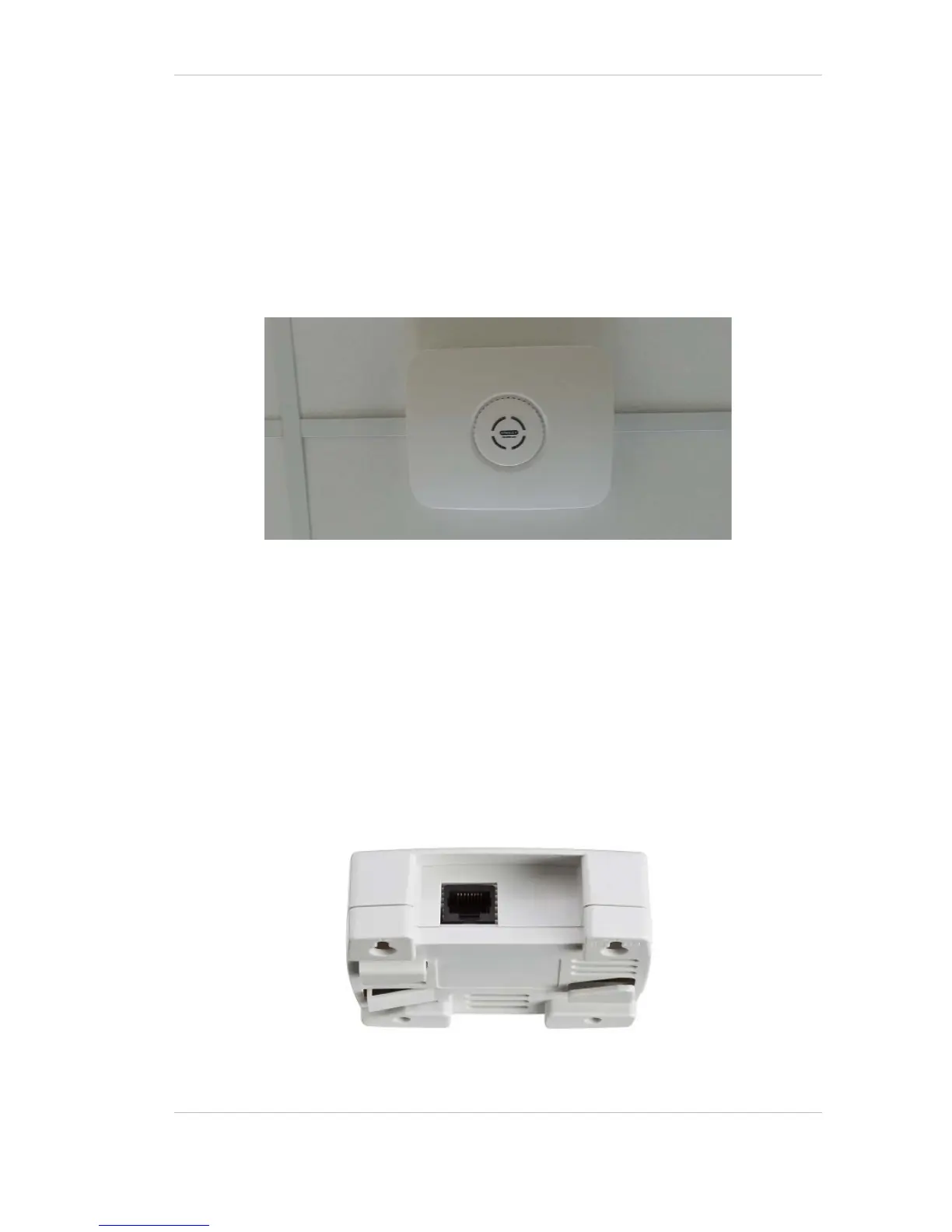

Figure 9: Controller mounted on a Floating Ceilings
Mounting the Controller on a Wall
Mount the Exciter with the Stanley Healthcare logo facing up.
• Attach the Controller to the wall using the two screw mounts on the
bottom casing.
Fixing the External LF Antenna to a Floating Ceiling:
• Attach the antenna to the false ceiling using the ceiling mounts located on
the bottom casing.
Figure 10: External LF Antenna Mounting Brackets
