EX5500 Controller Installation & Configuration Guide
7
• Transmit one of 15 pre-stored messages
• Store up to 15 bytes of data sent to it by the EX5500
Network connectivity
The EX5500 Controller enables remote programming, monitoring, and software
updates by the Location Engine. In addition, the EX5500 can work in an offline
mode, thus eliminating the need for a physical network connection. In the offline
mode however, remote configuration and monitoring is not available.
EX5500 LED Status Indicators
The EX5500 has a single LED that changes color based on the Controller status as
follows:
• Constant Green: The Controller is on and working correctly.
• Blinking Green: The Controller is offline.
• Constant Orange: The Controller is being bypassed, for example by a
keypad operation.
• Constant Red: Controller failure or network down.
• No LED indication: Controller is off.

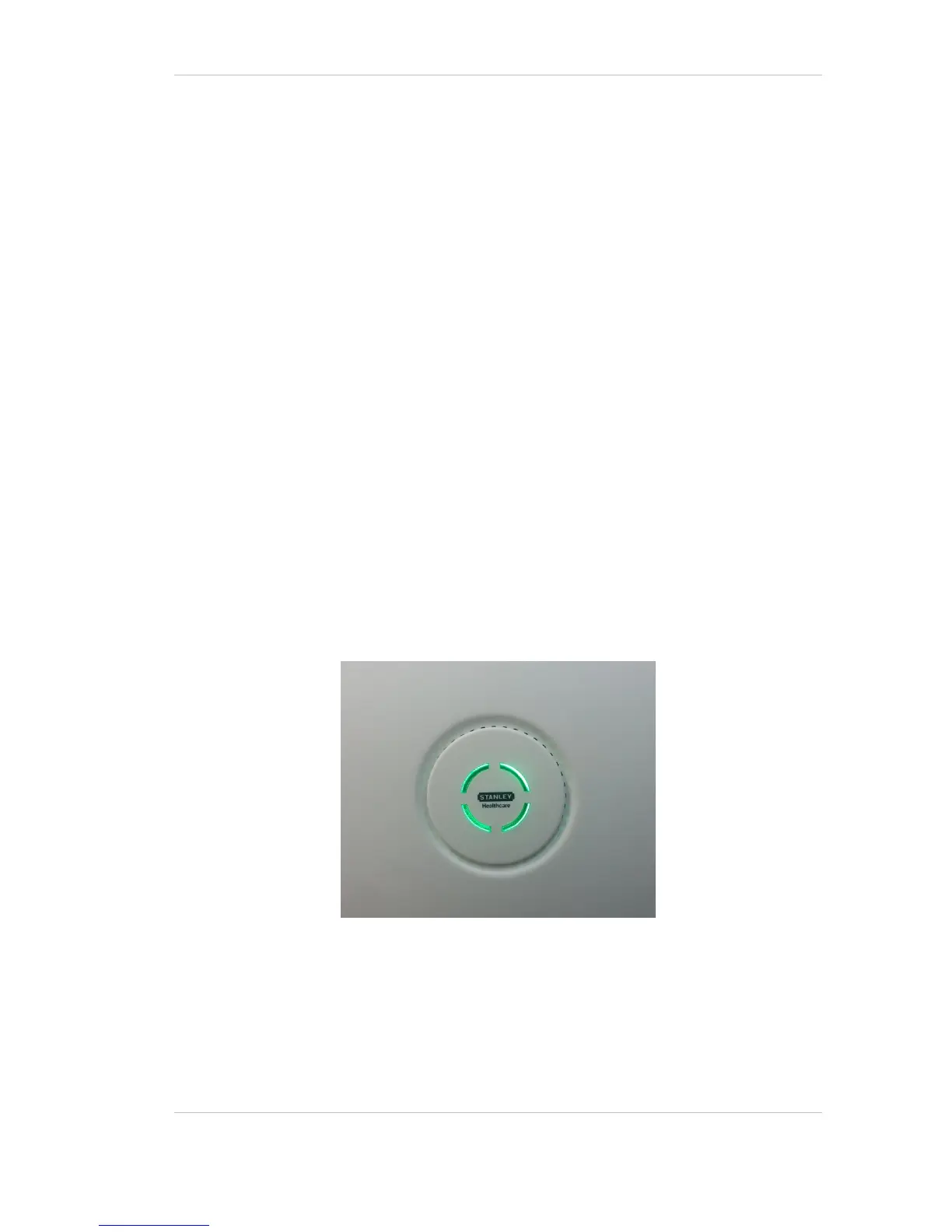

Figure 3: EX5500 LED Indicator
