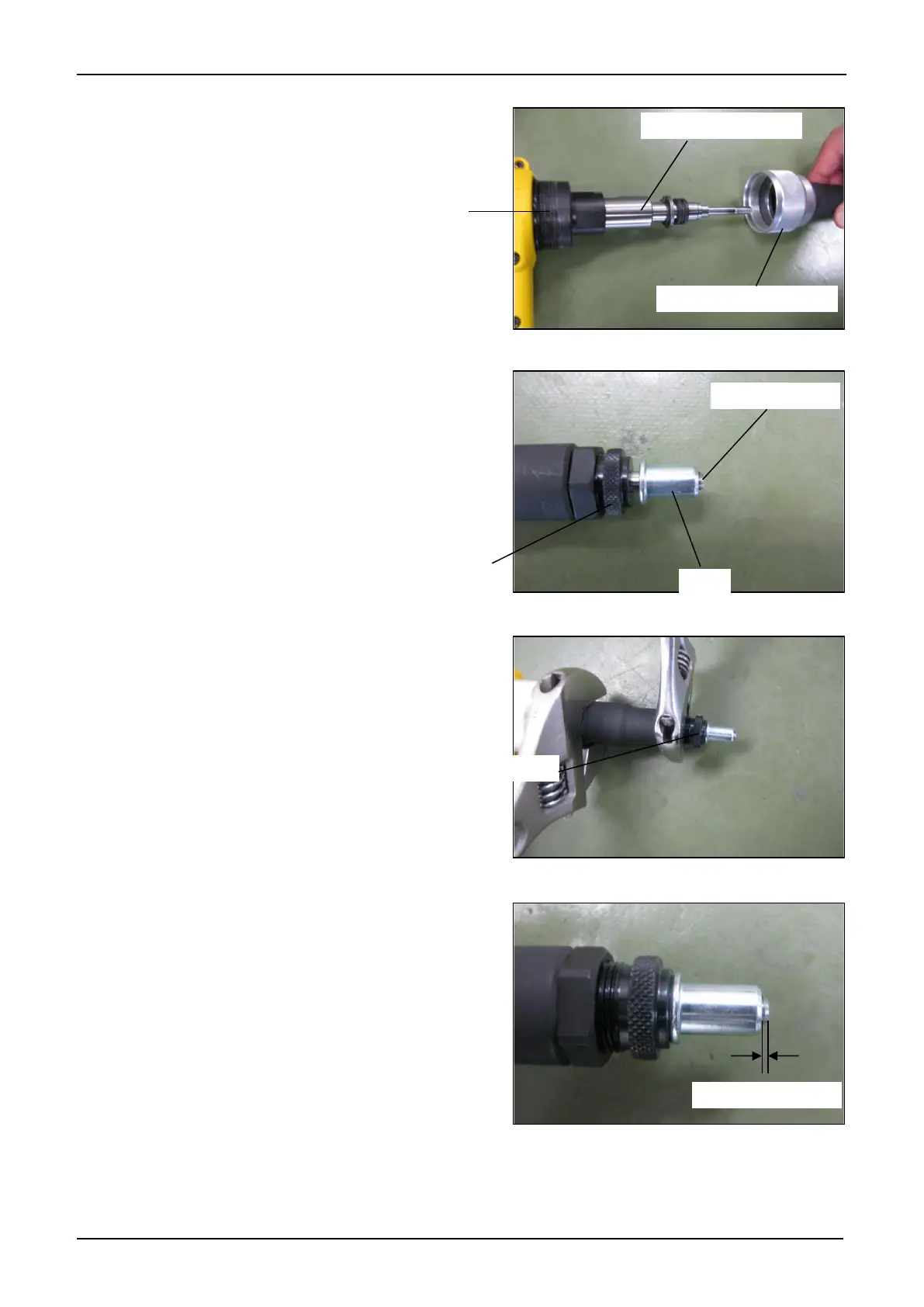

Insert the SA Nose Housing into the
Front Unit and screw it by hand.
Insert nut to check the adjustment of
the Nosepiece and Lock Nut. The
mandrel should a little bit outside of the
nut.
Tighten the Lock Nut and SA Nose
Housing using two wrenches.
The setup of the Nut on mandrel should
look like this. The nut offset from
mandrel must be at range of 0 to 0.5mm
SA Nose Housing
Front Unit
Mandrel’s head
Adjust Nosepiece according
to Nut Specification
Nose Housing Nut
SA Spin Pull Head
Nut
Offset 0 to 0.5mm
