7
ENGLISH
3.
CHANGE SPARE PART
3.1
SA SPIN PULL HEAD

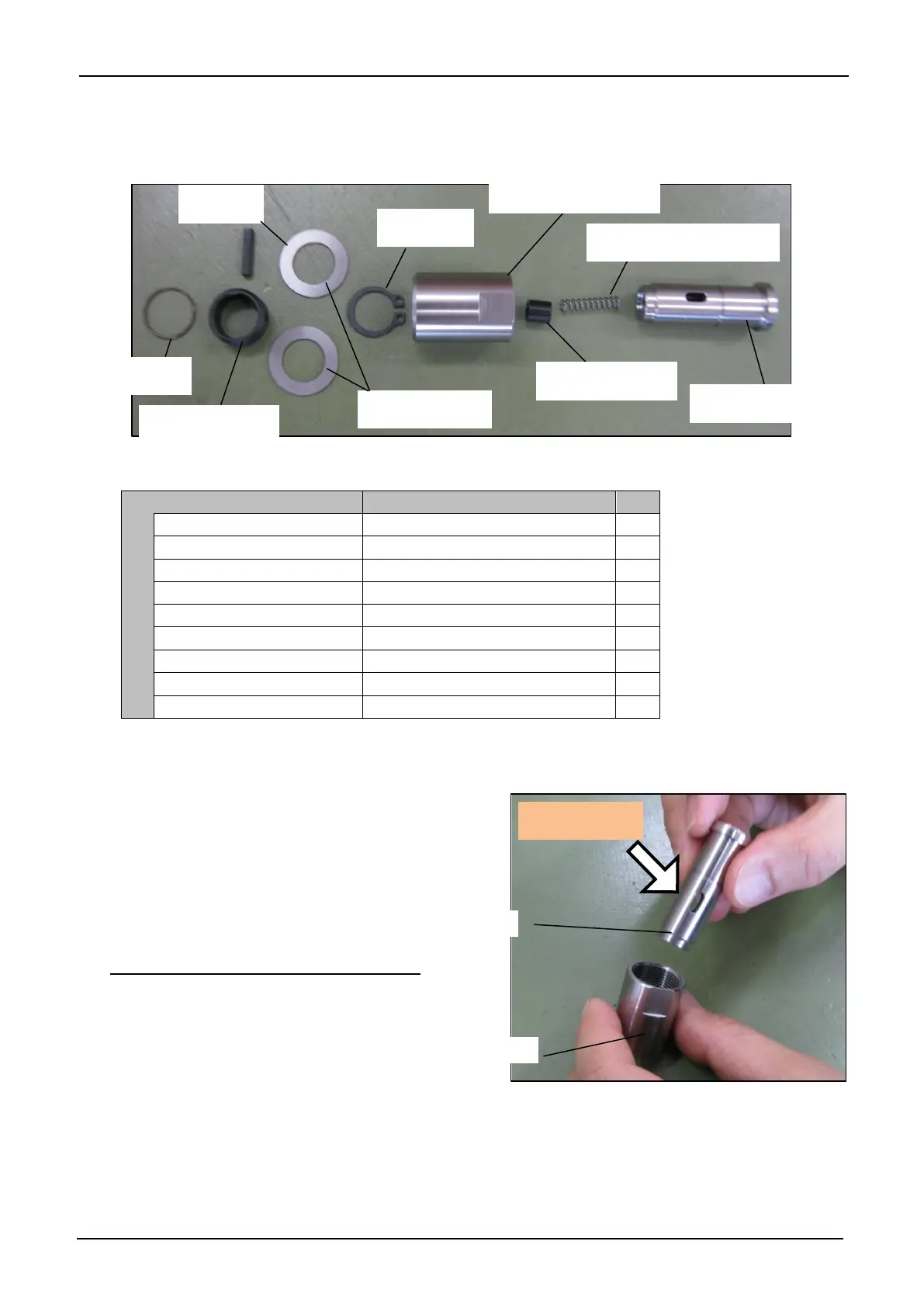

BOM for SA Nose Housing (TNM00155)
SA SPIN PULL HEAD
TNM00155
1
TNM00041
CIRCLIP
1
TNM00042
LOCK PIN
1
TNM00043
LOCK PIN HOLDER
1
TNM00044
THRUST WASHER
2
TNM00045
SNAP RING
1
TNM00046
LOCK PIN PUSHER SPRING
1
TNM00047
SPIN PULL HEAD
1
TNM00048
SPIN PULL HEAD CASE
1
TNM00067
LOCK PIN PUSHER
1
Apply grease on Spin Pull Head. Then,
insert Spin Pull Head into Spin Pull
Head Case
Grease recommended: HIWIN G01
Circlip
Snap Ring
Lock Pin
Thrust Washer
Spin Pull Head
Spin Pull Head Case
Lock Pin Holder
Lock Pin Pusher Spring
Lock Pin Pusher
Spin Pull Head
Apply Grease
Spin Pull Head Case
