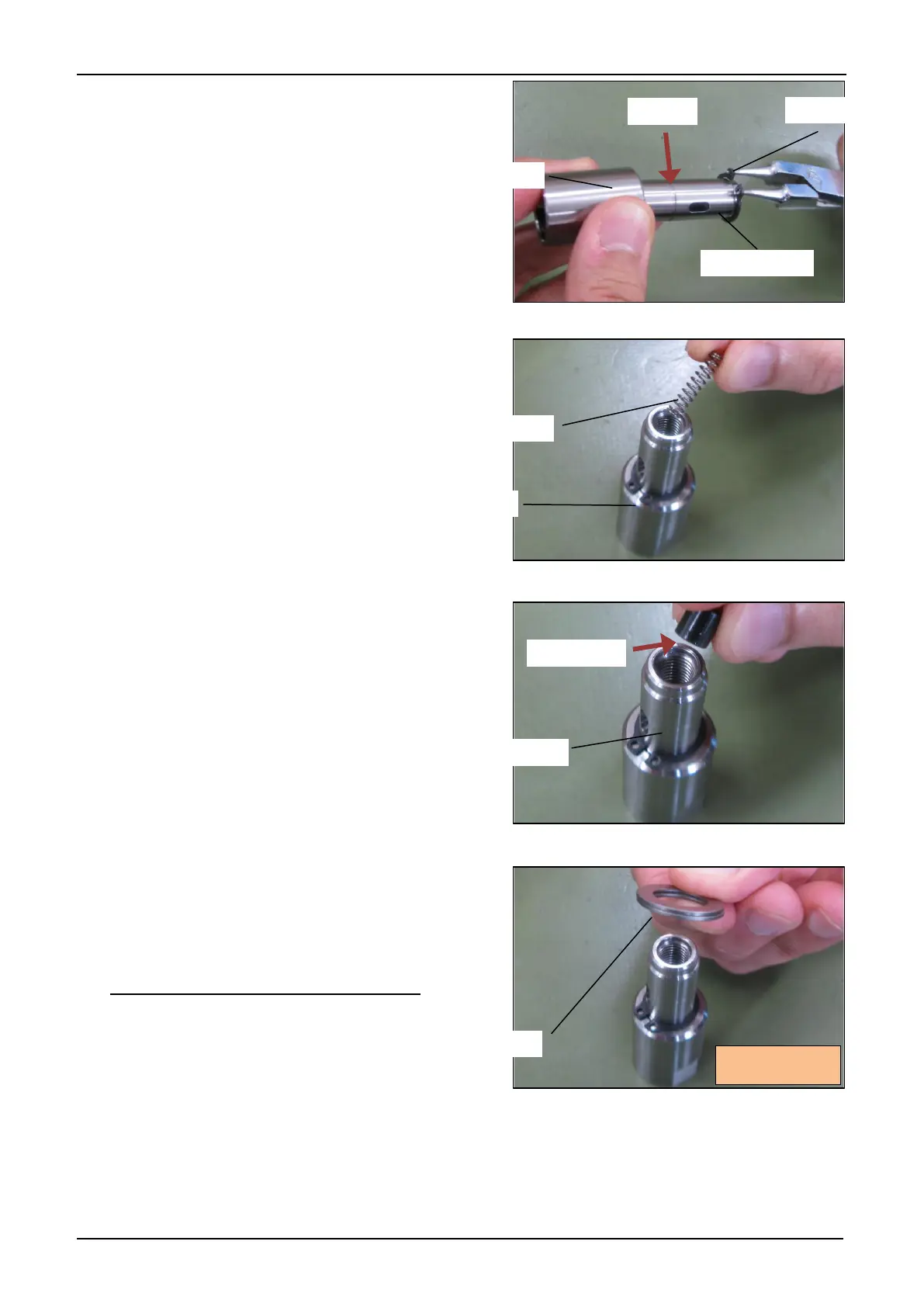

Insert Snap Ring into Spin Pull Head’s
ring slot using a snap ring pliers.
Insert Lock Pin Pusher Spring inside
Spin Pull Head.
Put Lock Pin Pusher on top of the
spring. Bigger side hole should on top
of spring.
Apply grease to all Thrust Washer.
Then, put both of Thrust Washer into
Spin Pull Head.
Grease recommended: HIWIN G01
Spin Pull Head
Spin Pull Head Case
Spring inside Spin Pull Head
Big hole side
2 pieces of Thrust Washer
Spin Pull Head
Lock Pin Pusher Spring
Snap Ring
Ring slot
Apply Grease
