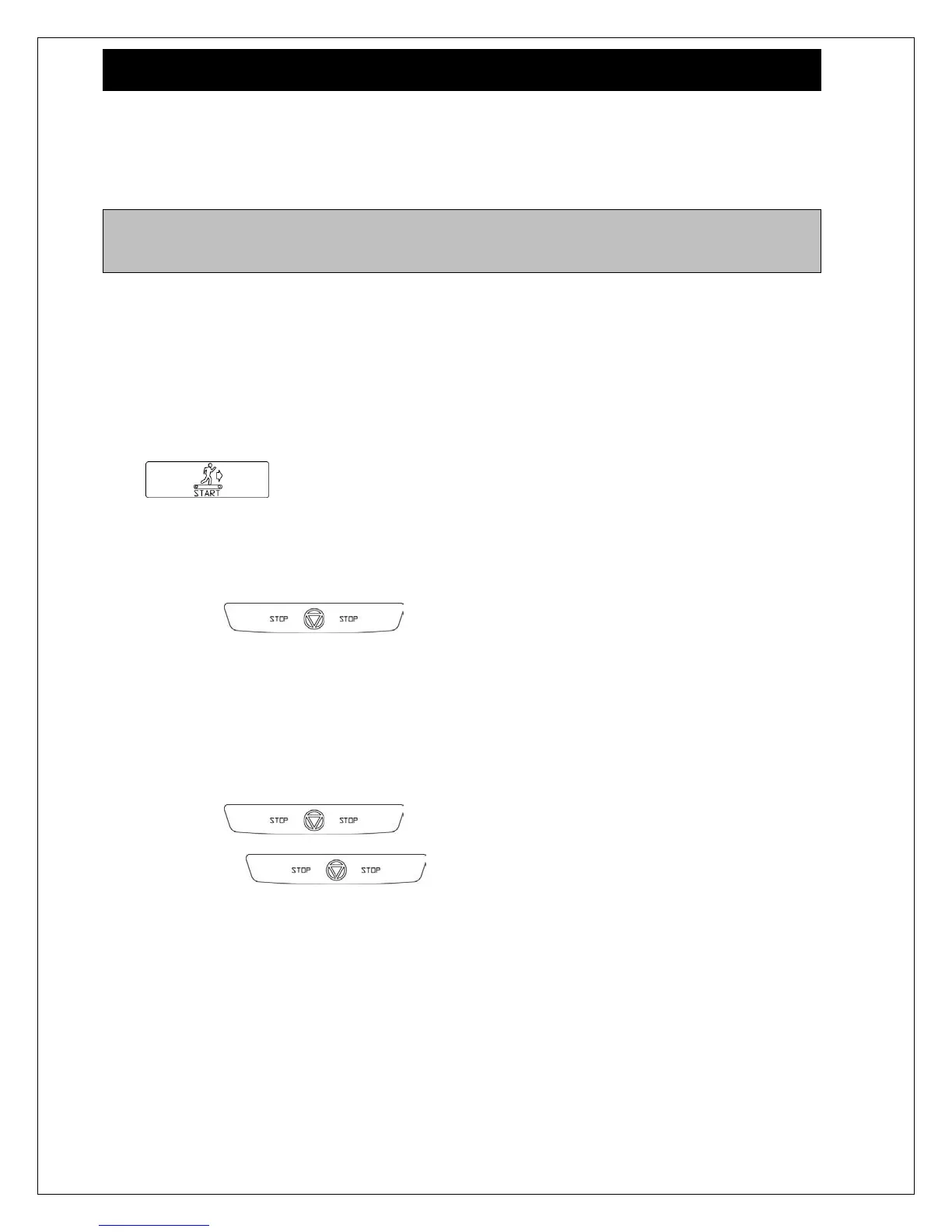

Display Test Mode
Display Test Mode allows you to test the light-emitting diodes (LEDs), it also allows software
version to be displayed. To enter Display Test Mode:
***Caution*** : Do not stand on the running belt while performing these test.
WHEN SHOULD DISPLAY TEST BE ENGAGED?
Display Test should be done if any problems occur with either missing LED segments, a key
fails to respond or when a KEY DN (key down) display code is given.
1. Press and hold the “ 0 ”, “ 2 ” & “ START ” keys together. While holding the “ 0 ” & “
START ” keys down, release the “ 2 ” key.
2. The display will beep and display MAINTENANCE SETTINGS.
3. Press and release the “5 key. Observe the display: DISPLAY TEST. Pressing the
will automatically scroll through all the keys and LED segments.
4.Pressing the “1” key once will display the MCU1 software version. Pressing the SPEED
UP key will verify MCU2 software, FIFO1 and FIFO2.
5. Press the to go back to DISPLAY TEST.
6. Pressing the “2” key once will display KEYBOARD TEST. Press any key on the display
at this point and observe the information window. Verify on the display screen that each key
pressed matches the button pressed.
Note: If display screen does not match the button pressed or does not respond to the key
pressed, then we recommend replacing the keypad.
7. Press the to go back to DISPLAY TEST.
8. Pressing the twice will EXIT DISPLAY TEST.
