BeiJing Starfire Control Technology Co.,Ltd WeChat:18901200180 QQ: 1908817881
18
Chapter 4 processing
This chapter describes the processing process needs to be carried out in the introduction
4.1 pause operation
During the processing, if there is a break of fire, arc, or other situations that need to be suspended, press the button

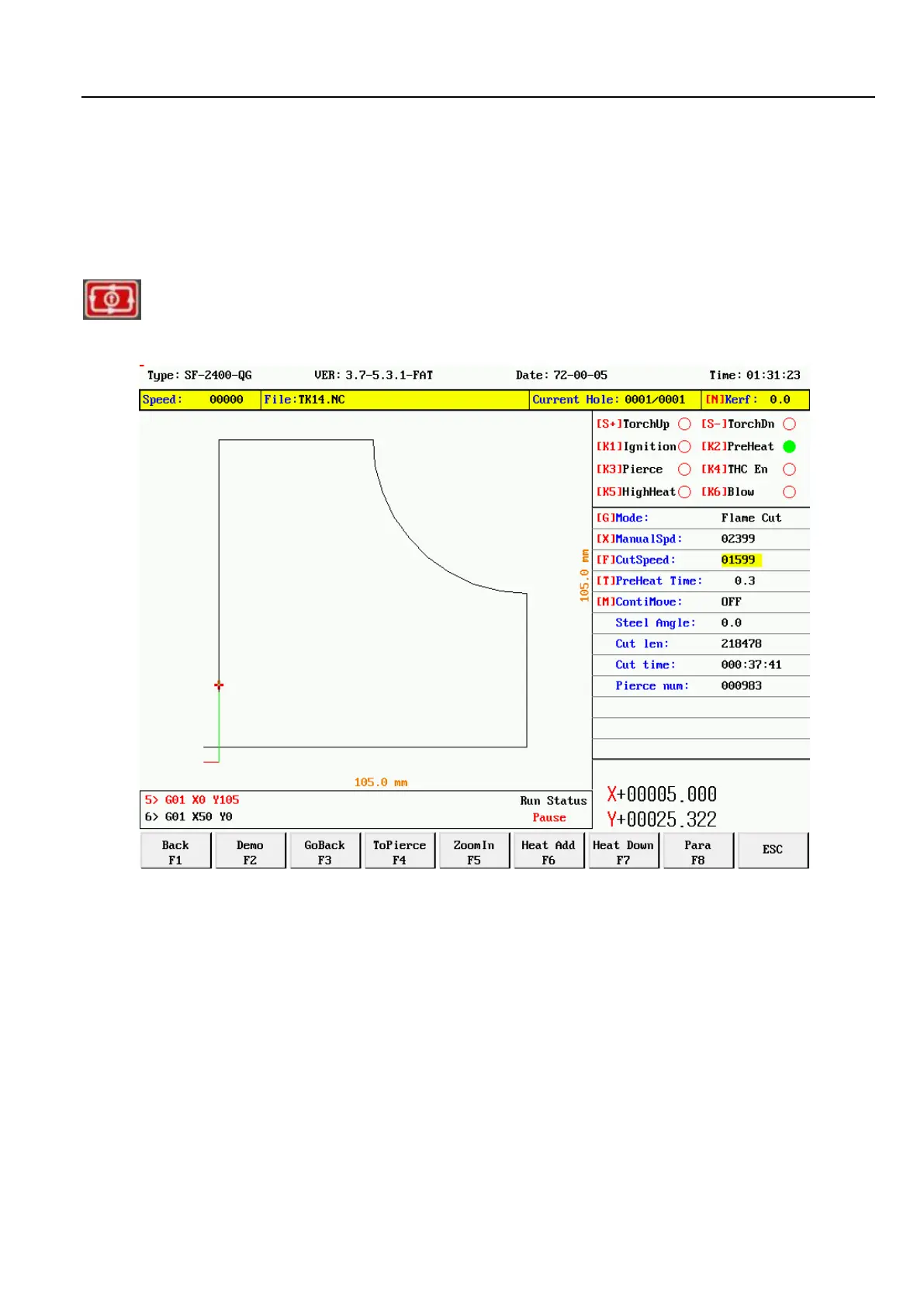

and the system will stop working. The interface is as follows:
[F1] back: the cutting nozzle returns along the original path without cutting;
[F2] advance: the cutting nozzle advances along the cutting path without cutting;
[F3] return parameter: the cutting nozzle returns to the starting point, that is, the starting point of the current
workpiece;
[F4] punch points: jump to other punch points;
[F5] graphic amplification: enlarge graphics;
[F6] increase delay: increase the preheating time by 10 seconds at a time;
[F7] end delay: end the preheating time, skip the remaining preheating time;
