THIRD ANGLE
PROJECTION
*
*
*
2X 815-7111
3X SCI-B014C1210
5X SCI-4008F1230
305-7123
305-7121
305-7122
BRG-105427 (REF)
*
305-7158
315-7137
ORG-134878
315-7138
SCI-B012B1230
WHR-801
305-7113
SCI-4004N1210
SCI-4002C1210
305-7124
WHR-801
SCI-B012B1230
305-7126
305-7114
BRG-013170 (REF)
305-7127
BRG-013170 (REF)
800-7635
MSC-104218
305-7101 (REF)
2X 804-7109
BRG-105420 (REF)
*
*
*
*
*
MSC-104219
*
1
1
APPLY LOCTITE 222.
2
REBALANCE GIMBAL AND APPLY LOCTITE 222
AT TIME OF BALANCING.
1
2
REVISIONS
BY REV. ECO DESCRIPTION DATE APPROVED
MW A 180038 PRODUCTION RELEASE 05/11/18
CP B 180065 ADD INSTRUCTION NOTES 6/21/2018
CP C 180095 ADD MSC-104219 X1 8/9/2018
MW D 180120 DEL: INT-128175 X3, ADD: 804-7109 X2 10/2/2018
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 305-7113 WASHER, GIMBAL STOP 1
2 305-7114 ASSY, GIMBAL TOOL 1
3 305-7121 INNER RACE TUBE, 1
4 305-7122 OUTER RING, GIMBAL, ARCHER2 1
5 305-7123 FLANGE, GIMBAL 1
6 305-7124 FLANGE, GIMBAL, 1
7 305-7126 PIVOT SHAFT, GIMBAL 1
8 305-7127 WASHER, GIMBAL 1
9 305-7158 YOKE, VOLT 1
10 315-7137 HANDLE, QUICK RELEASE 1
11 315-7138 HANDLE,GIMBAL 1
12 800-7635 BRAKE,.055" WALL,.560" TK 1
13 804-7109 SCREW, GIMBAL PIVOT 2
14 815-7111 CAP, YOKE, GIMBAL 2
15 MSC-104218 DRILL SPANNER BIT, #6 1
16 MSC-104219 BIT HOLDER, 1/4" SHANK, MAGNETIC 1
17 ORG-134878 O-RING, 1/16 X 5/8 X 3/4 1
18 SCI-4002C1210 SCW, 4-40 X 1/16, SET_C HEX 1
19 SCI-4004N1210 4-40 X 1/8 SET_C HEX 1
20 SCI-4008F1230 SCW, 4-40 X 1/4 F82º HEX 5
21 SCI-B012B1230 SCW, 8-32 x 3/8 BUT HEX 18-8 SS BLK TEFLON 2
22 SCI-B014C1210 SCW, 8-32 X 7/16 SET CUP SS 3
23 WHR-801 #8 WASHER,SS 2
VOLT COMPATIBLE
305-7120-04
D
C
B
A
B
C
D
123
45678
8
7 65
4
3
2
1
E
F
E
F
305-7120-04
SHEET 1 OF 3

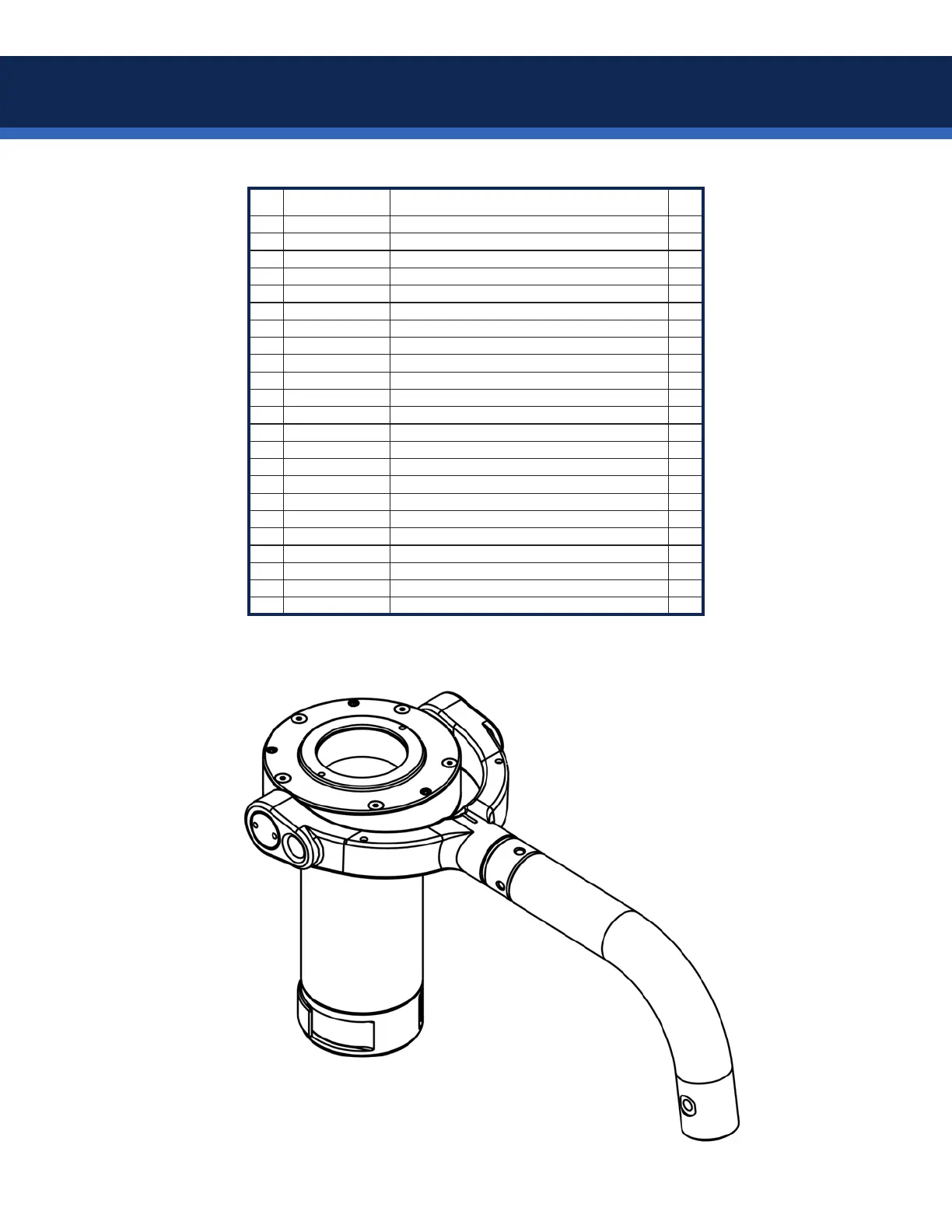

GIMBAL UPGRADE, ARCHER2
5/11/18
10/2/18
5/11/18
R.ORF
R.ORF
MW
D
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:2
WT: 1.9008
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
ENGINEER
CHECKED
FILE NAME:
.0005"
DRAWN
DO NOT SCALE DRAWING
A
MACHINED FILLETS: .003R -.005R
THE TIFFEN COMPANY IS PROHIBITED.
MACHINE FINISH 63 RMS
ANSI Y14.5 2009
PROPRIETARY AND CONFIDENTIAL
CONCENTRICITY: .003 T.I.R.
BREAK SHARP EDGES: .005 - .010
INTERPRET DRAWING PER:
DIMENSIONS ARE IN INCHES AND
APPLY AFTER PROCESS FINISH
TOLERANCES:
FRACTIONAL 1/64
ANGULAR: MACH 1 BEND 1
.X .1"
.XX .01"
.XXX .005"
.XXXX
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE TIFFEN COMPANY. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
NOTES: UNLESS OTHERWISE SPECIFIED
*
*PACKAGED TOGETHER IN PLASTIC ZIPLOC BAG
54
Archer/Archer2
