Installation of Volt complete kit
Swapping gimbals
The M-2 gimbal has been designed to accommodate posts of 1.5 in, 1.58 in and 1.75 in diameter by
incorporating snap-in inserts. The complete Volt kit includes a balanced M-2 gimbal with Volt motor
assembly installed on your chosen side, ready to be installed.
Start by removing the top stage of your rig. Refer to the user manual of your rig, or consult service
experts if this is the rst time disassembling your system. With the top stage removed, you should be
able to slide your old gimbal off.

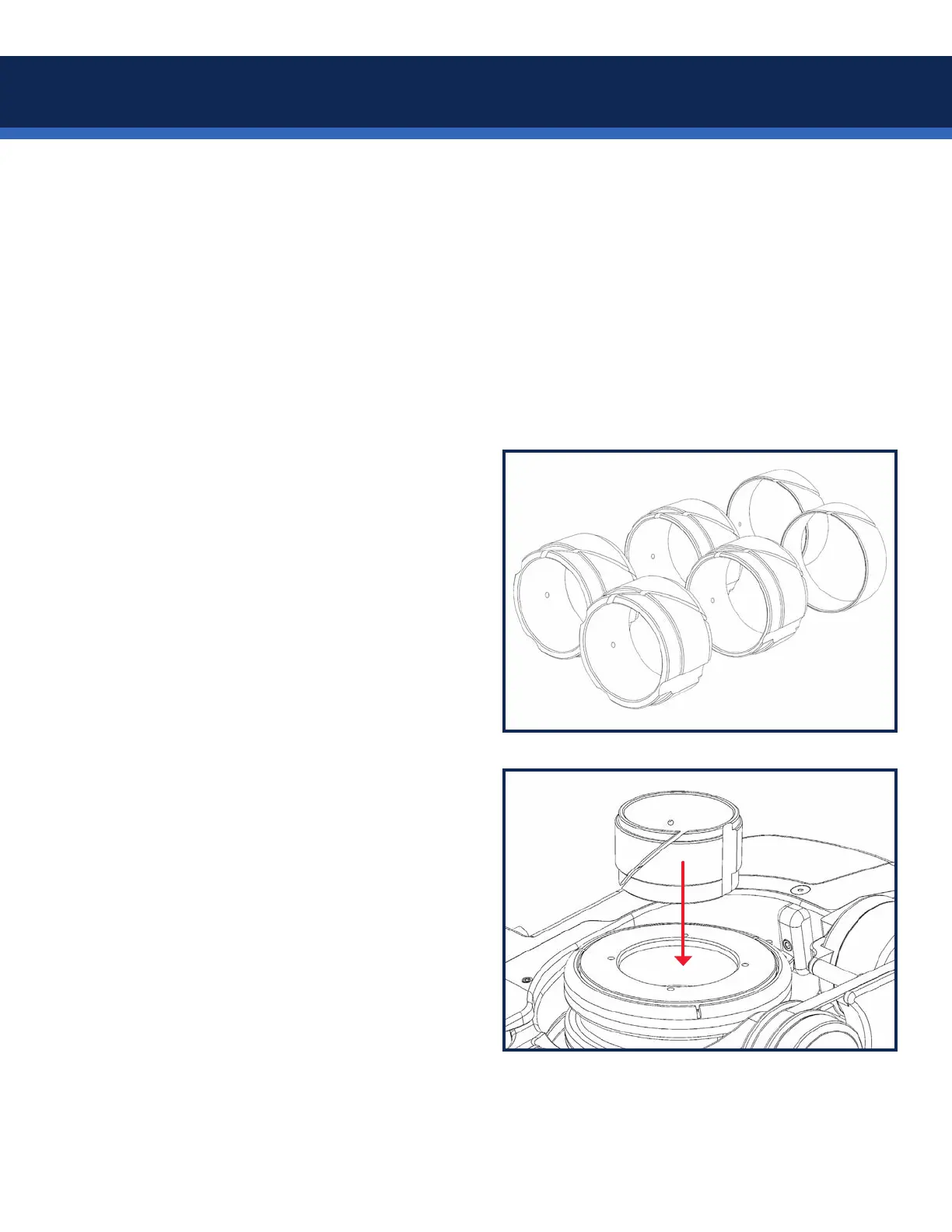

Select the appropriate pair of M-2 gimbal
inserts for your post.
They are matched sets, one for the top
and one for the bottom of the gimbal.
If there’s any doubt which set to install, use
a set of calipers to accurately measure the
post diameter in a few places.
Install the top post insert.
They just squeeze in with little effort.
For 1.5” and 1.58” posts, the shorter ange is
oriented UP, so the insert is ush with the top of
the gimbal when installed.
Radial alignment does not matter.
The insert should *click* into place.
