28
Installation

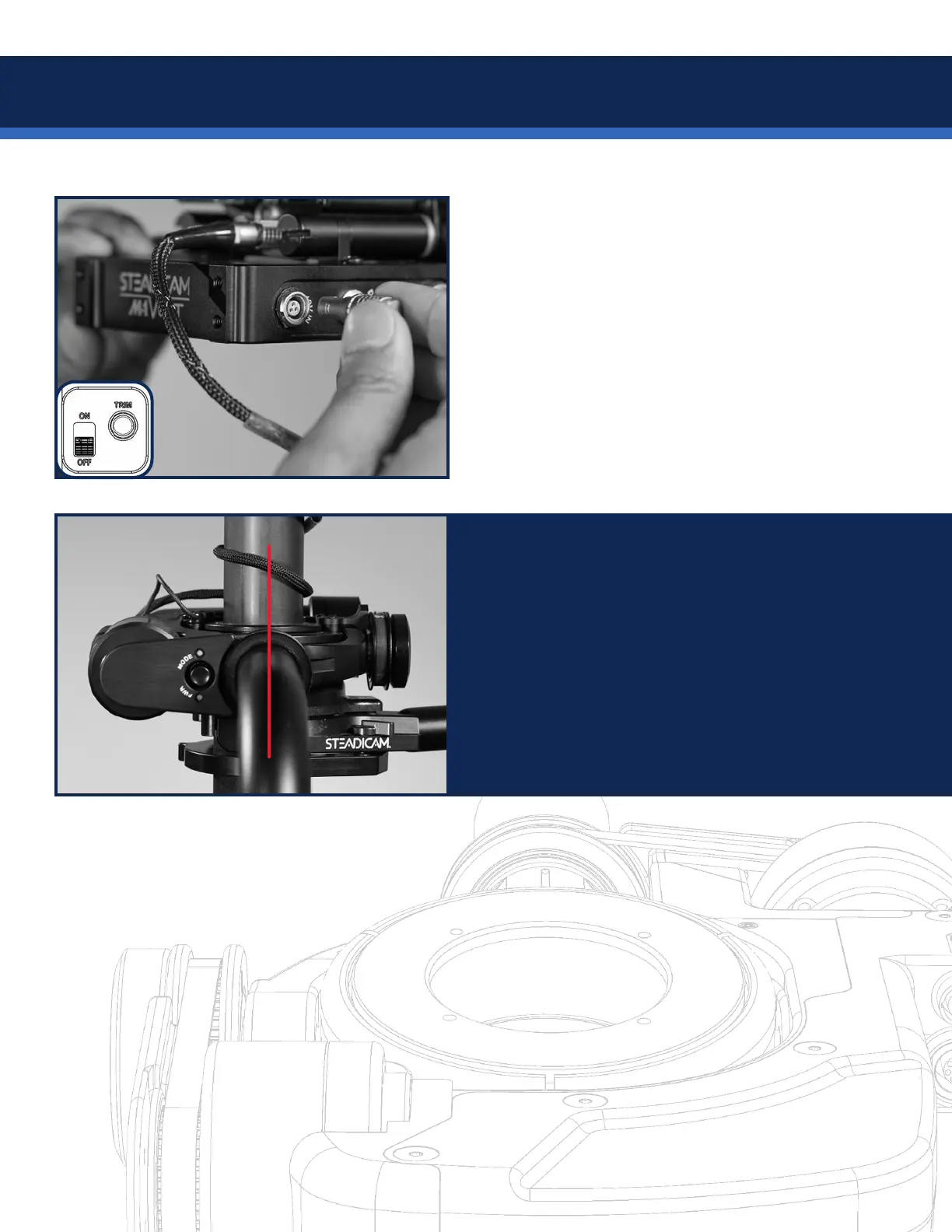

Ensure the power switch is in the OFF position
and connect the short power cable from sled
power to the 12V IN port.
NOTE: If you use an aftermarket power cable,
conrm the polarity is correct. Volt is protected
against reverse voltage, but won’t work very well
without power.
REMEMBER: If your control box is mounted
with the knobs to the RIGHT (regular), you’ll
align the gimbal handle to the REAR when
powering on later.
However, if your box is mounted with the knobs
to the LEFT (goofy), you’ll align the gimbal
handle to the FRONT when powering on later.
See page 11 about power up.
