Adding the Control Box
All Volt upgrades mount the control box to the nose of the sled. Remember, the knobs may face either
side, typically to accommodate regular or goofy operators, but this will impact how you align the
encoder when powering on the sled each time.
Mounting the Volt control box onto an integrated rod system, like on an M-1 or M-2, is easy. If you’re
using rod adapters or MDR plates on other rigs, make sure the control box is afxed rigidly to the sled.
Any vibration can lead to unwelcome oscillations, so get it tight.
NOTE: for instructions on installing an internal Volt control board into an M-2 sled, see the M-2 manual.
Installation

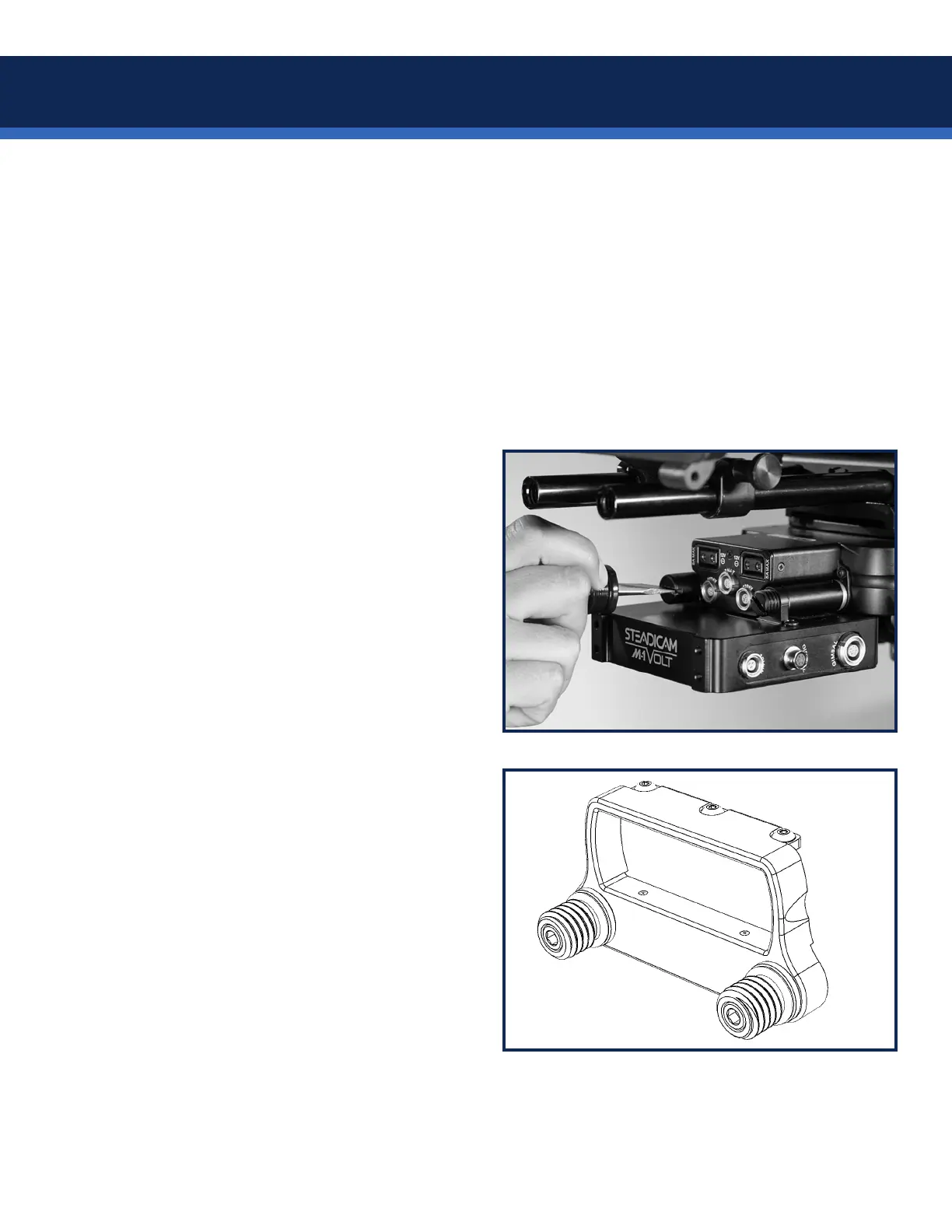

Add the included short rod extensions to the
nose box of your M-1 or M-2 top stage and
tighten with a at head screwdriver.
Slide on the control box, with knobs oriented
to your preferred side, and secure with the
threaded rod caps. Tighten with a at head
screwdriver.
Ultra-2, Clipper and Archer rigs may utilize the
nose box adapter.
Remove the three Allen screws from the top of
your nose box, slide the adapter onto the rig and
fasten with the included Allen screws.
Snug down the assembly by tightening the two
set screws on the bottom.
