Steadicam Volt - Electronics

73

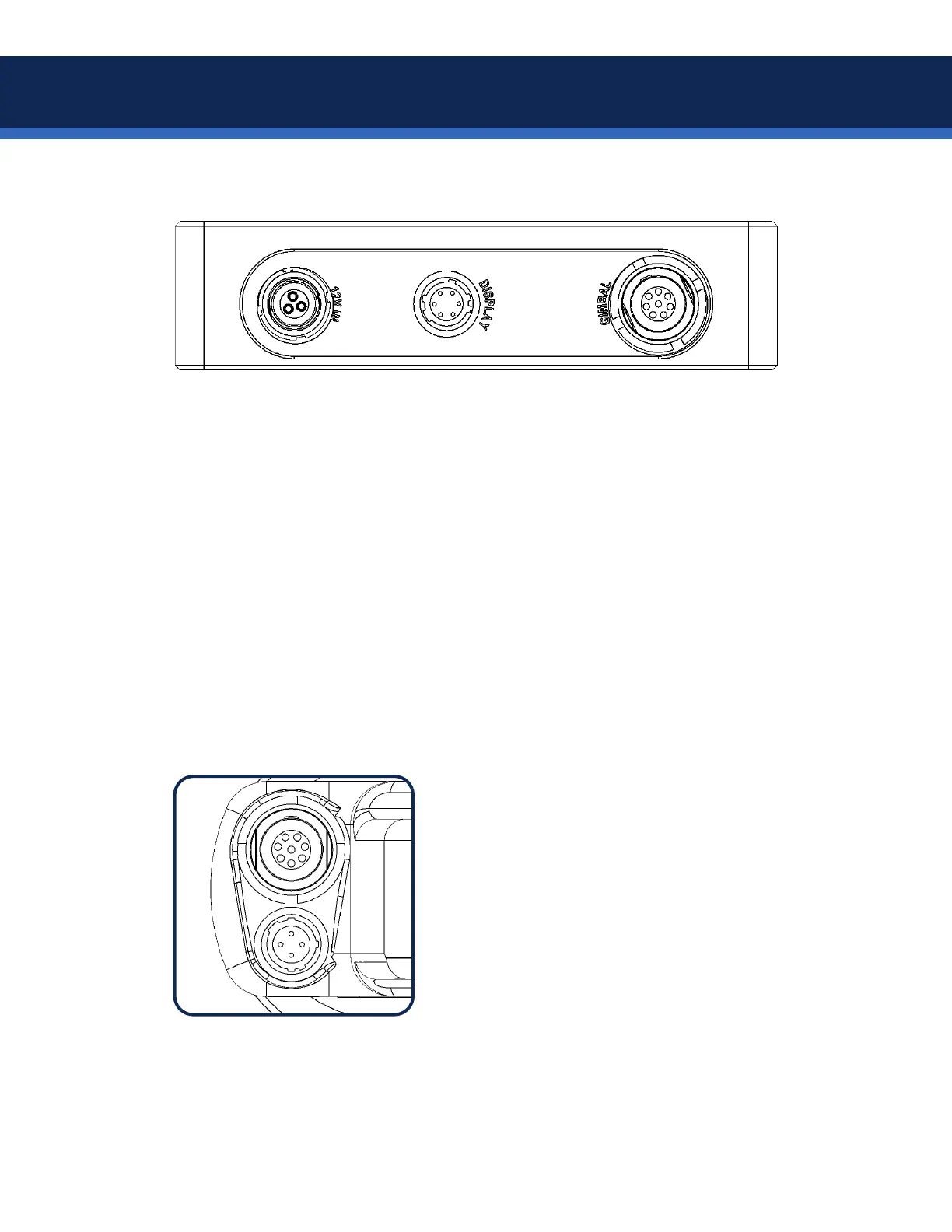

12V IN
LEMO ECG.0B.303.CLL
1- PWR GND
2- 11-17Vdc
3- n/c
DISPLAY
HIROSE HR10-7R-6S73
1- VCC 5V
2- LED DATA
3- LED CLK
4- GP6
5- SIG GND
6- SIG GND
GIMBAL
LEMO ECG.1B.308.CLL
1- PWR GND
2- 11-17VDC
3- SIG GND
4- GP3
5- SIG GND
6- GP4
7- SIG GND
8- GP5
GIMBAL
LEMO ECG.1B.308.CLL
1- PWR GND
2- 11-17VDC
3- SIG GND
4- GP3
5- SIG GND
6- GP4
7- SIG GND
8- GP5
PAN ENCODER:
HIROSE HR10-7R-4S(73)
1 - PHASE A
2 - PHASE B
3 - VCC 5V
4 - GND
Electronics
