Page 13 of 39
73085 Rev E
®

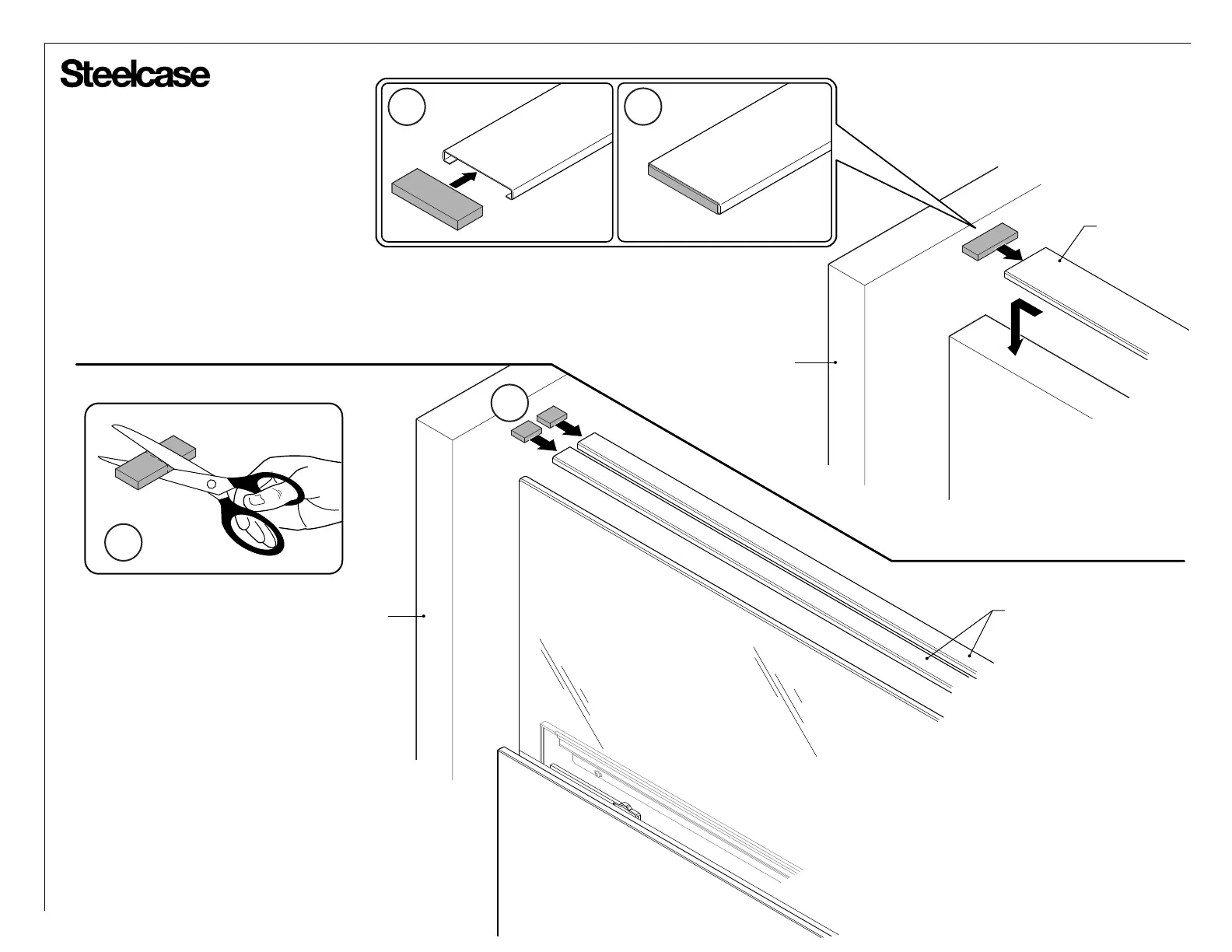

Thin Trim
1. Compress foam block and insert
into end of top trim so that it protrudes
out enough to fill any gap between
trim and boundary screen.
THIN TOP TRIM
1a
1b
Frameless Glass
1. Cut foam block in half.
2. Compress block halves and insert
into openings in end of top trim so
that they protrude out enough to fill
any gaps between trim and
boundary screen.
1
BOUNDARY SCREEN
FRAMELESS GLASS
TOP TRIM
BOUNDARY SCREEN
2
To Next Page
