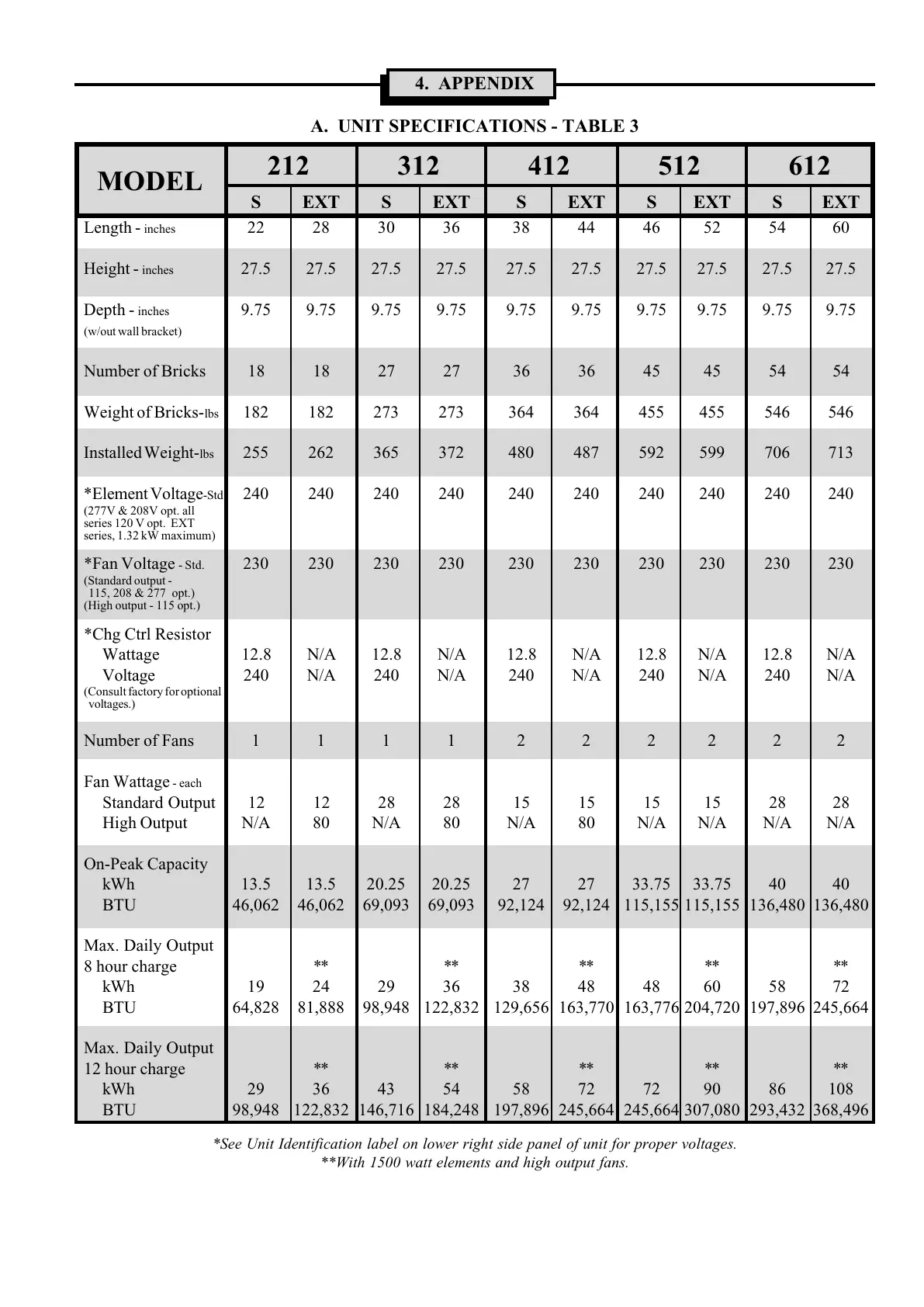

4. APPENDIX
A. UNIT SPECIFICATIONS - TABLE 3
*See Unit Identification label on lower right side panel of unit for proper voltages.
**With 1500 watt elements and high output fans.
MODEL
212 312 412 512 612
S EXT S EXT S EXT S EXT S EXT
Length - inches 22 28 30 36 38 44 46 52 54 60
Height - inches 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5
Depth - inches 9.75 9.75 9.75 9.75 9.75 9.75 9.75 9.75 9.75 9.75
(w/out wall bracket)
Number of Bricks 18 18 27 27 36 36 45 45 54 54
Weight of Bricks-lbs 182 182 273 273 364 364 455 455 546 546
Installed Weight-lbs 255 262 365 372 480 487 592 599 706 713
*Element Voltage-Std.240240240240 240240240240240240
(277V & 208V opt. all
series 120 V opt. EXT
series, 1.32 kW maximum)
*Fan Voltage - Std. 230 230 230 230 230 230 230 230 230 230
(Standard output -
115, 208 & 277 opt.)
(High output - 115 opt.)
*Chg Ctrl Resistor
Wattage 12.8 N/A 12.8 N/A 12.8 N/A 12.8 N/A 12.8 N/A
Voltage 240 N/A 240 N/A 240 N/A 240 N/A 240 N/A
(Consult factory for optional
voltages.)
Number of Fans 1111 222222
Fan Wattage - each
Standard Output 12 12 28 28 15 15 15 15 28 28
High Output N/A 80 N/A 80 N/A 80 N/A N/A N/A N/A
On-Peak Capacity
kWh 13.5 13.5 20.25 20.25 27 27 33.75 33.75 40 40
BTU 46,062 46,062 69,093 69,093 92,124 92,124 115,155 115,155 136,480 136,480
Max. Daily Output
8 hour charge ** ** ** ** **
kWh 19 24 29 36 38 48 48 60 58 72
BTU 64,828 81,888 98,948 122,832 129,656 163,770 163,776 204,720 197,896 245,664
Max. Daily Output
12 hour charge ** ** ** ** **
kWh 29 36 43 54 58 72 72 90 86 108
BTU 98,948 122,832 146,716 184,248 197,896 245,664 245,664 307,080 293,432 368,496
