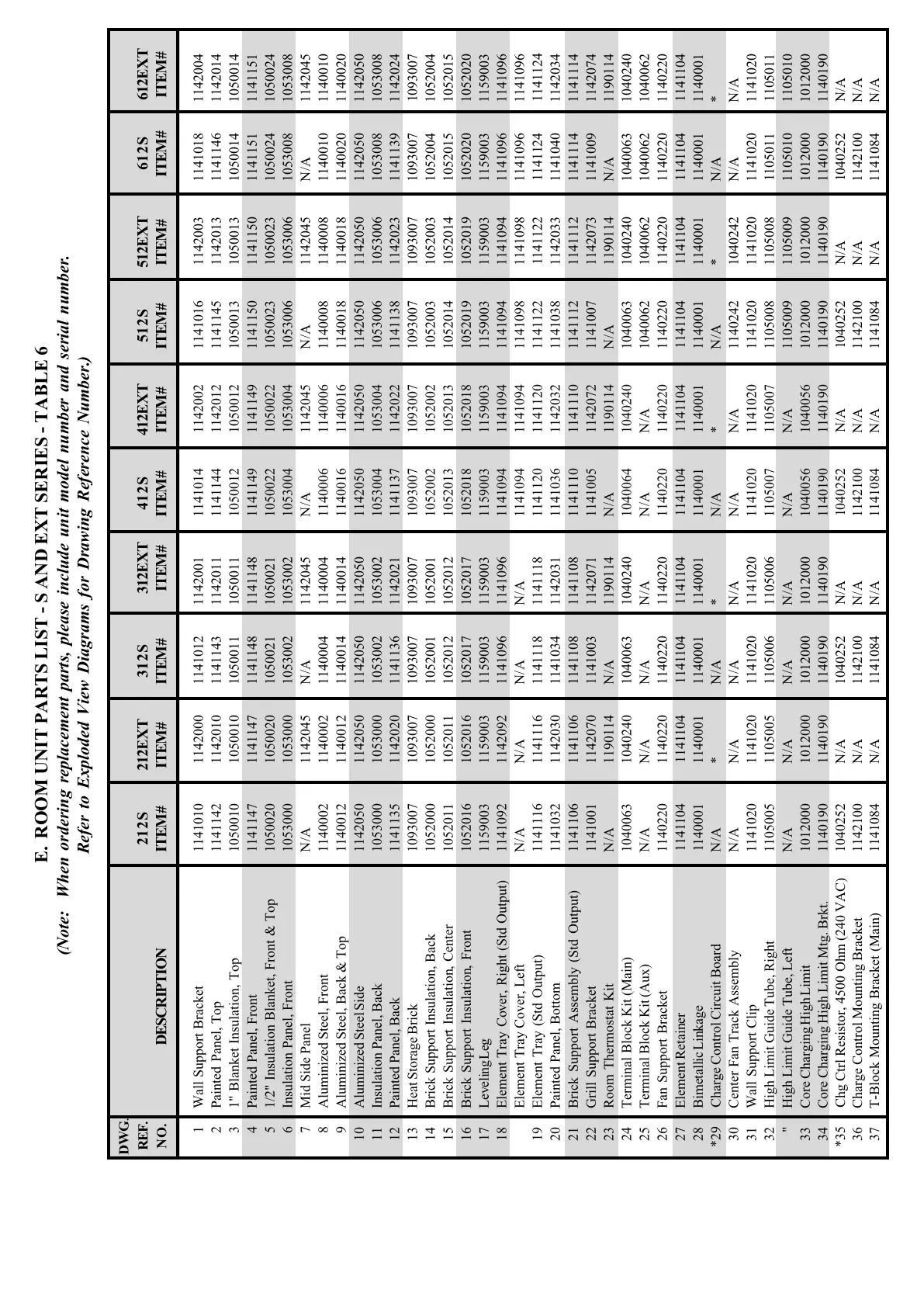

E. ROOM UNIT PARTS LIST - S AND EXT SERIES - TABLE 6
(Note: When ordering replacement parts, please include unit model number and serial number.
Refer to Exploded View Diagrams for Drawing Reference Number.)
DWG.
REF. 212S 212EXT 312S 312EXT 412S 412EXT 512S 512EXT 612S 612EXT
NO. DESCRIPTION ITEM # ITEM # ITEM # ITEM # ITEM # ITEM # ITEM # ITEM # ITEM # ITEM #
1 Wall Support Bracket 1141010 1142000 1141012 1142001 1141014 1142002 1141016 1142003 1141018 1142004
2 Painted Panel, Top 1141142 1142010 1141143 1142011 1141144 1142012 1141145 1142013 1141146 1142014
3 1" Blanket Insulation, Top 1050010 1050010 1050011 1050011 1050012 1050012 1050013 1050013 1050014 1050014
4 Painted Panel, Front 1141147 1141147 1141148 1141148 1141149 1141149 1141150 1141150 1141151 1141151
5 1/2" Insulation Blanket, Front & Top 1050020 1050020 1050021 1050021 1050022 1050022 1050023 1050023 1050024 1050024
6 Insulation Panel, Front 1053000 1053000 1053002 1053002 1053004 1053004 1053006 1053006 1053008 1053008
7 Mid Side Panel N/A 1142045 N/A 1142045 N/A 1142045 N/A 1142045 N/A 1142045
8 Aluminized Steel, Front 1140002 1140002 1140004 1140004 1140006 1140006 1140008 1140008 1140010 1140010
9 Aluminized Steel, Back & Top 1140012 1140012 1140014 1140014 1140016 1140016 1140018 1140018 1140020 1140020
10 Aluminized Steel Side 1142050 1142050 1142050 1142050 1142050 1142050 1142050 1142050 1142050 1142050
11 Insulation Panel, Back 1053000 1053000 1053002 1053002 1053004 1053004 1053006 1053006 1053008 1053008
12 Painted Panel, Back 1141135 1142020 1141136 1142021 1141137 1142022 1141138 1142023 1141139 1142024
13 Heat Storage Brick 1093007 1093007 1093007 1093007 1093007 1093007 1093007 1093007 1093007 1093007
14 Brick Support Insulation, Back 1052000 1052000 1052001 1052001 1052002 1052002 1052003 1052003 1052004 1052004
15 Brick Support Insulation, Center 1052011 1052011 1052012 1052012 1052013 1052013 1052014 1052014 1052015 1052015
16 Brick Support Insulation, Front 1052016 1052016 1052017 1052017 1052018 1052018 1052019 1052019 1052020 1052020
17 Leveling Leg 1159003 1159003 1159003 1159003 1159003 1159003 1159003 1159003 1159003 1159003
18 Element Tray Cover, Right (Std Output) 1141092 1142092 1141096 1141096 1141094 1141094 1141094 1141094 1141096 1141096
Element Tray Cover, Left N/A N/A N/A N/A 1141094 1141094 1141098 1141098 1141096 1141096
19 Element Tray (Std Output) 1141116 1141116 1141118 1141118 1141120 1141120 1141122 1141122 1141124 1141124
20 Painted Panel, Bottom 1141032 1142030 1141034 1142031 1141036 1142032 1141038 1142033 1141040 1142034
21 Brick Support Assembly (Std Output) 1141106 1141106 1141108 1141108 1141110 1141110 1141112 1141112 1141114 1141114
22 Grill Support Bracket 1141001 1142070 1141003 1142071 1141005 1142072 1141007 1142073 1141009 1142074
23 Room Thermostat Kit N/A 1190114 N/A 1190114 N/A 1190114 N/A 1190114 N/A 1190114
24 Terminal Block Kit (Main) 1040063 1040240 1040063 1040240 1040064 1040240 1040063 1040240 1040063 1040240
25 Terminal Block Kit (Aux) N/A N/A N/A N/A N/A N/A 1040062 1040062 1040062 1040062
26 Fan Support Bracket 1140220 1140220 1140220 1140220 1140220 1140220 1140220 1140220 1140220 1140220
27 Element Retainer 1141104 1141104 1141104 1141104 1141104 1141104 1141104 1141104 1141104 1141104
28 Bimetallic Linkage 1140001 1140001 1140001 1140001 1140001 1140001 1140001 1140001 1140001 1140001
*29 Charge Control Circuit Board N/A * N/A * N/A * N/A * N/A *
30 Center Fan Track Assembly N/A N/A N/A N/A N/A N/A 1140242 1040242 N/A N/A
31 Wall Support Clip 1141020 1141020 1141020 1141020 1141020 1141020 1141020 1141020 1141020 1141020
32 High Limit Guide Tube, Right 1105005 1105005 1105006 1105006 1105007 1105007 1105008 1105008 1105011 1105011
" High Limit Guide Tube, Left N/A N/A N/A N/A N/A N/A 1105009 1105009 1105010 1105010
33 Core Charging High Limit 1012000 1012000 1012000 1012000 1040056 1040056 1012000 1012000 1012000 1012000
34 Core Charging High Limit Mtg. Brkt. 1140190 1140190 1140190 1140190 1140190 1140190 1140190 1140190 1140190 1140190
*35 Chg Ctrl Resistor, 4500 Ohm (240 VAC) 1040252 N/A 1040252 N/A 1040252 N/A 1040252 N/A 1040252 N/A
36 Charge Control Mounting Bracket 1142100 N/A 1142100 N/A 1142100 N/A 1142100 N/A 1142100 N/A
37 T-Block Mounting Bracket (Main) 1141084 N/A 1141084 N/A 1141084 N/A 1141084 N/A 1141084 N/A
