Using with an iOS device
UR-RT4 / UR-RT2 Operation Manual
31

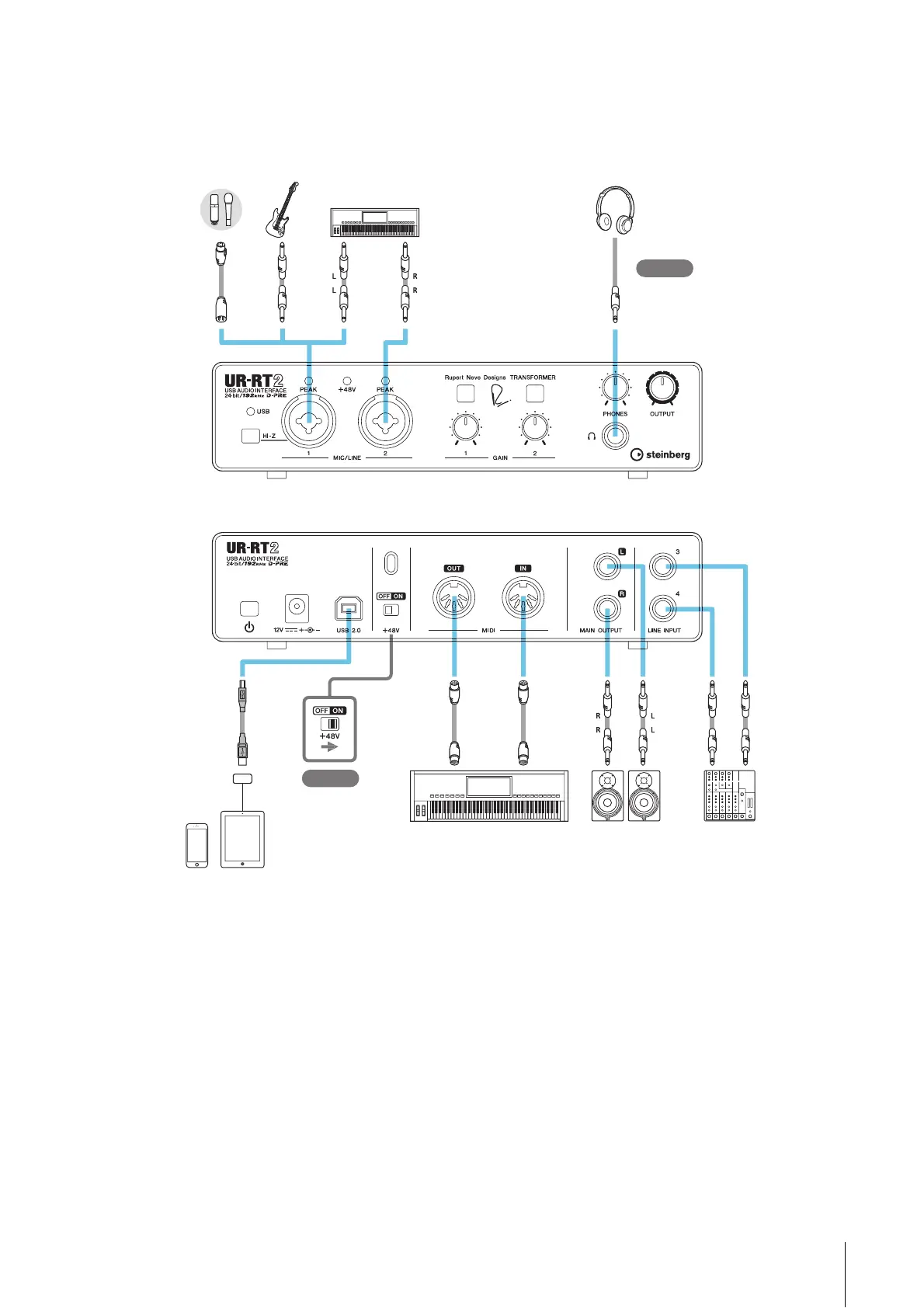

Connection Example UR-RT2
NOTE
• AppleiPadCameraConnectionKitorLightningtoUSBCameraAdapterarerequiredwhenconnectingtheUR-RTwithan
iOSdevice.
• ForthelatestinformationoncompatibleiOSdevices,refertotheSteinbergWebsitebelow.
http://www.steinberg.net/
Set all volume levels to minimum
before connecting or disconnecting
the external device.
Check!
Synthesizer/MIDI keyboard
Monitor speakers
Headphones
Rear panel
Front panel
Microphone Guitar
Keyboard
Mixer
When using the
condenser microphone,
turn the switch on
after connecting it.
(Turn the switch off
before disconnecting it.)
Check!
iPad
Apple iPad Camera
Connection Kit/
Lightning to
USB Camera Adapter
iPhone
