Chapter 6 - Installation
6-2

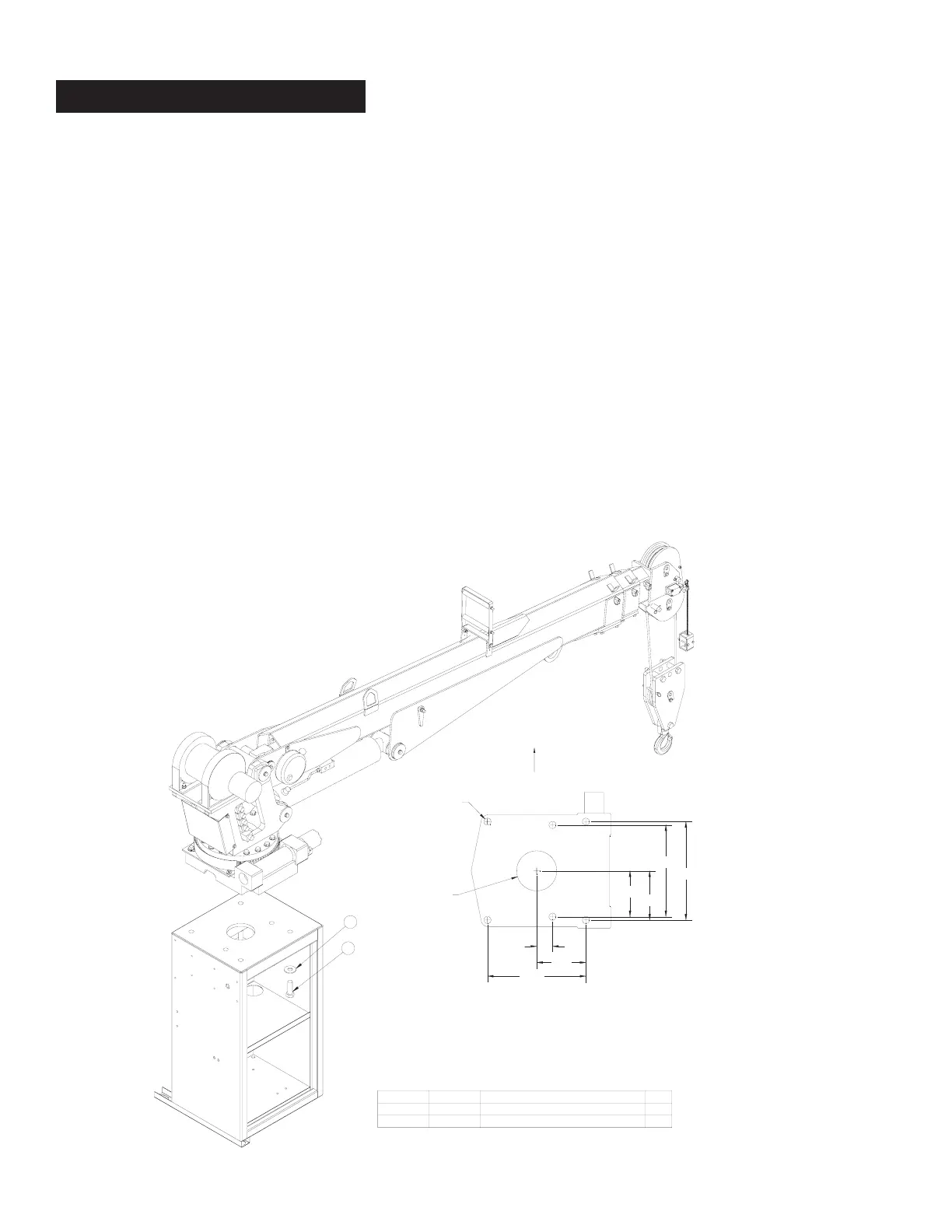

Installation Overview
WASHER 1.00 FLAT ZINC
CAP SCR 1.00X8X3.00 HHGR8 ZY
DESCRIPTIONPART NO.ITEM NO.
2
1
1443
5199
QTY.
6
6
1
2
FRONT
Motor
Hole Mounting Detail
Ø1.063
6.88
13.75
2.38
7.38
14.75
7.38
14.75
6 Places
Ø6.00
1. Determine that the mounting location for the 9628 crane is at least 20” x 21” (50.8 x 50.8 cm).
2. Use the detail on page 6-2 to drill 1.06” diameter holes into the mounting plate. Run tap on the threads of the base to
be sure they are clean.
3. Use a crane or lifting device capable of lifting the weight of the Stellar crane. The Stellar 9628 weighs approximately
2850 lbs (1295 kg). Note: cranes are shipped with rotation positioned at 200 degrees of 400 degree system. This
will allow for easy installation of the crane and permanent connection of all hydraulic and electrical components prior to
repositioning into the crane saddle.
4. Connect straps or chain from the lifting device to the lifting rings on the Stellar 9628.
5. Use six (6) 3” x 1” #8 bolts and six (6) #8 flat washers.
6. Install a washer on each bolt.
7.
Apply Loctite Thread locker #277 to the bolts.
8. Using the lifting device, lower the Stellar 9628 just above the crane compartment and start the bolts. Have someone
assist in leveling the crane. Note: the rotation motor should be to the door side of crane compartment and the
boom should be extended back over the rear bumper
.
9. Secure the crane using the mounting hardware provided (see the detail on page 6-2). Note: longer or shorter cap
screws may be required – recommended thread engagement into crane base is 1.75” – use grade 8, zinc
plated cap screws only.
10. Torque the cap screws to 680 ft-lbs.
1
1. Remove supporting crane.
12. Hook-up hydraulics and electrical using the schematics provided in
Chapter 8 - Hydraulics - Electrical
. Note: If
questions should arise during any portion of this installation, please contact Stellar Customer Service at
(800) 321-3741.
