1. Engage the PTO
A. Engage the parking
brake.
B. Place the
transmission in the
Neutral position.
C. Make certain the
PTO switch is in the
‘off’ position.
D. Start the vehicle engine.
E. Depress the clutch on manual transmission
vehicles.
F. Engage the PTO switch for cable and air
type shifters. Turn on dash switch for
electrical operated style. Consult vehicle
owner’s manual for location and operation of
OEM style in-dash PTO switch.
G. Slowly release the clutch on a manual
transmission vehicle.
H. Warm engine and hydraulic system oil. Let
system run for 10-20 minutes for warm-up.
This is especially important in cold weather.
I. Proceed with the outrigger and crane
operation.
2. Turn on Power to Crane
Activate power to the crane and outriggers.
The power switch is located on the control
panel in the vehicle cab.
3. Position Outriggers
Once the PTO is engaged, extend the
outriggers using the control levers or switches
marked ‘outrigger
’. These may be located on
the crane base or in the compartment under
the crane. See photo below.
2-1
Chapter 2 - Operation
Chapter 2 - Operation

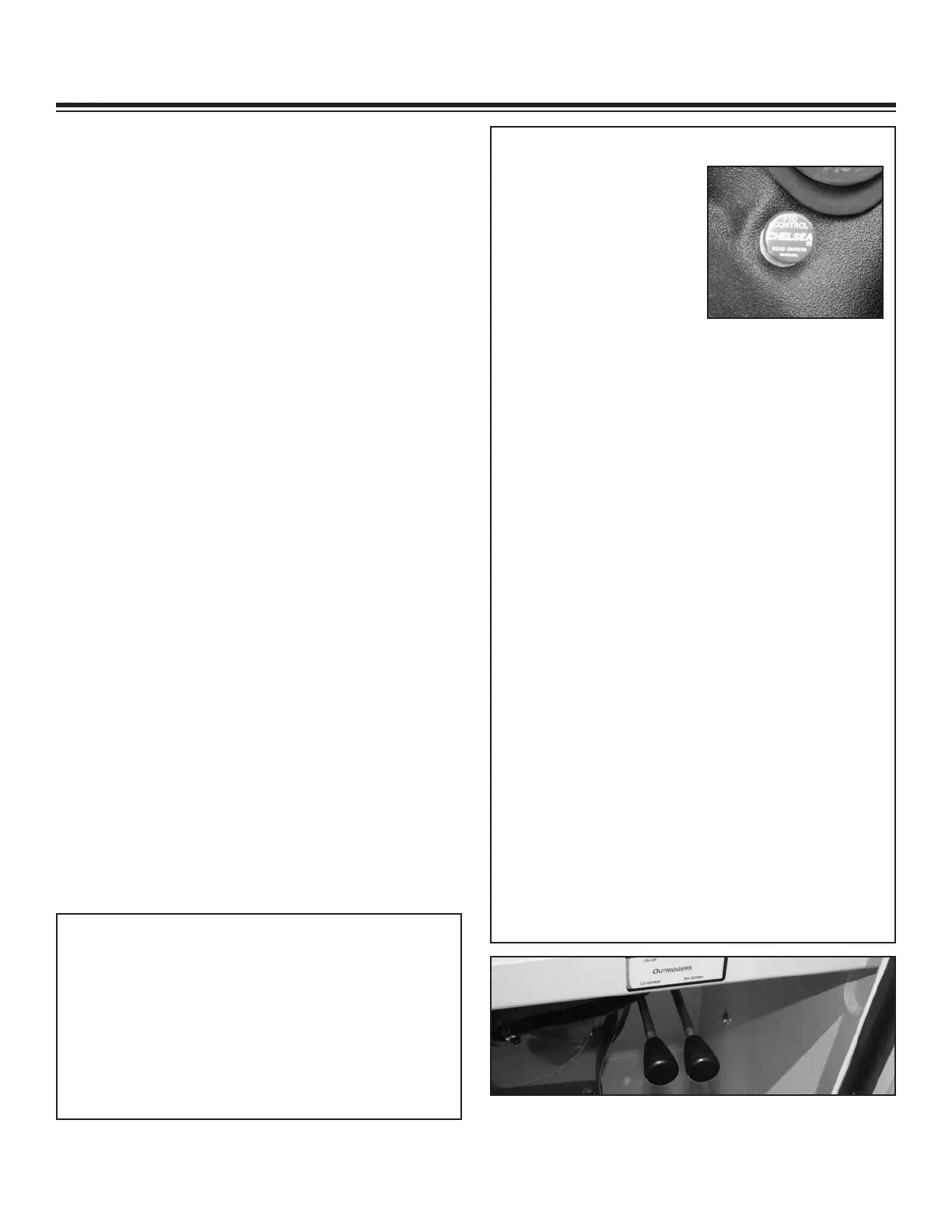

PTO Switch
Outrigger control panel, located in the crane compartment.
Job-Site Set-Up
Thoroughly plan the lift before positioning
the vehicle. Consider the following:
1. The vehicle should be positioned in an area
free from overhead obstructions to eliminate the
need for repositioning.
2. Position the vehicle so that it is impossible for
any portion of the equipment to come within the
minimum required safe distance of any power
line. Maintain a clearance of at least 10 feet
between any part of the crane, load line, or load,
and any electrical line or apparatus carrying up to
50,000 volts. One foot additional clearance is
required for every additional 30,000 volts or less.
Remember to allow for winds that cause power
lines to sway. It is recommended that a signal
person be used when the vehicle is set-up near
power lines.
3. The vehicle should also be positioned on a firm
and level surface that will provide adequate
support for the outrigger loading. Use extreme
caution when setting up near overhanging banks
or excavations.
4. The parking break must be set on the vehicle
and the drive axle disengaged before performing
a crane operation.
5. The outriggers must be extended to stabilize
the truck before beginning operation.
Unit Operation Overview
1. Engage the PTO
2. Turn on Power to Crane
3. Position Outriggers
4. Operate Crane
5. Store Outriggers
6. Turn Off Power to Crane
7. Disengage the PTO
