INSSTCNP15MA0914
6
thermostat). For connections with aluminum wires, you must
use CO/ALR connectors. Please note that thermostat wires
do not have polarity, meaning that any wire can be connected

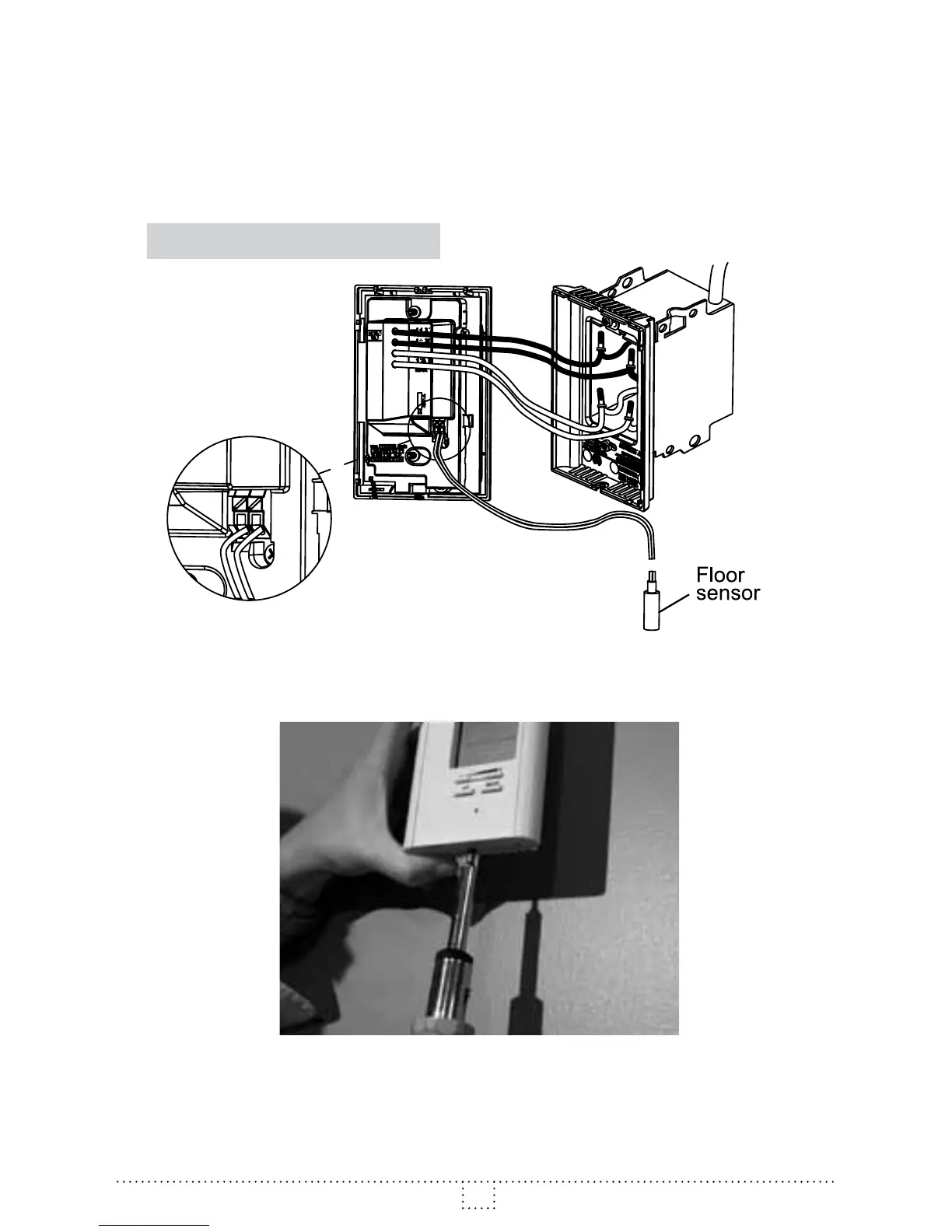

to the other. Then, connect the wires of the oor temperature
sensor at the indicated location behind the thermostat.
6. Reinstall the front part of the thermostat on the mounting
base and tighten the screw at the bottom of the unit.
7. Turn on the power.
8. Set the thermostat to the desired setting (see the following
section).
4-WIRE INSTALLATION
