650/800/850 GUEPARD

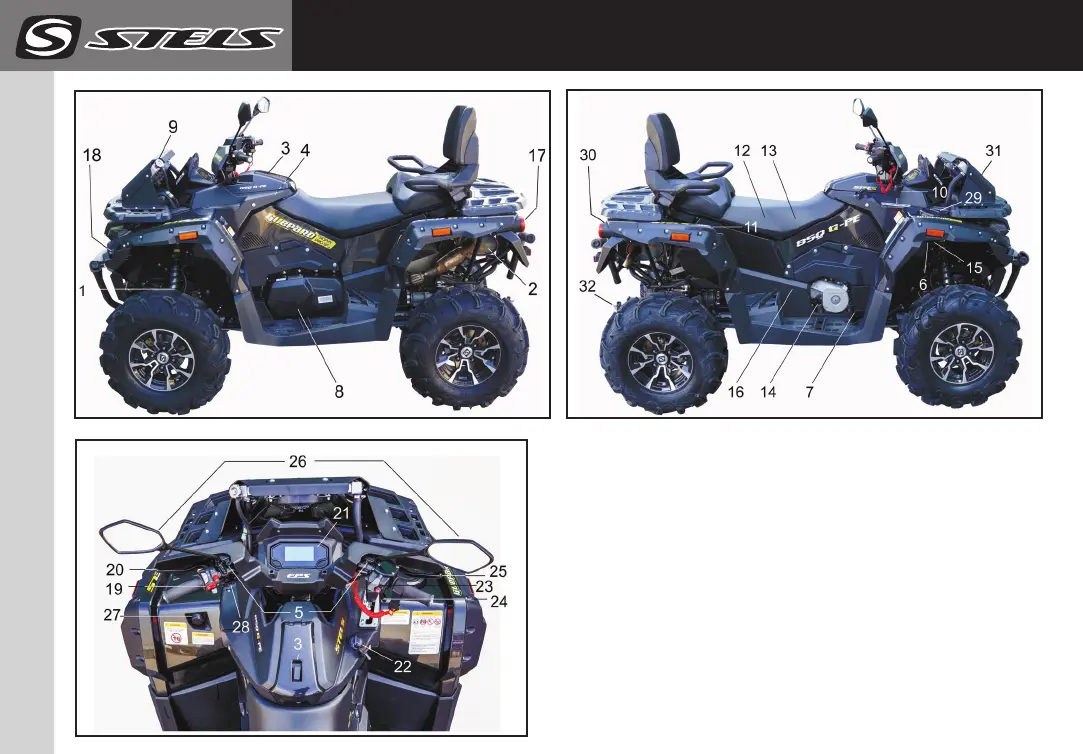

GETTING FAMILIAR
1. Rigidity adjustment nut
2. Deafener
3. Trunk compartment and
tool kit
4. Air filter
5. Hand-brake fluid tank
6. Brake fluid tank
7. Brake pedal
8. Variator belt casing
9. Radiator cap
10. Transmission control
lever
11. Fuel tank cap
12. Accumulator
13. Fuses
14. Engine oil level probe of
the front shock absorber
15. Expansion tank
16. Transmission breather
17. Rear turn indicators
18. Front turn indicators
19. Switch unit (left)
20. Hand-brake lever (left)
21. Dashboard
22. Ignition switch of foot brake
23. Switch unit (right)
24. Throttle lever arm
25. Hand-brake lever (right)
26. Rear-view mirror
27. 12 V electric connector №1
28. Winch control unit
29. Glove box
30. 12 V electric connector №2
31. Additional radiator
32. Tie hitch
