76
650/800/850 GUEPARD
PANELS REMOVAL
Panel removal and installation
The panels listed below should be removed to
perform some maintenance operations described
in this section. To remove the panels:
1. Unscrew securing bolts
2. Remove the panels

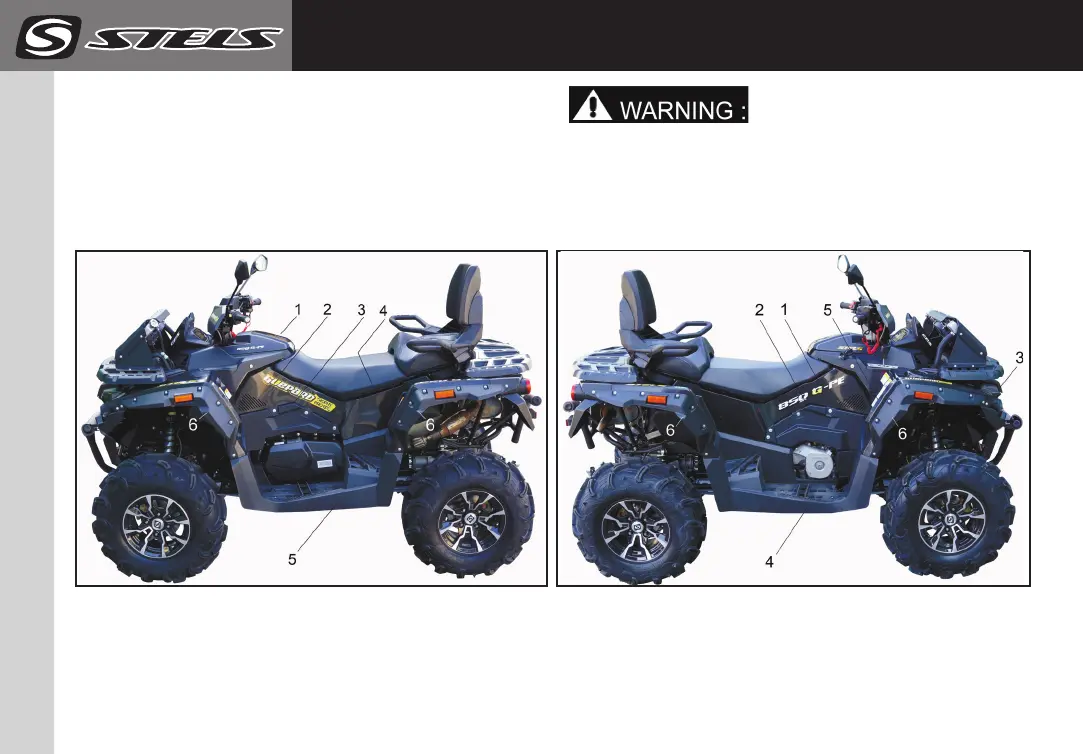

1. Glove compartment in front of the driver
2. Left side face panel
3. Left engine face panel
4. Rear body face panel
5. Left foot rest
6. Mudguard set
___________________________
When installing the panels on the vehicle
control the electric wiring and piping
position. Do not let the panels and fixture
elements bind or damage the electric wire
harness or piping.
1. Right side face panel
2. Right engine face panel
3. Decorative hood panel
4. Right foot rest
5. Front body face panel
The panels are installed in the reverse order
manufacture website : stelsoffroad.com
TRUNK REMOVAL 650/800/850 GUEPARD
77
Foot rest removal
To remove foot rests:
1. Unscrew the screws attaching the foot rests to
the frame.
2. Unscrew the screws attaching the foot rest to the
front and rear wings.
3. Remove the foot rest, overcoming the force of
wing locating pins.
1. Screws attaching the foot rest to the metal
frame.
2. Screws attaching the foot rest to the front
and rear wings.
Trunks removal
To remove the front trunk:
1. Remove the radiator bracket mounting screws
(4 pieces) and move the radiator aside.
2. Unscrew the screws attaching the front trunk
frame studs (4 pieces).
3. Remove the front trunk in the frame assembly.
1. Radiator bracket mounting screws.
2. Screws attaching the trunk frame studs.
NOTE:___________________________________
Removal and installation of the rear trunk is
carried out in the same way.
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
manufacture website : stelsoffroad.com
