Stels 650 GUEPARD - Footrest Removal and Installation; Trunk Removal and Installation

TRUNK REMOVAL 650/800/850 GUEPARD
77
Foot rest removal
To remove foot rests:
1. Unscrew the screws attaching the foot rests to
the frame.
2. Unscrew the screws attaching the foot rest to the
front and rear wings.
3. Remove the foot rest, overcoming the force of
wing locating pins.

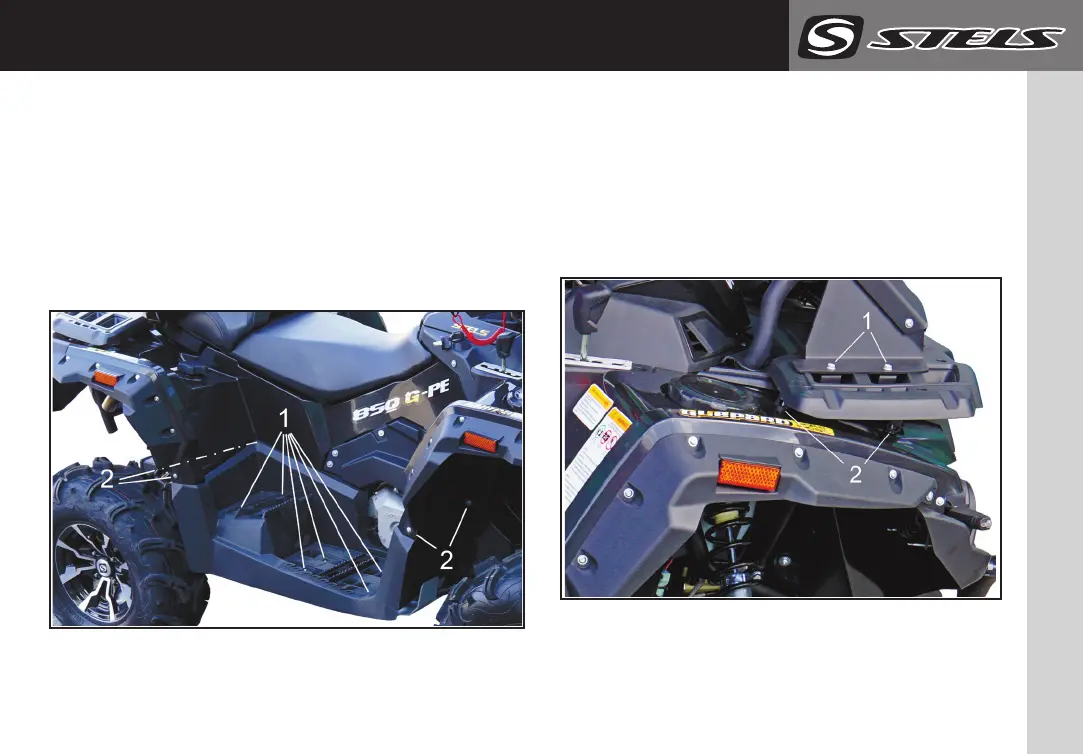

1. Screws attaching the foot rest to the metal
frame.
2. Screws attaching the foot rest to the front
and rear wings.
Trunks removal
To remove the front trunk:
1. Remove the radiator bracket mounting screws
(4 pieces) and move the radiator aside.
2. Unscrew the screws attaching the front trunk
frame studs (4 pieces).
3. Remove the front trunk in the frame assembly.
1. Radiator bracket mounting screws.
2. Screws attaching the trunk frame studs.
NOTE:___________________________________
Removal and installation of the rear trunk is
carried out in the same way.
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
